Taiwan Multiple Station High Speed nuts and bolts making machines 36B6S Nut bolt nut making machine Products from Dongguan Songwei Machinery And Metal Product Co., Ltd.

Product Details

Supply Ability:	5 Set/Sets per Year;	Local Service Location:	None;
Application:	Nut Bolt Forging;	Weight:	66T;
Machinery Test Report:	Provided;	Forging station:	6 NO.;
After Warranty Service:	Video technical support,Online support;	Type:	Fully Automatic;
Marketing Type:	Hot Product 2019;	Cut-off Dia. Max:	36mm;
Certification:	ISO CE;	Forging Power:	450Ton;
Packaging Detail:	Each set is wrapped with stretch film and packed in a wooden case with standard export packing. Or according to customer's requirements and needs.;	Capacity:	60-70pcs/min;
Port:	SHENZHEN;	Power:	130KW;
Color:	Requirement;	Condition:	New,New;
Brand Name:	SONGWEI;	Applicable Industries:	Machinery Repair Shops,Energy & Mining;
Key Selling Points:	Easy to Operate;	Machine Type:	NEW;
Warranty of core components:	1 Year;	Dimension(LWH):	6.53.52.6m;
Voltage:	380V 50Hz 3Phase/Customized,3 Phase 380V 10%/50-60Hz;	Video outgoing-inspection:	Provided;
Warranty:	12 Months;	Payment Terms:	L/C,D/P,T/T,Western Union;
Cut-off Length Max:	55mm;	Place of Origin:	Guangdong China;
Showroom Location:	None;	Core Components:	Engine,Bearing,Motor;

Product Description

1.Machine parameters

MODEL	SW-NF-36B6S Cold Heading Machine
FORGING STATION	6S
CUT-OFF DIA (MAX)	36mm
CUT-OFF LENGTH (MAX)	55mm
FORGING POWER	530
PRODUCT SIZE (MM)	5/8 1 16/24
OUTPUT PCS/MINUTE	70
LUBRICANT (GALLON)	750
APPROX.WT (TON)	66
FLOOR AREA (LWH) (M) REQUIRED (M)	6.5 3.5 2.6

2.Machine Application

Used in manufacture of : Normal nuts, Extra thick nut, Flanged nut, Motorcycle link pin, Oil Plug screw, Hex socket lockup nut, Square nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle shaped Spare Parts, Some rivets, Non-standard fastener, etc. It is the most widely used.

3.Main Features

NO.1.The machine body and main sliding block are processed through stress relieving after being forged to prevent from deformation and ensure durable mechanical stabolity.

NO.2.Machine body of high alloy steel imported is prossed through quenching treatment to ensure lasting resistance to wearing.

NO.3.Eash cam is precisely designed with computer and made in CNC process center to ensure correct and smooth cam common normal.

NO.4.Applying air compressor clutch,smooth and steady start current brake,realization of inching,single stroke and continuous running,besides inching way,main sliding block will stop at the utmost point ehen the machine stops every time to provide max. operation space.

NO.5.Circumferential flushing trimming.

NO.6.Synchronic reverse of plunger die ejecting with primary slipway to ensure the product shall be temporarily kept in the plunger die and prenvent from falling our by the plunger die.

NO.7.We can attach with frequency converter with stepless speed control.

NO.8.PLC digital control inspection device enabling automatic inspection of the working state and failure alarming display.

NO.9.Tongs of swing type and rotary type provide with pneunatic mechanism, clamping stably.

NO.10. Running in a high automatization and intellectualization,no pollution

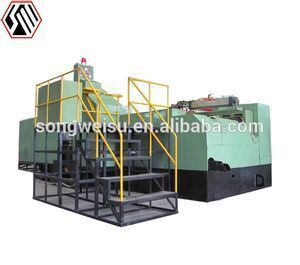

4.Machine Photos
