| Power: | Electric; | Package Preview: | ; |
| Brand Name: | YATIAN; | Battery: | 6V *16pcs; |
| Supply Ability: | 50 Piece/Pieces per Month; | Max. Speed: | 30km/h; |
| Port: | Nansha; | Range: | 90-100km; |
| Place of Origin: | Guangdong China; | Climbing ability: | 20%; |
| Gross Weight: | 3670kg; | Payment Terms: | L/C,T/T,Western Union; |
| Passenger capacity: | 23 Seats; | Dimension(mm): | 5370*1730*2250mm; |
| Motor: | 96V/8. 5KW; | Kerb Weight: | 2400kg; |
| Packaging Detail: | Iron frame and wooden box packaging; |

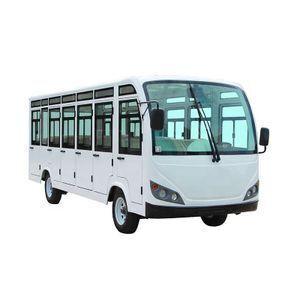

Hot sale sightseeing bus electric 23 seats passenger tourist bus
| Performance: | |||
| Passenger capacity | 23 seats | Braking Distance | ≤7.0m |
| Max.Speed | 30 km/h | Min.Turning Radius | 7.0m |
| Endurance mileage | 90-100 km |
Min. Ground Clearance |
150 mm |
|
Climbing Ability (loaded) |
20% | Recharge time | 8~9h |
| Dimensions | |||
| L×W×H | 5370×1730×2250mm | Curb Weight | 2400 kg |
| F/R Tread | 1460/1460mm | Max. loading | 3670 kg |
| Axle Distance | 3050 mm | ||
| Standard Configurations | |||
| Motor | 96V/8. 5KW, (DC) motor | Battery |
Deep cycle power batteries 96V (6V *16pcs) -maintenance free 245Ah per unit
|
| Controller | 96V, Curtis | Body & Roof |
PP + alloy material |
