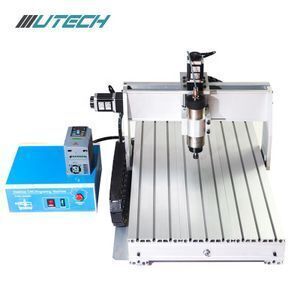

Mini cnc router 3040 engraving machine for milling PCB wood holes cnc router aluminum making

Product details
Control System Brand:Mach3;Track type:Chrome-plated liner bearing;
Local Service Location:Peru,Pakistan,India,Mexico,Russia,Thailand,UAE,Algeria;Spiral type:T-screw,diameter of 12mm,thread pitch 2mm;
Single gross weight:19.0 KG;Condition:New;
Package Preview:;Repeatability (X/Y/Z) (mm):0.01;
Certification:CE ISO9001;Machine Type:CNC Router;
No. of Spindles:Single;Selling Units:Single item;
Spindle motor:800w air cooled spindle;Positioning Accuracy (mm):0.1;
Travel (X Axis)(mm):300;After-sales Service Provided:Online support;
Warranty of core components:1 Year;Frame material:6061-T5 aluminiumalloy;
Warranty:1 Year;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
CNC or Not:CNC;Key Selling Points:Easy to Operate;
Range of Spindle Speed(r.p.m):11000 - 24000 rpm;Weight (KG):30;
Place of Origin:Shandong China;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Brand Name:UTECH;Power (kW):800;
Spindle Motor Power(kW):300W, 800W, 1500W, 2200W;Travel (Y Axis)(mm):400;
Showroom Location:Russia,Thailand,UAE,Algeria;Voltage:AC220V/50Hz;
Marketing Type:Hot Product 2019;Max working travel:XYZ=290*380*60MM;
Stepper driver:High performance, independent of each axis;Video outgoing-inspection:Provided;
Product name:Mini cnc router 3040 engraving machine small metal cutting;XYZ motor:Stepper motor JK57HS41-2004XB-01AF;
Control system:Mach3 controller;Working Table Size(mm):300×400;
Dimension(L*W*H):615*485*385mm;Positional accuracy:0.05mm;
Core Components:Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox;Single package size:48X34X28 cm;
Machinery Test Report:Provided;Packaging Detail:All Cnc Router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package. And the plywood is firm enough to protect the cnc machine during shipping.;

Mini cnc router 3040 engraving machine small metal cutting

Working area: 200*300mm, 300*400mm, 400*600mm

Spindle power: 300W, 800W, 1500W, 2200W

Axis: 3axis/4axis





Type

6040

3040

3020

Max working travel

XYZ=400*570*75mm

XYZ=290*380*60mm

XYZ=210*300*60mm

Machinable material thickness

≤100mm

≤70mm

≤70mm

Dimensions

750*570*390mm

525*400*290mm

440*310*290mm

Frame material

6061-T5 aluminium alloy

6061-T5 aluminium alloy

6061-T5 aluminium alloy

Track type

Chrome-plated + linear bearing

Chrome-plated + linear bearing

Chrome-plated + linear bearing

Spiral type

Ball screw, diameter of 16mm, Thread pitch 5mm

T-screw, diameter of 12mm, Thread pitch 2mm

T-screw, diameter of 12mm, Thread pitch 2mm

Ball screw, diameter of 12mm, Thread pitch 4mm

Ball screw, diameter of 12mm, Thread pitch 4mm

Mechanical resolution

XYZ axis:0.0025mm/step

XYZ axis:0.0025mm/step

XYZ axis:0.0025mm/step

PositionaI accuracy

0.05mm

0.05mm

0.05mm

Spindle motor

Frequency conversion spindle, 0.8kw

2-300W DC spindle

2-300W DC spindle

Revolving speed

24000rpm/min

11000rpm/min

11000rpm/min

Holder

ER11(3.175mm,6mm)

ER11(3.175mm,6mm)

ER11(3.175mm,6mm)

XYZ motor

Stepper motor JK57HS76-4204B-01AF

Stepper motor JK57HS41-2004XB-01AF

Stepper motor JK57HS41-2004XB-01AF

Stepper driver

High performance, independent of each axis

High performance, independent of each axis

High performance, independent of each axis

Feed rate

2000mm/min

1500mm/min

1500mm/min

Communication Interface

USB2.0

USB2.0

USB2.0

System requirement

WIN-XP or WIN-7

WIN-XP or WIN-7

WIN-XP or WIN-7

Instruction code

G code/.nc/.ncc/

.tab/.txt

G code/.nc/.ncc/

.tab/.txt

G code/.nc/.ncc/

.tab/.txt

Voltage

Input 85V-240VAC(400HZ)

Input 85V-240VAC(400HZ)

Input 85V-240VAC(400HZ)

Operating environment

Temperature: 5℃-40℃; Humidity: 35%-80%

Temperature: 5℃-40℃; Humidity: 35%-80%

Temperature: 5℃-40℃; Humidity: 35%-80%

Packaging size

45.8kg (86*62*48mm)

25.5kg(61.5*48.5*38.5 mm)

22kg(51*40*38.5mm)









Product Description:





1. Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves .

2. UTECH 3040 3axis 800W - is a professional mini- size machine with working area 300 x 400 mm (30 x 40 cm). Has the most powerful ruler in the spindle: XYZ. The spindle has a water cooling - it provides reliability and long service life.

3. Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.

4. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of

cutting (letters and labels , signs , models ) , drilling.





















How to use:



+

A picture shows the process of Cnc Router.

Step

Graphic Design













Tool Path Design







Controlling Software

Software

JDPaint, PS, CDR, CAD, UG, 3Dmax

JDPaint, Artcam

Mach3/Nc-studio

Carry Out

Plane anaglyph: Grayscale, JDPaint picture…

Fruit pit carving: stl.

Drill slot milling: DXF, dwg, plt

Set the parameters of knife road, material, cutter and motor, and export G code.

Export G code to control software, automatic processing.





Please see the English user manual to see how to set up the software and how to use this machine.

1. Assembling and locating the CNC machine on steady desk well.

2. Make sure that your computer has a on-board parallel port output.

3. Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4. Connecting the control box with the CNC machine and you computer.

5. Fllowing our manual or guideline to set uo the software.

6. You can enjoy making you dream with using our CNC machine now.



Accessories show









Product use:

A. Used in PVC, acrylic, organic glass, double color board, engineering plastic electric wood, solid wood and other soft metal materials.

B. Graphite electrode processing, carving PCB circuit board, wood model mold crafts.

C. 3d sculpture of aluminum alloy, copper and other metal materials according to the feed rate.

D. Can be used as a simple three-dimensional numerical control platform, such as numerical control point glue, numerical control positioning, metal marking.



The main types of treatment:

Etching

Cutting

3d- milling

Boring

Milling and engraving on a rotating axis.



Allows you to handle:

Wood

Plastic

Chipboard, MDF , plywood

Light metals (copper, aluminum , brass)



Main areas of application:

Advertising industry

Creative workshops

Jewelry / designer items

Merchandise

Interior and decor elements



































Company Information



Shandong U-MAY CNC Technology CO.,LTD.Specializes in the research, development, production of CNC MACHINE. Our brand "WIN" has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising,  craft gifts,  packaging and printing,  logo and etc. Our products have been exported to many  countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy "Integrity - based, constantly innovation,effective communication,quality services"and the goal of "Technical service customer",but also great attention to product design , manufacture , installation , adjustment. We will still try our best to maintain one stop professional service.





Production process



Packing list:


1× CNC 3040 Engravine machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors
1× Rotation axis(optional)
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us).













Packaging & Shipping





FAQ







FAQ:



1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail/ skype/ phone/ trademanager online service.

2) If machine have any problem after I receive it, how can I do?

Free parts send to you in machine warranty period.

3) MOQ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? (Very easy and flexible! )

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price, shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

F. Send your order by air or by sea.





If you're not sure how to choose proper type, could contact me freely.
