DPP-250 Semi Automatic Mini Tablet Blister Packing Machine

Supplier: Zhejiang Capsulcn Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Abaire Zhang
Price: $8999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	NINGBO;	Type:	Blister Packaging Machine;
Driven Type:	Electric;	metarial:	s.s304/s.s201/s.s316;
Capacity:	9600strip/h(depend on your size);	Brand Name:	CapsulCN;
Application:	Chemical,Food,Medical;	Max shaping areas and depth:	25012015mm;
PVC hard pieces:	0.15-0.4X260mm;	After-sales Service Provided:	Video technical support,Online support;
Stroke:	30-130mm(can be manufactured as user's requirements);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimension(LWH):	29007501600mm;	PTP Aluminum Foil:	0.02-0.015X260mm;
Automatic Grade:	Automatic;	Cutting Frequency:	15-45times/min);
Condition:	New;	Weight:	1200KG;
Certification:	ISO9001;	Standard Sheet:	80X57mm(can be manufactured as user's requirements);
Voltage:	380V/50Hz 220V/60Hz;	Packaging Detail:	wooden packing 29007501600mm 1200KG;
Warranty:	1 Year;	Supply Ability:	30 Set/Sets per Month;
Packing Material:	PVC+Alu / Alu+Alu;	Place of Origin:	Zhejiang China (Mainland);
Air Pressure:	0.4-0.6kw;

Product Description

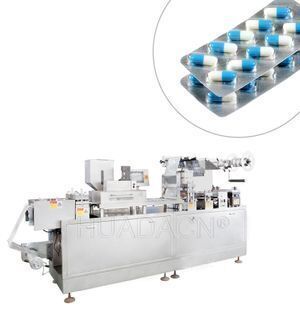

Flat type Aluminum Plastic Blister Packing Machine

Blister packaging machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine boby, easy operation, multi function, stroke adjustable, long durability etc.

Tablet blister packaging machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.

Aided forming Precutting Inspection and rejecting control systems. Print mark registration Automatic feeder.

Specifications

Model	DPP-110	DPP-150	DPP-250
Cutting Frequency	10-33 times/min	10-35 times/min	15-45 times/min
Capacity	1980strip/h	4200strip/h	9600strip/h
Max shaping areas and depth	90x115x26mm	130x100x26mm	250x120x23mm
Air Pressure	0.6-0.8Mpa	0.4-0.6Mpa	0.6-0.8Mpa
Power Supply	380V/220V 50Hz 2.4kw	380V/220V 50Hz 3.8kw	380V/220V 50Hz 8kw
Main motor power	0.75kw	1.5kw	1.5kw
PVC hard pieces	0.15-0.5*110mm	0.15-0.5*150mm	0.15-0.4*260mm
PTP Aluminum Foil	0.02-0.035*110mm	0.02-0.035*150mm	0.02-0.015*260mm
Dialysis Paper	50-100g*110mm	50-100g*150mm	50-100g*250mm
Mould Cooling	tap water or back water	tap water or back water	tap water or back water
