Industrial Mini Multi Cyclone Powder Dust Collector details
Material:Carbon Steel;Local Service Location:None;
Minimum Particle Size:0.3Micron;Structure:Box-type;
Machinery Test Report:Provided;Marketing Type:New Product 2020;
OEM:yes;Product name:Cyclone Dust Collector;
AIr Volume:750-1060 m3 / h;Color:custom;
Supply Ability:100 Set/Sets per Year Cyclone Powder Dust Collector;Warranty of core components:1 Year;
After-sales Service Provided:Online support;Port:TIANJIN;
Packaging Detail:1.standard sea transport or as per customer's requirement 2. The whole equipment is wrapped with moisture-proof film. 3The motor and other parts are packed in wooden cases 4. Fix the equipment in the container with bolts;Sample:pay for sample;
Video outgoing-inspection:Provided;Certification:ISO9001;
Place of Origin:Hebei China;ODM:yes;
Core Components:Pump;After Warranty Service:Video technical support,Online support,Spare parts;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Application:dust filtration,air purification;
Brand Name:YITE;Showroom Location:None;
Dimension(L*W*H):460*390*1380(m'm);Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;

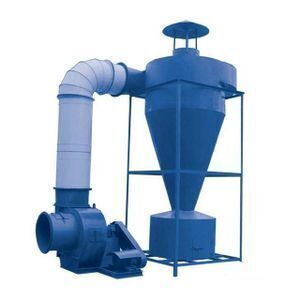

           Industrial Mini Multi Cyclone Powder Dust Collector

Cyclone Powder Dust Collector has higher collection ability to dust with larger specific gravity and thicker particles. According to the concentration of dust, the thickness of dust particles can be used as primary dust removal or single-stage dust removal respectively, for corrosive dust-containing gas and high-temperature dust-containing gas, it can also be collected and recycled.

dust separator equipment cyclone dust extractor is widely used in metallurgy, casting, building materials, chemical industry, grain, cement, petroleum, light industry and other industries. It can be used as recycled material equipment to supplement dry non-fibrous particle dust and dust removal.


We will design Cyclone dust collector of appropriate specifications for you according to the working conditions provided    by you. The following are the conventional models we have in stock for your reference:




Air volume(m³/h) highly(mm)

Air inlet

no flange


no flange


no stents



normal max With stents no stents
 YTXF-280  280  600 1000   800 -200  φ108  φ140  15  2
 YTXF-400 400   1300 2000   1600   -400    φ160-200  φ200  45  2
 YTXF-500 500   2000  3200  2000  φ200-250  φ250  65  2
 YTXF-600 600   3200  4600  2400      -800       φ250-300  φ300  95  2
 YTXF-800 800   4600 8200   3200  φ300-400  φ400  190  2.5
 YTXF-1000 1000   8200  12000  4000  φ400-500  φ500  310  2.5
 YTXF-1200 1200   12000  18000  4800  φ500-600  φ600  430  2.5
 YTXF-1300 1300   18000  21000  5200  φ600-650  φ650  520  2.5



1. There are no moving parts inside the cyclone dust collector. Convenient maintenance.
2. When dealing with large air volume, it is convenient for multiple units to be used in parallel, and the efficiency resistance will not be affected.
3.dust separator equipment cyclone dust extractor can resist high temperature of 600℃. If special high temperature resistant materials are used, it can also resist higher temperature.
4. After the dust collector is equipped with wear-resistant lining, it can be used to purify the flue gas containing high abrasive dust.
5, can dry ash, is conducive to recycling valuable dust.


Material:Carbon Steel;Local Service Location:None;Minimum Particle Size:0.3Micron;Structure:Box-type;Machinery Test Report:Provided;Marketing Type:New
above is detail introduction of Industrial Mini Multi Cyclone Powder Dust Collector, include price, model, picture and supplier of Industrial Mini Multi Cyclone Powder Dust Collector.
