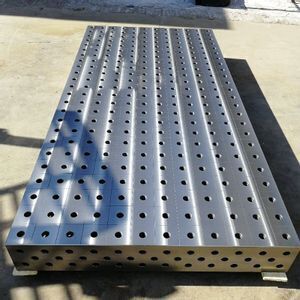

3D Welding Tables and its related fixing and clamping accessories
-
Supplier: Botou City Jinmin Machinery Manufacturing Co., Ltd. -
Region: Hebei, China -
Contact: Ms xue feng -
Price: $8.00 /piece -
Min. Order: 1 piece
| Roughness: | Ra1.6; | Plate thickness: | 25mm; |
| Supply Ability: | 10 Piece/Pieces per Week; | After-sales Service Provided: | Overseas service center available; |
| Place of Origin: | Hebei China; | Model Number: | JM-D28-1010; |
| Brand Name: | JIN MIN; | weight: | 450kg; |
| Port: | Tianjin port; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Grid line: | 100*100; | series: | D28; |
| Texture of material: | HT-300; | Hole spacing: | 100±0.03; |
| Packaging Detail: | All wooden packing boxes conforming to export signs; | Flatness: | 0.05mm/1㎡; |
| Casting process: | Chemical hard sand casting; |

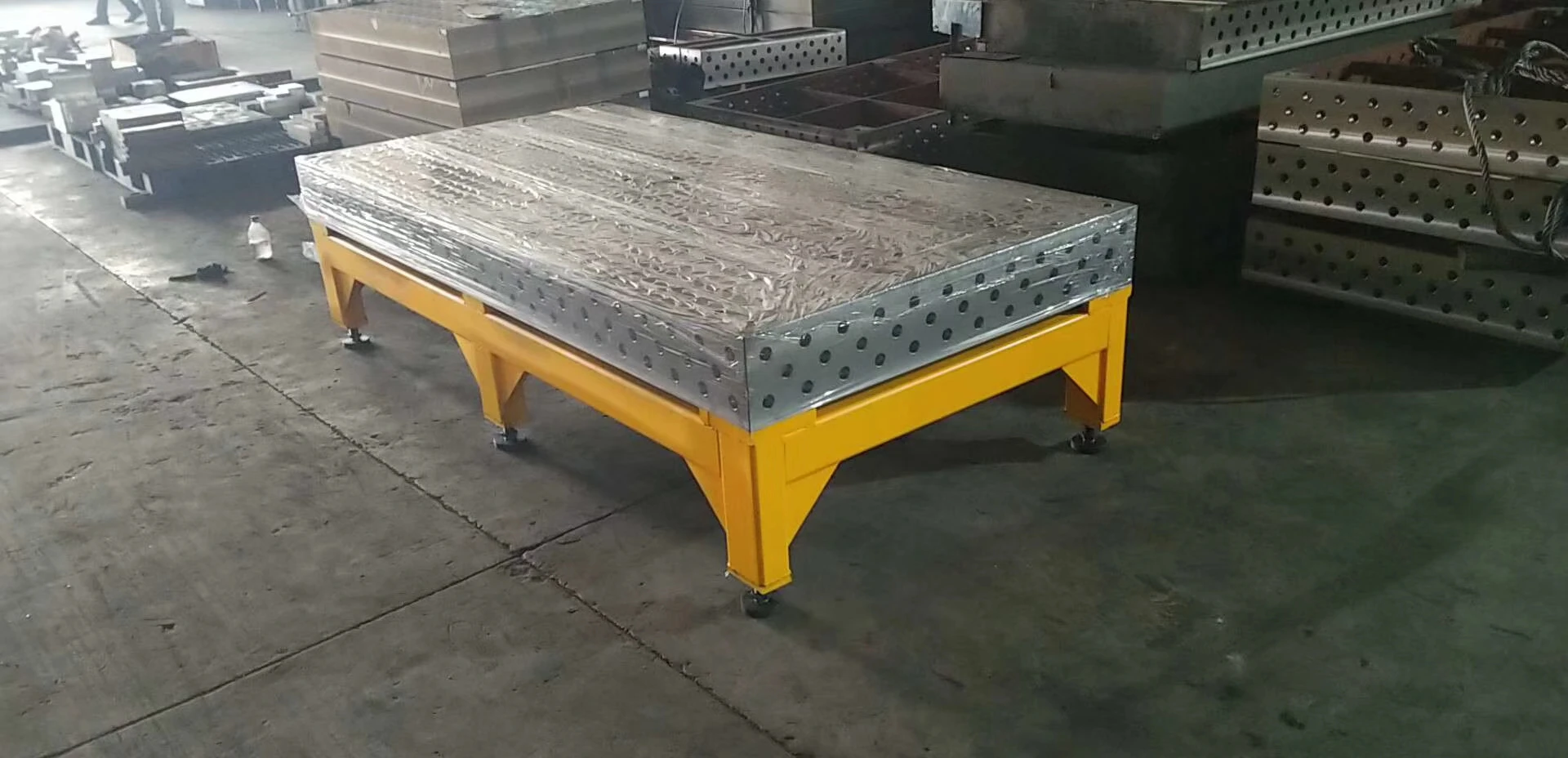

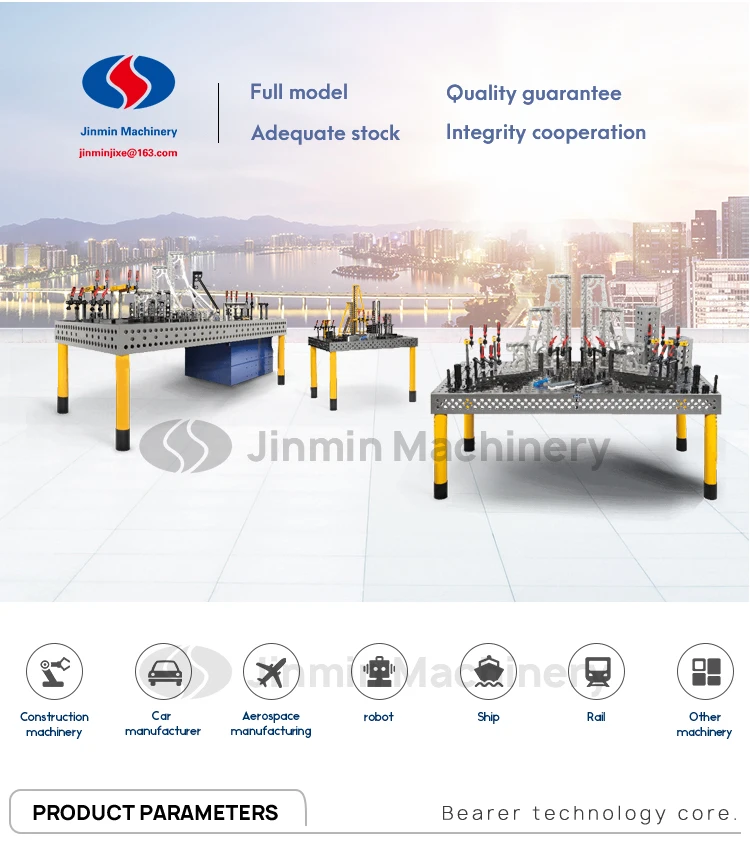

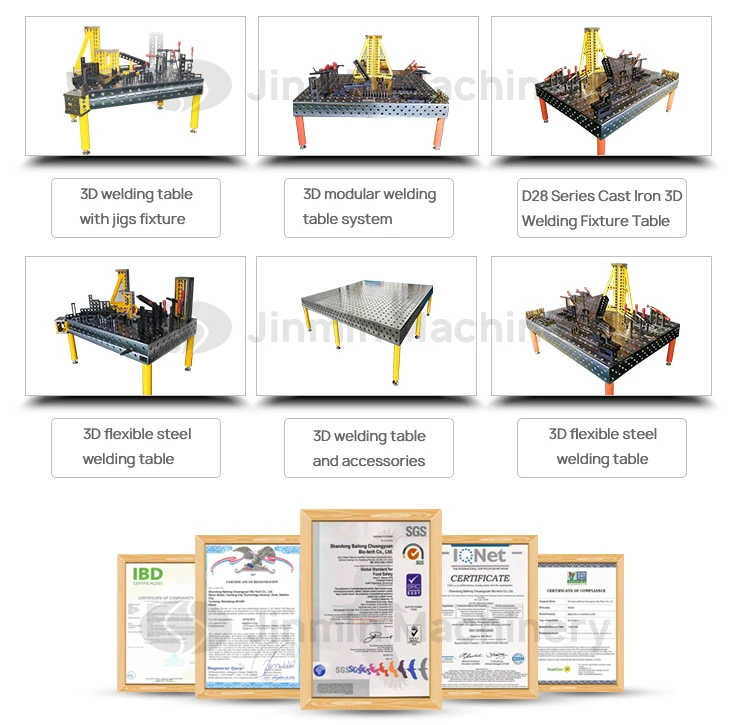

3d welding table with stand
Five working surfaces the locating piece can be installed on. Also can be extended via any of its five working surfaces.
For its material divided into: Steel Welding Tables (Q345) and Casting Welding Tables (HT300).
For its hole diameter divided into: D28 series and D16 series.
Diagonal Grid: D28 is 100*100mm; D16 is 50*50mm.

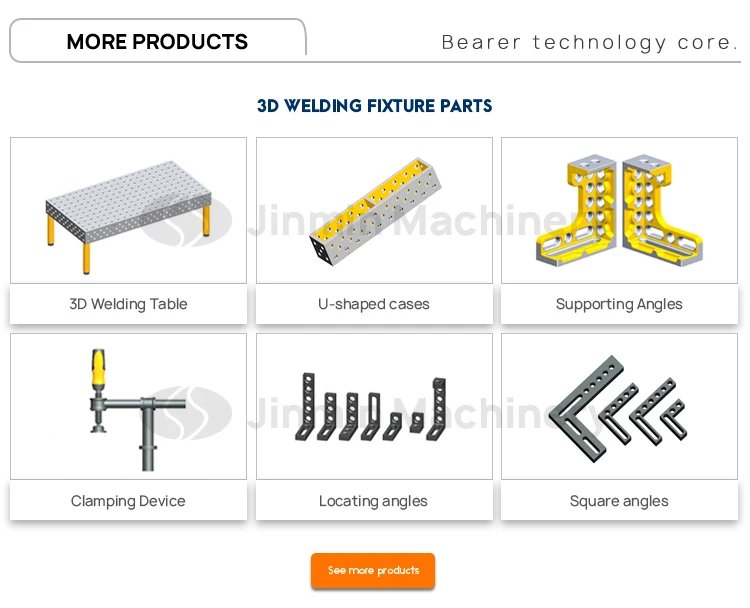

Supporting: legs, steel frame and hydraulic lift box, according to the requirement. Components can be equipped after your selecting:
Features:

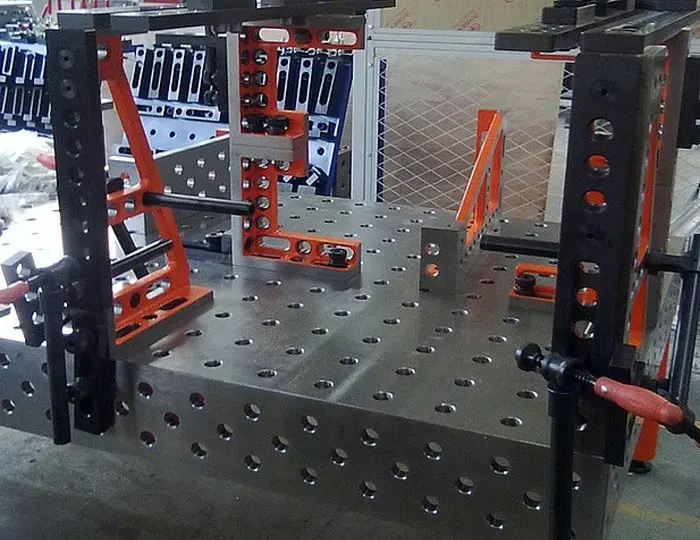

Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.
| 3d welding table specification sheet | |||||
|---|---|---|---|---|---|
| D28 series | D16 series | ||||
| Numbering | specification | weight | Numbering | specification | weight |
| JM-D28-1010 | 1000*1000*200 | 380KG | JM-D16-1005 | 1000*500*100 | 70KG |
| JM-D28-1212 | 1200*1200*200 | 430KG | JM-D16-1010 | 1000*1000*100 | 120KG |
| JM-D28-1015 | 1000*1500*200 | 450KG | JM-D16-1208 | 1200*800*100 | 120KG |
| JM-D28-1020 | 1000*2000*200 | 600KG | JM-D16-1212 | 1200*1200*100 | 170KG |
| JM-D28-1224 | 1200*2400*200 | 850KG | JM-D16-1015 | 1000*1500*100 | 180KG |
| JM-D28-1520 | 1500*2000*200 | 880KG | JM-D16-1515 | 1500*1500*100 | 270KG |
| JM-D28-1530 | 1500*3000*200 | 1300KG | JM-D16-1020 | 1000*2000*100 | 250KG |
| JM-D28-2030 | 2000*3000*200 | 1800KG | JM-D16-1224 | 1200*2400*100 | 350KG |
| JM-D28-2040 | 2000*4000*200 | 2700KG | |||
-
