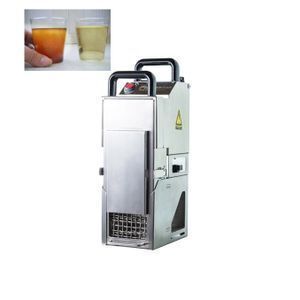

Automatic Oil Cleaning Equipment Cooking Oil Filter Machine

Supplier: Zhengzhou Yituo Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Simon Yi
Price: $445.50 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China;	Working Medium:	filter paper;
After Warranty Service:	Video technical support,Online support,Spare parts;	Product name:	cooking oil filter;
Power:	200w;	Single package size:	193X12X37.4 cm;
Weight:	8.4kg;	Single gross weight:	15.0 KG;
Application:	cooking oil;	Filter Type:	Liquid Filtration;
Certification:	CE certification;	noise:	<= 65dB;
Work Model:	Internal Filtering;	Selling Units:	Single item;
Package Preview:	;	Flow:	55-220L/Min;
Local Service Location:	None;	Applicable Industries:	Hotels,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops;
Filter the oil temperature:	140-150℃;	After-sales Service Provided:	Online support;
Warranty:	1 Year;	Filtering Area (M2):	0.20;
Showroom Location:	None;	Packaging Detail:	standard export wooden case for express;
Brand Name:	YITUO;	Dimension(LWH):	193120374mm;
Condition:	New;	Filter material:	stainless steel;

Automatic Oil Cleaning Equipment Cooking Oil Filter Machine

Product Description

In oil filtration, FFA and TPM increasing result in darker product outlook, oily smell, high oil-contain proportion, and shorter product shelf life. Replacing oil frequently was the solution in the past but increase cost dramatically. Sunshine provides its customers with an ideal solution by using the filtration system to extend the oil life cycle and to solve the above problems.

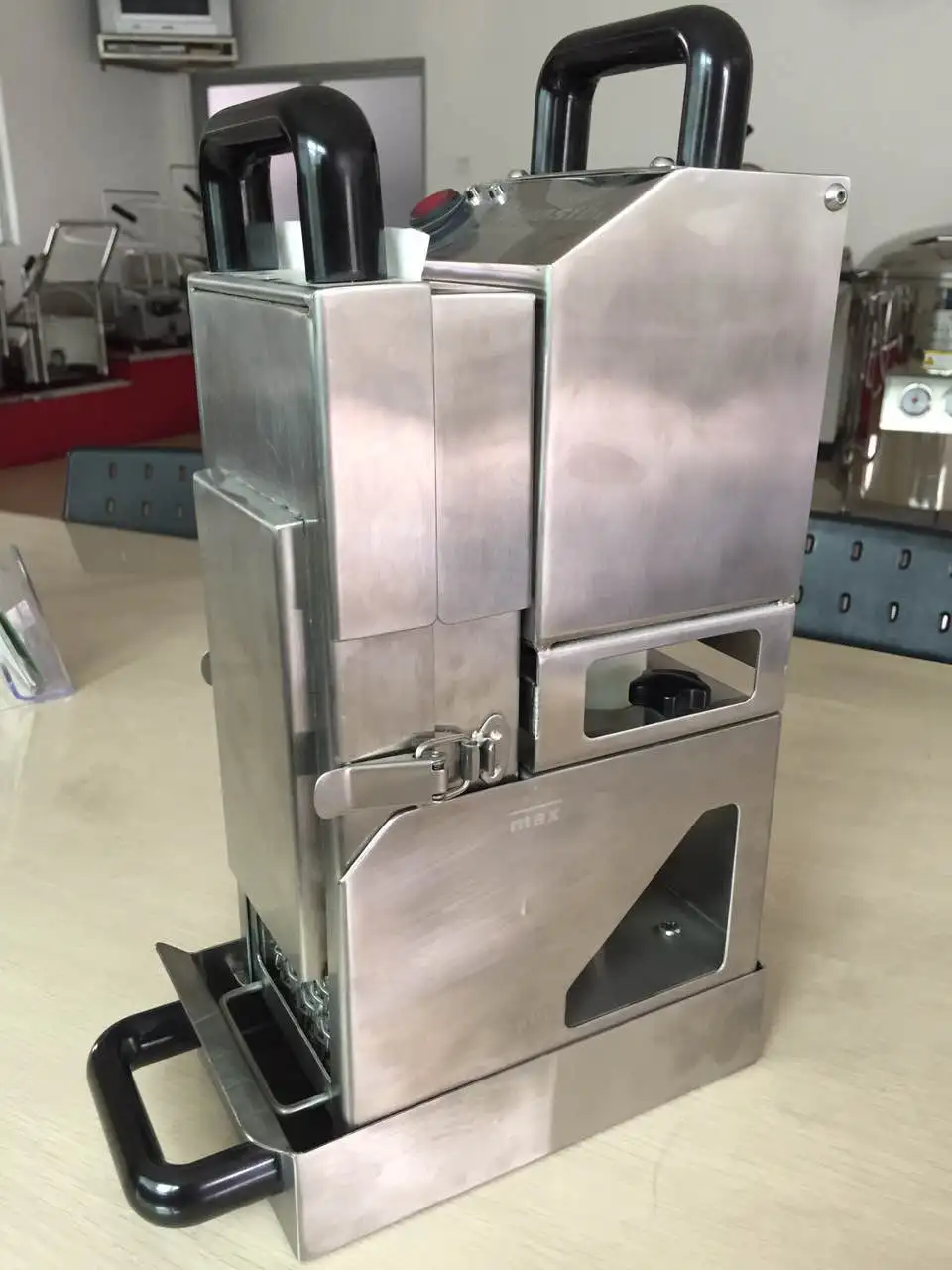

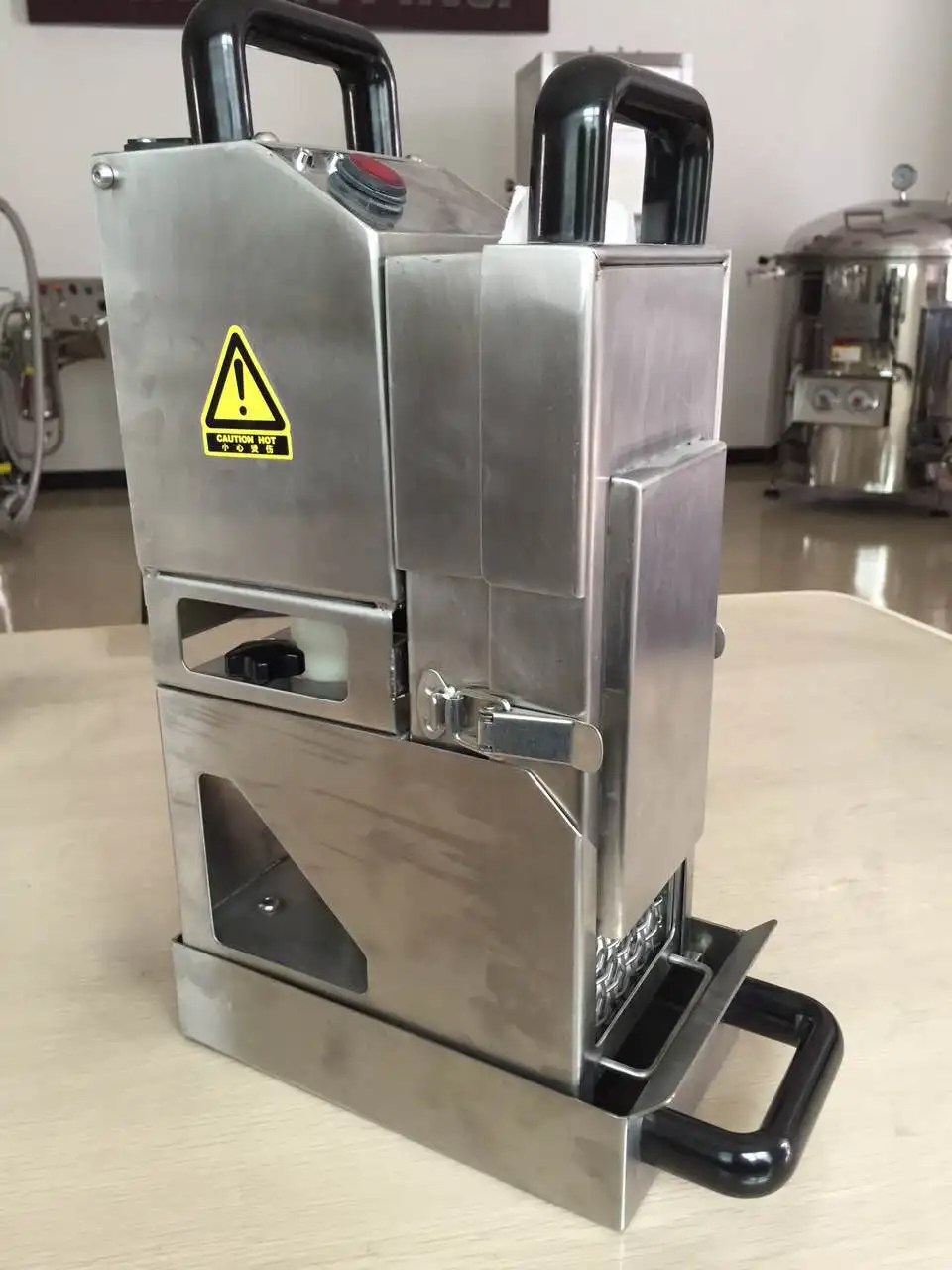

More details about the oil filter machine

Technology Parameter Of Oil Filter Machine

Model	YT-F45 Deep Fryer Oil Filter Machine
Work Model	Internal Filtering
Filtering Area (M2)	0.20
Frequency of Filter Paper	1pc
Noise	≤65dB
Powder( KW )	8.4
Weight ( kg)	15kg
Size(LWH) mm	193120374

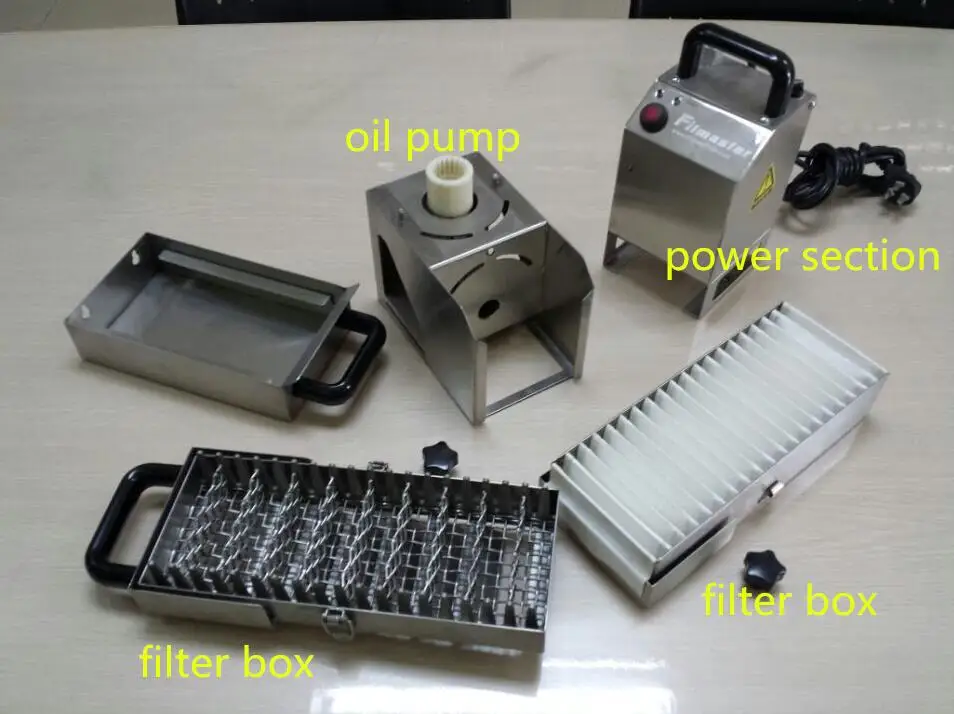

Diagram of oil filter machine

The oil filter included:
1.Oil pump

2.Power section

3.Filter box

4.Filter constructure

Simple Description Of Oil Filter Machine

♣ The Oil Filter Machine can adjust filtering time

♣ The Oil Filter Machine have high temperature protection

♣ The Oil Filter Machine is small and exquisite, easily stored

♣ The Oil Filter Machine is detachable, easily cleaned

♣ The Oil Filter Machine use folding filter paper, larger filtering area

How to use Oil Filter machine

Filmaster 25 can be used up to two units of 20L capacity deep fryers.

Filmaster 45 can be used up to four units of 20L capacity deep fryers.

We recommend to clean the oil after lunch and dinner service.

It is important that the deep fryer is clean and that the oil is new

when using Filmaster for the first time. Do not start Filmaster in an already dirty deep
fryer with old oil.

Oil after filtration:

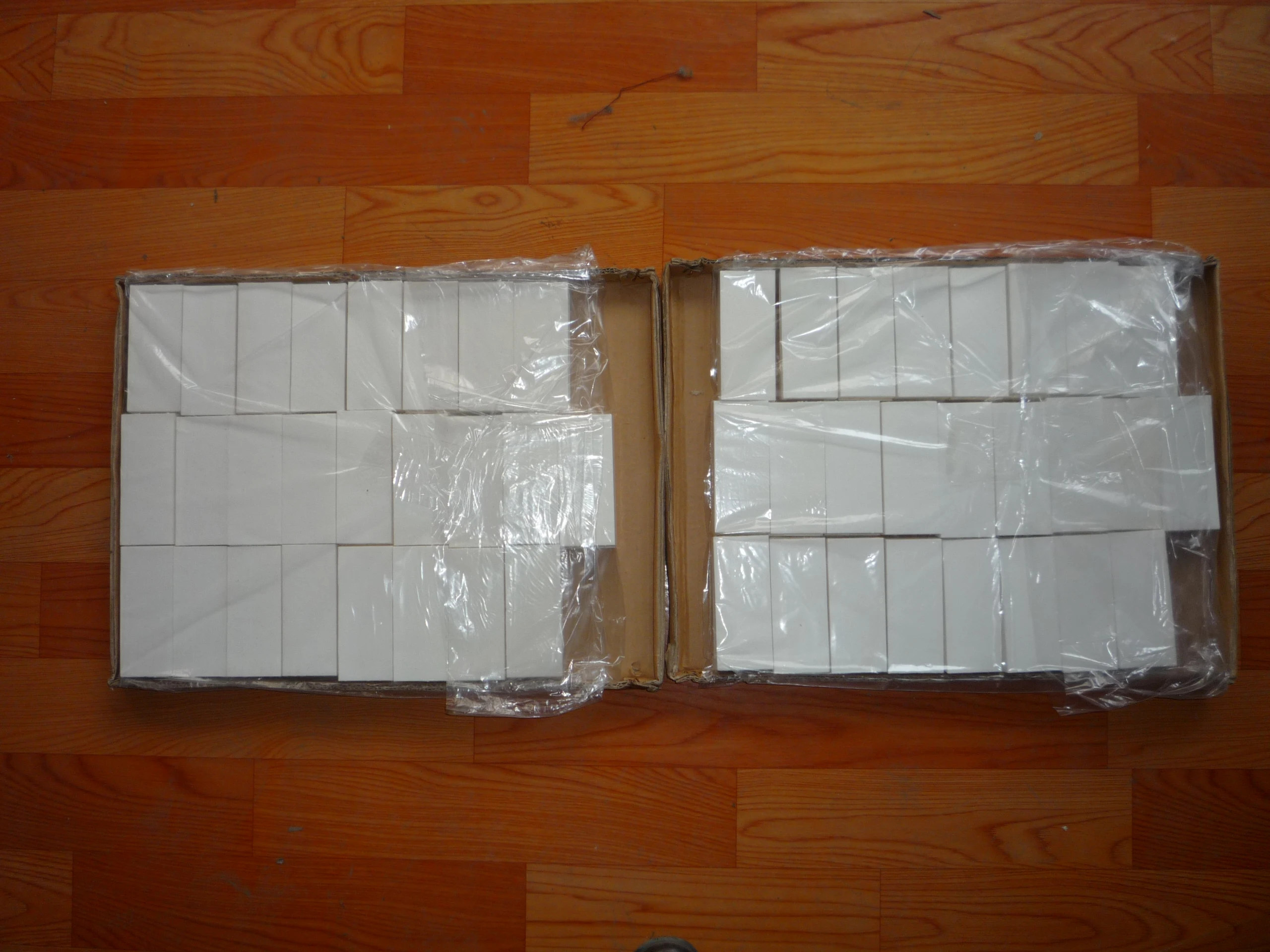

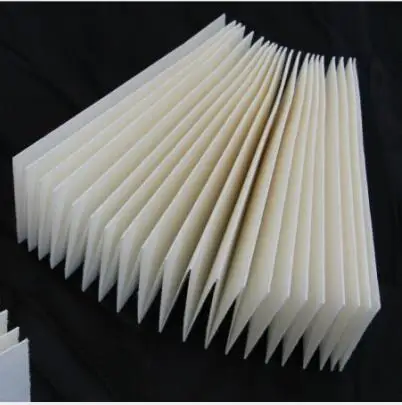

Oil paper filter if need it we also can provide it:

Care and maintenance

Cleaning Warning! Only change the particle filter when the machine is cool ! ! ! ! After a long period of time, the filter will need to be changed after a day off or a holiday.Always clean the Filter box before a new particle filter is put in.
1. Pull the filter casing apart from the pump casing
2. Open the buckles besides Filter box.

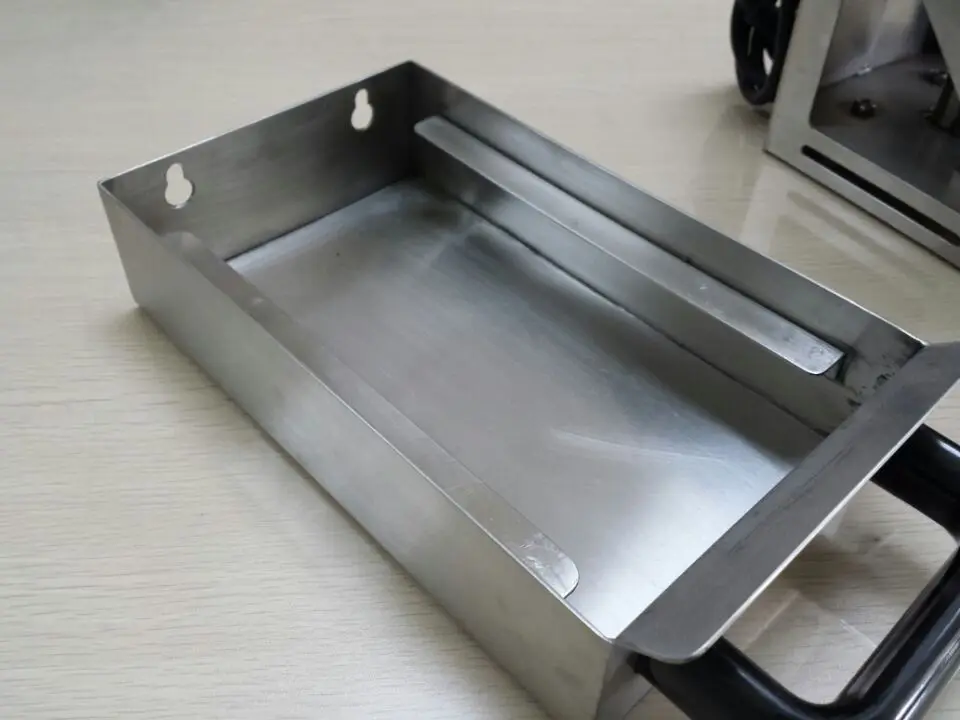

3. Separate Filter box
4. Dispose of the old particle filter and clean the Filter box.
5. Remove the star grips from both sides.

6. Detach the electrics unit from the pump unit.
7. The Filter box, the filter unit and the pump unit can all be
washed in the dishwasher or by hand.

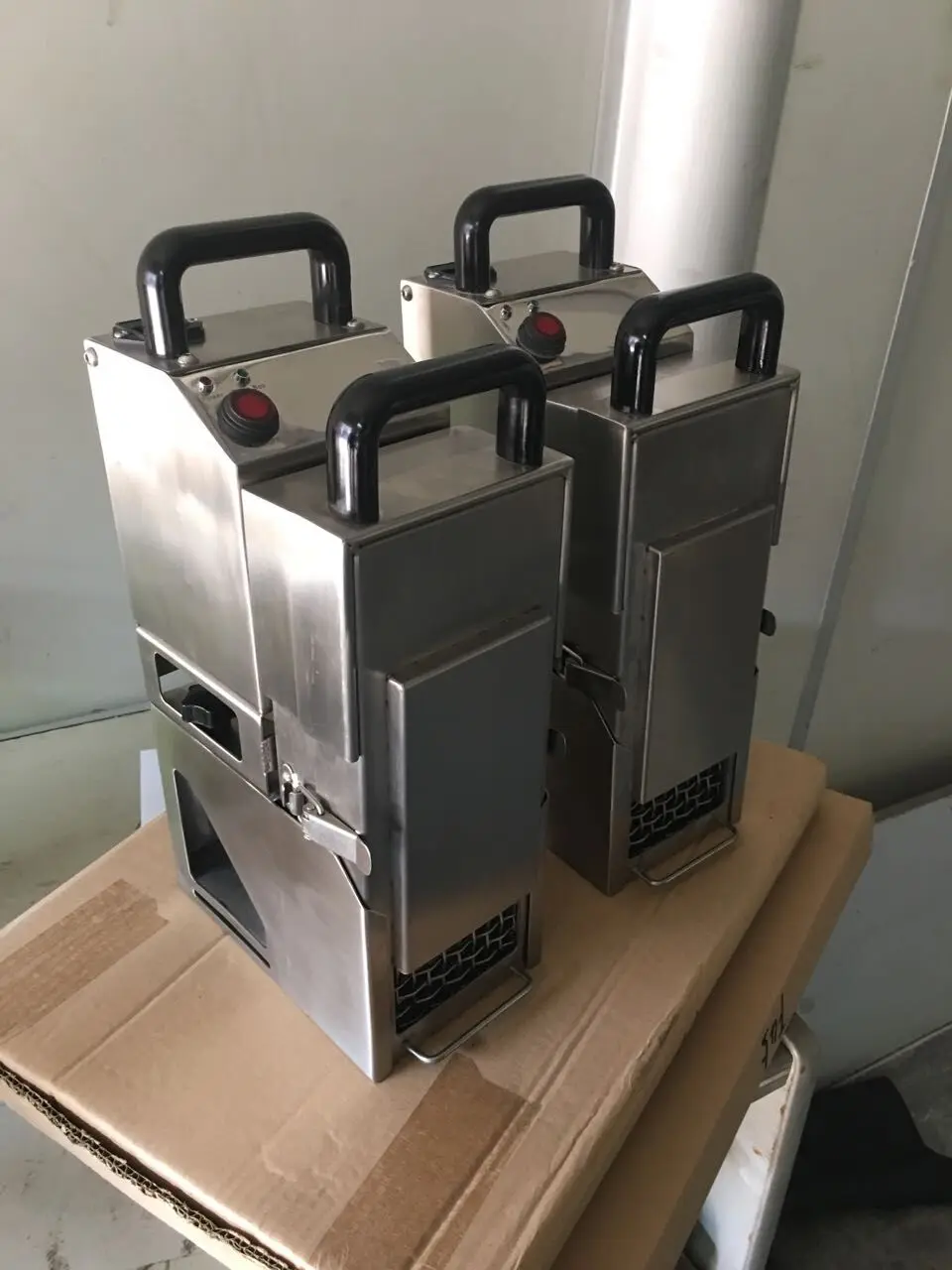

Packaging & Shipping

In order to avoid the damage during transport,we will do enough

work in the packaging.
