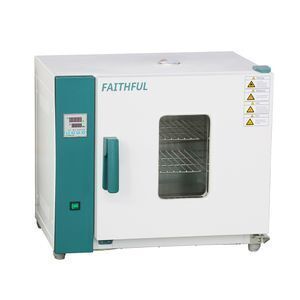

202 Model Horizontal Constant Temperature Drying Oven

Supplier: Faithful Instrument (Hebei) Co.,Ltd
Region: Hebei, China
Contact: Mr Peter Yang
Price: $205.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Classification:	Lab Drying Equipment;
Port:	Tianjin;	Tem. Motion:	±1.0°C;
Warranty:	2 Years;	Material:	Stainless Steel;
Supply Ability:	10000 Piece/Pieces per Year;	Color:	White;
Product name:	202 Model Horizontal Constant Temperature Forced air Drying Oven;	Model Number:	202-0AB;
Packing:	Standard Export Extra Heavy Extra Strong Carton;	Place of Origin:	Hebei China;
Standard:	CE, ISO;	Timing:	0~9999min;
HS Code:	8419200000;	Tem. Range(°C):	RT+5~250deg C;
Brand Name:	FAITHFUL;	Packaging Detail:	standard Export Carton;

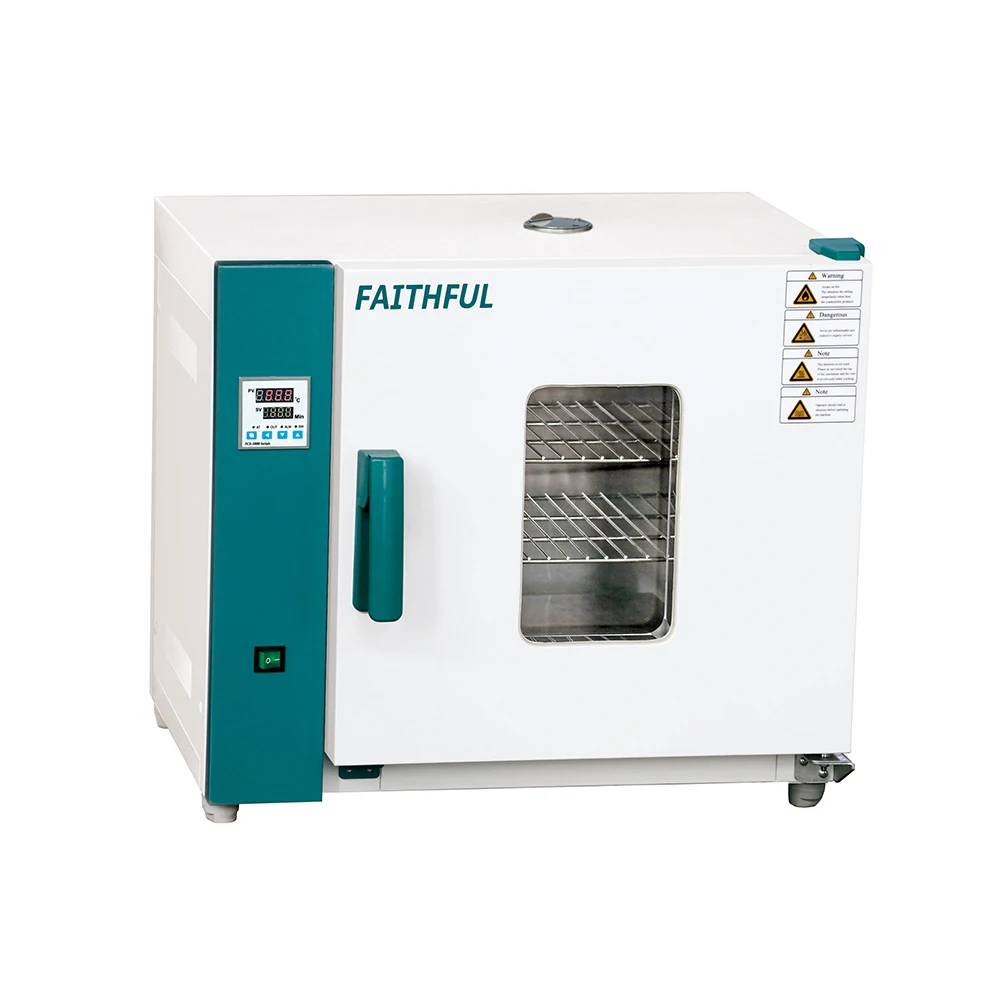

202 Model Horizontal Constant Temperature Drying Oven

Uses:
Applications of this equipment in industrial and mining enterprises, labs and scientific research institutions include drying, melting, baking and sterilization etc.

Characteristics:
1. Cold rolling steel electrostatic spraying exterior; Stainless steel or cold rolling steel corrosion-resistant inner chamber.
2. Optional pointer meter or intelligent temperature controller with PID program and digital display, and with function of timing and over-temperature protection.
3. Door with double-layer tempered glass for clearly observation.
4. Door with silicon rubber seal ensures good seal ability.

Parameters:

Model		101-0A/101-0AB	101-1A/101-1AB	101-2A/101-2AB			101-3A/101-3AB
		202-0A/202-0AB	202-1A/202-1AB	202-2A/202-2AB			202-3A/202-3AB
Cycle Mode		101 means Forced convection;202 means Natural convection
Function	Temp. Range	RT+10-250℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±2.5%
Structure	Inner Chamber	B model:High quality stainless steel; without B model:High strength galvanized sheet
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Compound silicate heat preservation board
	Heater	101 model with Stainless steel electric heating tube; 202 model with Nickel chromium alloy heating wire
	Power rating	1.2kW	1.6kW		2.3kW		3.0kW
	Exhaust hole	φ28mm top(with function of test hole)
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	LED Digital display
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function,auto stop.
	Additional function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
	Sensor	pt100
Safety device		Over temperature sound-light alarm
Specification	Inner Chamber size(WLH)(mm)	350350350	450350450			550450550	600500750
	Exterior size (WLH)(mm)	652472587	752472687			852572786	902622986
	Packing size (WLH)(mm)	755615735	855615835			955715935	10057651135
	Volume	43L	71L			136L	225L
	Shelf number	9	13			17	21
	Load per rack	15kg
	Shelf space	25mm
	(50/60HZ)Current rating	AC220V/5.5A	AC220V/7.3A			AC220V/9.1A	AC220V/13.6A
	NW/GW (kg)	33/37	45/50			62/68	77/96
Accessory	Shelf	2
	Shelf frame	4
optional accessories		Shelf
