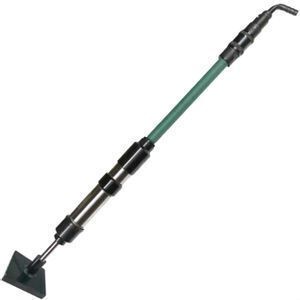

TY64006T Air Powered Backfill Tamper Floor Models Earth Rammer Iron Butt 4in.X 4in.

Overview

TY64006T is pneumatic powered Floor Type Sand Rammer/Backfill tamper designed to effectively compact soil around foundations and other structures and for compacting back fill in trenches. It is ideal for medium applications. This model is designed only for vertical downward use.

Operation

Compacting

• Stand in a stable position with your feet well away from the butt.
• Hold the tamper in a vertical position and press it slightly against the working surface before you start.
• Strive to find a feed force that makes the tamper move as little as possible vertically.
• Avoid making contact with solid materials for example granite and concrete which would cause substantial vibrations and uncontrollable movements of the tamper.

Field Operation

Before:

1. Check the tamping butt lock screw, it must be tightened securely.
2. Check to see that the piston has sufficient drag. Adjust packing nut accordingly.
3. Fill the oil reservoir in cylinder head with Air Tool oil.
4. Tighten extension pipe to cylinder head.
5. Tighten cylinder head securely to cylinder. Lock in place with locking device.
6. Clean any water and/or dirt from air hose before connecting it to the tool.

During:

1. For your safety and that of others, keep tool against work at all times!
2. When moving from one work area to another, shut off tool.
3. Use tool in conjunction with in-line oiler when possible. Otherwise, refill with Air Tool oil every two hours.
4. Avoid using the tool in a horizontal position.

After:

1. Flush tool with cleaning solvent, then refill with Air Tool oil.
2. Do not leave tool in water or in dirt.
3. Check to see that extension pipe, cylinder head and cylinder are tight.
4. Re-tighten tamping butt lock screw.
5. Store the tool well-oiled.

Working

• Let the machine do the work; do not press too hard.
• Any form of idling or operating with an uplifted machine must be avoided.
• When the machine is lifted, the start and stop device must not be activated.
• Check that the compressed air is clean, dry and free from lubrication.

When taking a break

• During all breaks you must place the machine in such a way that there is no risk for it to be unintentionally started. Make sure to place the machine on the ground, so that it can not fall.
• In the event of a longer break or when leaving the workplace: Switch off the power supply and then bleed the machine by activating the start and stop device.

More Models on the Click

TY64006R (Rubber Butt)&TY64006(Iron butt) same features as TY64006T

Tarboya Sand Rammer/Backfill Tamper brochure could be downloaded from www.tarboya.com

Tarboya warrants TY64006T Backfill Tamper will not have any material or manufacturing defects for the period of 8 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 8 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine
• Use contrary to national or international standards
• Incorrect installation
• Faulty supply of compressed air or its poor quality
• Serious deficiencies in maintenance
• Unauthorized modifications and/or interventions
• Total or partial non-compliance with the instructions included in the manual
• Exceptional events, natural disasters and others

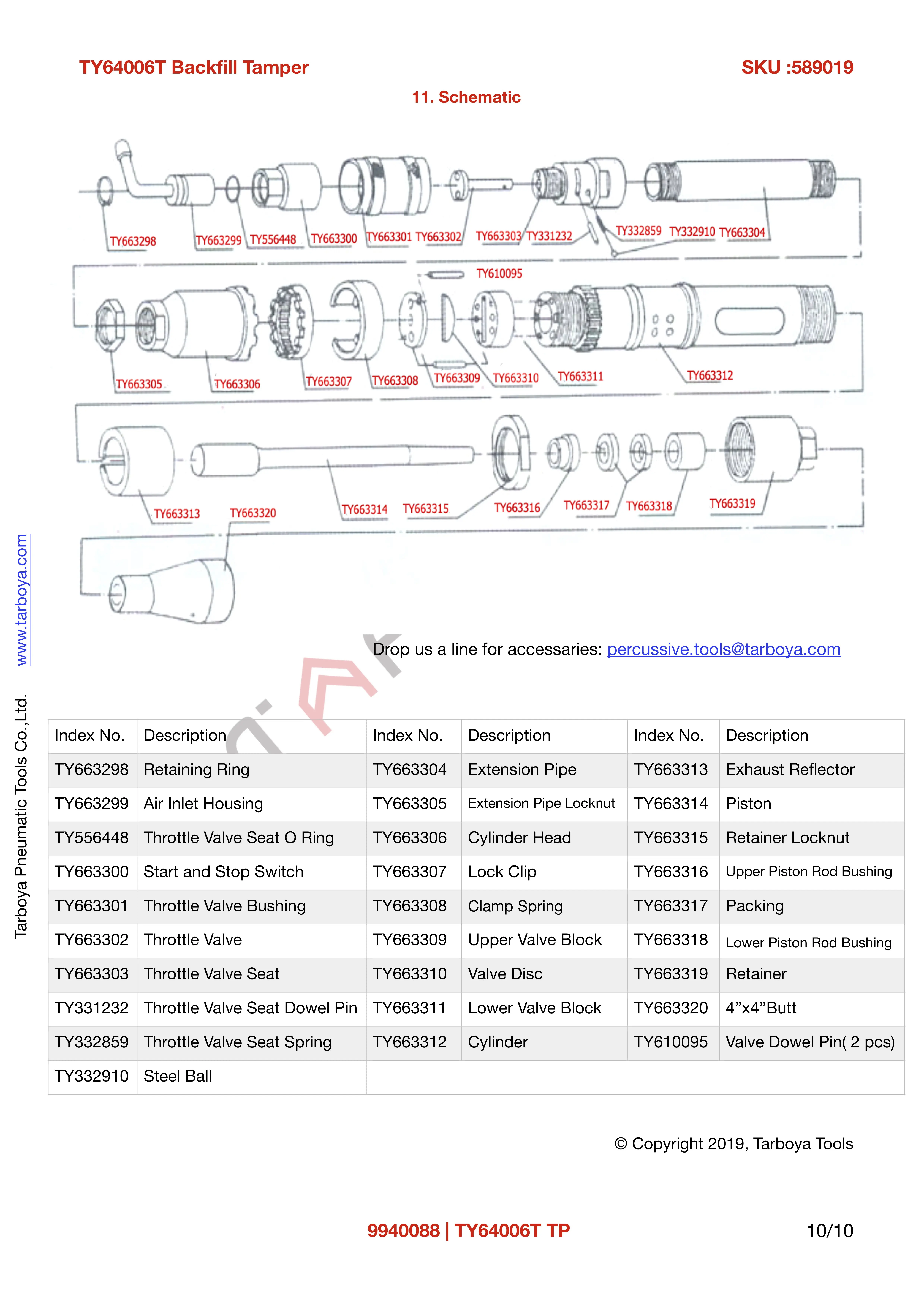

Parts and Maintenance

• When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so that they can be recycled.
• Tool repair and maintenance should only be carried out by an authorized Service Center.
• Refer all communications to Tarboya.

Related Documentation

For additional information refer to:

D6 Backfill Tamper Passport #9938466.
