3d welding table with jigs

  3d welding table with jigs

3D Steel Welding Table (D28):

3D Casting Welding Table (D28):

3D welding table —— D28 series

Be made of cast iron

5 precision machined working surfaces

Hole diameter: 28mm

Grid lines: 100mm*100mm

Hole pitch: 100mm

Material thickness: approx.23mm

Side surfaces height: 200mm

Be reinforced on the underneath side by ribs

3D welding table —— D16 series

Be made of cast iron

5 precision machined working surfaces

Hole diameter: 16mm

Grid lines: 50mm*50mm

Hole pitch: 50mm

Material thickness: approx.14mm

Side surfaces height: 100mm

Be reinforced on the underneath side by ribs.

Bad Platform:

The side of bad platform has stoma trachoma with glue filling,After the high temperature,

the filling will overflow, making the platform uneven, affecting the accuracy and use of the platform

Yuanpeng Platform:

Professional platform don't have stomatal trachoma

                         (Please send an inquiry to us)

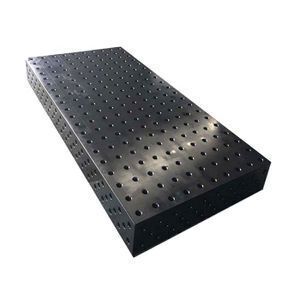

                                                     Product Show  After Nitriding Treatment

                                                                  More 3D Welding Table Fittings
