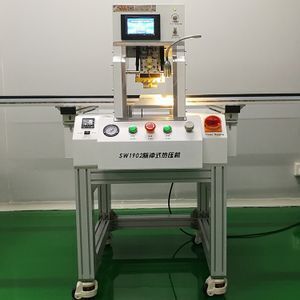

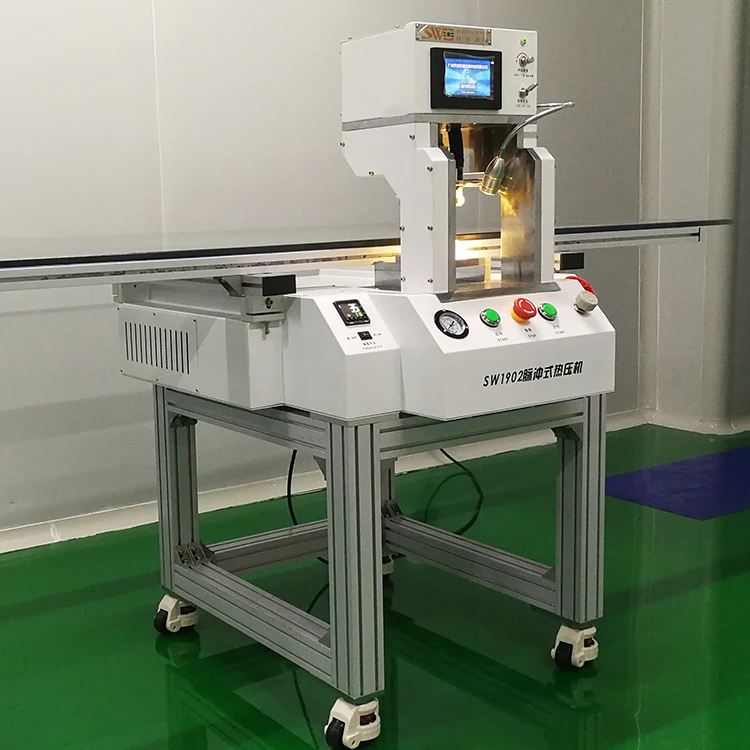

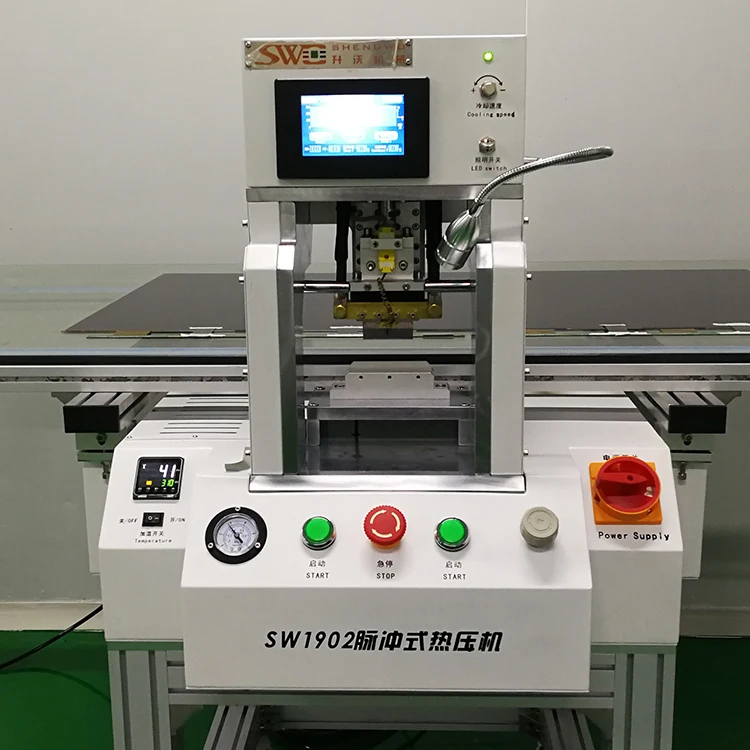

Lowest factory price Well sell SW1902 Precision repair Laptop Panel Repair TAB bonding machine

Click here to contact

Product details

Warranty:	12 Months;	Power:	500W;
Applicable Industries:	Machinery Repair Shops;	Port:	huangpu,shenzhen;
Packaging Detail:	wood case;	Warranty of core components:	1 Year;
MOQ:	1set;	Showroom Location:	Egypt,India,Thailand;
Product name:	TAB bonding machine;	Core Components:	Bearing,Pressure vessel;
Video outgoing-inspection:	Provided;	Weight:	60kg;
Marketing Type:	New Product 2019;	Name:	sw1902;
Item:	SW1902;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Voltage:	220V;	Package Preview:	;
Machinery Test Report:	Provided;	Application:	screen repair;
Local Service Location:	Egypt,India,Thailand;	Brand Name:	swo;
Place of Origin:	China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Function:	LCD Screen Repairing;	Payment Terms:	L/C,T/T,Western Union;
Condition:	New;	Dimension(LWH):	705mm751mm610mm;

Well sell Precision repair Laptop Panel Repair TAB bonding machine

1. Safety Protection Function:

a. Safety BV certification, with emergency stop-switch, when temperature, thermocouple is abnormal,alarm will prompt.

b. Has double bond restart protection ,avoid careless boot device.

3. Temperature System:

a. Save multiple-groups profiles according to the need,set and modify the temperature parameter on the touch screen at any time.

b. Temperature control parameter is wrote into the programme.

c. On the touch screen, temperature curve can always be adjusted.Response time is 3-4 seconds from room temperature to 180 degrees.

Technical parameters:

Model	SW1902
Heating model	Pulse heating
Avaiable OC size	10-100 inch
PID temperature control system	Brand:OMRON Temperature control instrument
	Hermonuclear type: K type Brand:OMEAG Place of Origin:The USA
	Temperature curve:Factory setting
	Peak temperature: +/-5 degrees Celsius
	Heating speed:2 seconds from room temperature to 180℃
Heating head	Materials: titanium alloy
	Place of origin:The USA
	Plane precision (heating side) : 0.005 mm
Quartz strip	Plane precision(press side):0.005mm
Language system	English & Chinese
Cylinder	SMC
Industrial control unit	Microcontrollers
Alignment of head	Manual
Glass platform	Fixed Glass size:170085012mm(not include with machine)
Control type	Touch screen + button operation
Alarm Condition	Temperature/thermocouple/actions abnormal
Data setting	Pattern:pre bonding/glass bonding/PCB bonding
Data setting	Avaiable brand:All kinds of OC brand
Voltage	220V
Power	500W
weight	60KG
