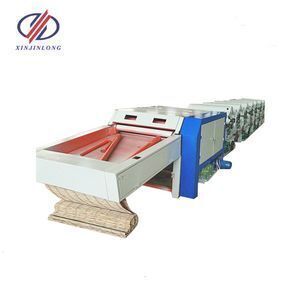

Xinjinlong Open type fiber laser cutting machine hosiery opening and fabric waste recycling machine

Supplier: Jinan Xinjinlong Machinery Co., Ltd.
Region: Shandong, China
Price: $8800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Power:	50kw;
Color:	White blue;	Suitable for:	All textile waste;
Brand Name:	XINJINLONG;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Usage:	spinning/ no woven;	Capacity:	300kg/h;
Product:	Cotton Fibre;	Video outgoing-inspection:	Provided;
Weight:	1.5T;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Local Service Location:	Turkey,France,Peru,Mexico;	Showroom Location:	France,Peru,Mexico,Argentina,Kazakhstan;
Warranty of core components:	1 Year;	Certification:	CE/ISO900;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Motor:	50kw;
Machine Type:	MQT250*1000;	Package Preview:	;
Key words:	Fully automatic;	Name:	recycling machine line;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Port:	QINGDAO;
Packaging Detail:	Industrial plastic film;	Supply Ability:	999 Set/Sets per Month;
Condition:	New;	Applicable Industries:	Retail,Construction works ,waste textile;
Country of origin:	China;	Place of Origin:	Shandong China;
Voltage:	220V/380V;	Dimension(LWH):	748017001150;
Machinery Test Report:	Provided;	Type:	Cotton;
Marketing Type:	New Product 2020;

Product Description

Product Application

Mainly used for cleaning and recycling thrum,flax,ramie,jute,glass fiber,cotton yarn,carpet,jeans,leftover of cloth,chemical fiber etc.

Six roller recycling machine
Model	MQT250*1000	MQT350*1000	MQT400*1000
Output (kg/h)	80-100	150-180	180-220
Gear standard(mm)	250*1000	350*1000	400*1000
Dust cage standard(mm)	500*1000	500*1000	500*1000
Power(kw)	25.5	27	27
Overall dimensions(mm)	748017001150	777017001200	780017001250

Main Features

1. High strength, reasonable structure, compact design, stable performance and reliable performance;

2. Special new type of loose rack, long service life, adopt the combination process of "open and loose", which has little damage to fiber and low loss.

3. 4 roller feeding materials, raw material need not be cut off, can be directly fed, save artificial (or machine) cut off this process, greatly reduced processing cost.

4.Automatic feeding device, impurities do not need to be cleaned manually, automatically send the impurities to the flowers curtain, reduce the labor intensity, one person can operate two machines simultaneously.

5. The inorganic variable speed system can be used to adjust the output and quality according to the different requirements of the customers.

6. Bearing, wearing small and low failure rate;

The clearance is easy to adjust and easy to maintain.

7. Large output, small power consumption, good cleaning and miscellaneous effects;

Electric motor control feeding, control sensitive, simple operation.

8. Independent vacuum suction fan, the dust removal is good, the finished product is clean and the working environment is free of dust.

9. Fully enclosed protective cover, beautiful appearance, generous and safe performance.
