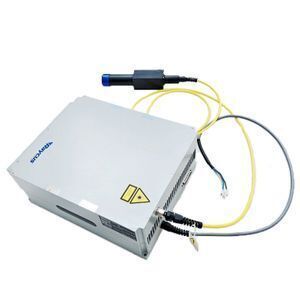

20w 30w Raycus fiber laser source for laser marking machine
- 1000.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Type: | Pulsed fiber laser source; | Nominal average output power(W): | >20; |
| Wavelength: | 1064nm; | Output fiber Cable length(m): | 2; |
| Brand Name: | Carman haas; | Pulse repetition(kHz): | 20-60; |
| Single package size: | 75X43X23 cm; | Product name: | laser source; |
| Selling Units: | Single item; | Package Type: | 1PC/CTN;CARTON SIZE:75CM*43CM*23CM;13KGS/CTN; |
| Single pulse energy(mJ)@20kHz: | <120@30kHz; | Working Voltage(WDC): | 200; |
| Single gross weight: | 13 KG; | Output Power Tunability(%): | 10-100; |
| Place of Origin: | Jiangsu China (Mainland); | Cooling: | Forced Air Cooled; |
| Delivery Detail: | 0 days after payment; |

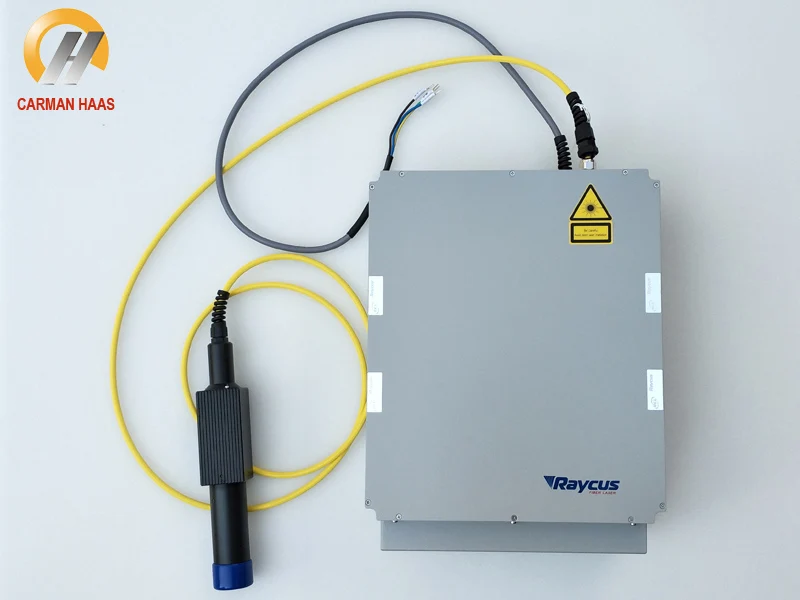

20w/30w/50w/100w Raycus fiber laser source
Product Description
Raycus laser source parameter
| MODEL | RFL-P20QE | RFL-P30Q | RFL-P50Q | RFL-P50Q | RFL-P100 |
| Optical Properties | |||||
| Average output power | 20 | 30 | 50 | 50 | 100 |
| Central wavelength | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
| Frequency Range(kHz) | 20-60 | 30-60 | 50-100 | 50-100 | 20-200 |
| Output Power Stability | <3% | <3% | <3% | <3% | <5% |
| Output Beam diameter(mm) | 7±1 | 7±1 | 7±1 | 7±1 | 6.5±1 |
| Polarization State | Random | Random | Random | Random | Random |
| Pulse Width(ns) | 90-130 | 90-130 | 90-150 | 90-150 | 50-130 |
| Max Single Pluse Energy(mJ) | 1 | 1 | 1 | 1 | 1 |
| Delivery Cabel Length(m) | 2(Customizable) | ||||
| Electrical Characteristics | |||||
| Power supply | 24V | ||||
| Power range | 10-100 | ||||
| Power consumption(W) | 170 | 240 | 340 | 340 | 450 |
| Other characteristics | |||||
| Dimensions(mm) | 391*260*120 | 391*260*120 | 396*360*123 | 391*260*120 | 396*360*123 |
| Cooling | Forced Air | ||||
| Operating Temperature | 0-40 | ||||
Raycus laser source features
Echnical characteristics
Highly stable laser output
High single-pulse energy
High marking efficiency
Short pulse setup time
High reliability
Maintenance-free operation
