IATF16949 factory supply flexible copper busbar connectors for battery pack of electric truck

Supplier: Zhejiang Rhi Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Ye
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Detail:	Busbar is packed in poly bag,then in carton.Or as your request.;	Visiting company:	Welcomed;
Item:	busbar;	Place of Origin:	Zhejiang China;
Size:	as your request;	Package Preview:	;
Certificate:	ROHS,IATF16949;	Port:	Ningbo or Shanghai;
Color:	Nickel color;	Insulation part:	PVC dipping;
Brand Name:	RHI;	Payment Terms:	L/C,T/T,Western Union;
Model Number:	busbar;	OEM:	ok;
Material:	copper;	Supply Ability:	10000 Piece/Pieces per Day busbar;
Protection color:	orange;	Application:	Battery pack;
Plate:	nickel plated;

Product Description

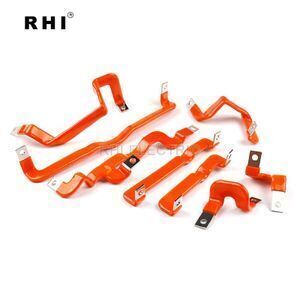

IATF16949 factory supply flexible copper busbar connectors for battery pack of electric truck

Zhejiang RHI is trusted for producing high quality copper busbar and aluminum busbar.Pls kindly check following details.

Material Standard	GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized
Resistance	0.00001Ω
Conductivity	57%
Copper Foil of Single Layer Thickness	0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure, we will advise suitable thickness
Insulation Material	PVC Dipping Coating is good performance, special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.
Insulation Performance	PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance	UL94-V-0 or upon you request
Leakage Testing	PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Or upon your working voltage, we advise to choose better solution.
Surface Plating	Nickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um or upon customers' request
Salt Spray Testing	In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing	Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing	Depend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you request
Operating Temperature	-45 to +150 ºC
Copper Foil Tensile Strength	≥500N
Quote Time	Quotation sheet will be sent in 1-3 working days when receive your enqiury
Sample/Trial Order Delivery Time	In 5 -15 working days according to different bus bar structure and manufacture process
Quality Management Standard	Meet Auto Industry IATF 16949
Eco-friendly Certificate	ROHS, REACH

Application: Widely used in battery pack,new energy storage system,new energy vehicle.etc.

Busbar tester

Testing Capabilities

Test Programs	Tester	Standard	Test Result
Endurance test	Endurance meter	upon your request	√
Release force test	Universal material testing machine	upon your request	√
Loop resistance,contact resistance test	Loop resistance testing equipment	upon your request	√
Temperature rising test	Temperature rising tester	GB/T14048.1-2000	√
Electric conductivity test	Conductivity tester	YS/T478-2005	√
Salt spray test	Salt spraying tester	GB/T2423.17-2008	√
Thermal ageing, heat vibration test	Air exchange aging test machine	upon your request	√
Coating thickness test	X-ray coating thickness tester	upon your request	√
Voltage drop test	Voltage drop tester	upon your request	√

Our Services

1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document.

2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need.

3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester.

4.High production efficiency and low cost :10 year experience of production and complete production chain.

5.Highly intelligent production workshop: robot production line and high-precision machines.

Customer feedback

FAQ

1. Q: Are you factory or trading company?
A: We are factory with 10 year's exporting experience.
2. Q: Can I get sample before making order?
A: We can send you samples if you tell us the model and size you need, or you send us your drawing.
3. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
4. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.
5. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.
