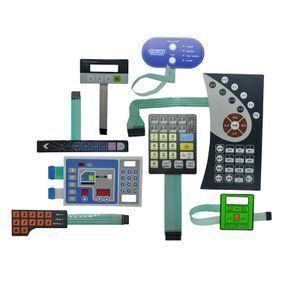

OEM Service Custom Tactile Control Graphic overlay Panel Waterproof Membrane Switch Keypad

Supplier: Nanjing Momao Electronic Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Dara Yan
Price: $0.30 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Packaging Detail:	First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton. According to clients' special requirements. OEM Service Custom Tactile Control Graphic overlay Panel Waterproof Membrane Switch Keypad;	Model Number:	ODM;
Printing:	Screen printing;	Package Preview:	;
Size:	Customized Size Accepted;	Place of Origin:	Jiangsu China;
Feature:	Waterproof/UV resistance,ect;	Port:	Nanjing;
Supply Ability:	5000000 Piece/Pieces per Month Tactile Control Panel Waterproof Membrane Switch Keypad;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Thickness:	Customizable;	Product name:	Tactile Control Panel Waterproof Membrane Switch Keypad;
Color:	Pantone, RAL;	Application:	Home Appliance,Remote Controller,Telecommunication Equipment,ect.,Telecommunication Equipment,ect.;
Material:	PET/PC/PVC;	Back adhesive:	3M467,3M468,3M9080A;
Keypad Button Material:	PET;	Brand Name:	OEM;
Certificate:	ISO9001,Rosh,REACH;

OEM Service Custom Tactile Control Graphic overlay Panel Membrane Keypad

Feature

Part	Ordinary Material
Graphic Overlay		Finish	Specification
	PC	Gloss	0.175/.25/.35/.5 mm thickness
	PC	Matt	0.175/.25/.35/.5 mm thickness
	PET	Fine Texture	0.15/.20 mm thickness
		Valet Texture	0.15/.20 mm thickness
		Gloss with Hard Coat	0.18 mm thickness
Top Adhesive	PET Double-sided Tape		0.10/.125mm
	Paper Double-sided Tape		0.10mm
	Transfer Tape		0.06/.12mm
Retainer	PET	Gloss	0.125mm
Spacer	PET Double-sided Tape		0.225/.275mm
Circuit Layer	PET	Gloss	0.125mm
Rear Adhesive	Paper Double-sided Tape		0.10mm
Rear Adhesive	Transfer Tape		0.06/.12mm
Connector	Pin		Metal,Male/Female 2.54mm
Connector	House		Female,2.54mm
Conductive Layer	Silver Paste		Acheson ELECTRODA 820B
	Carbon Paste		Acheson ELECTRODA 423SS
	Insulation Ink		Acheson ELECTRODA 452SS

Electrical Performances
Wire Resistance	0.5mm width,<1Ω/cm	Rated Current	25-100mA,0-30V DC
Insulation Resistance	>100MΩ 250V DC	Working Voltage	<50V DC
Non-tactile Switch	0.1-0.4mm	Tactile Switch	0.4-1.0mm
Working Life	>1 million times	Working Temperature	-40℃-70℃
Working Humidity	40℃,98%RH No Influence	Substrate Voltage	1500V DC
Feed backTime	10ms	Tail Folding	R>1,180

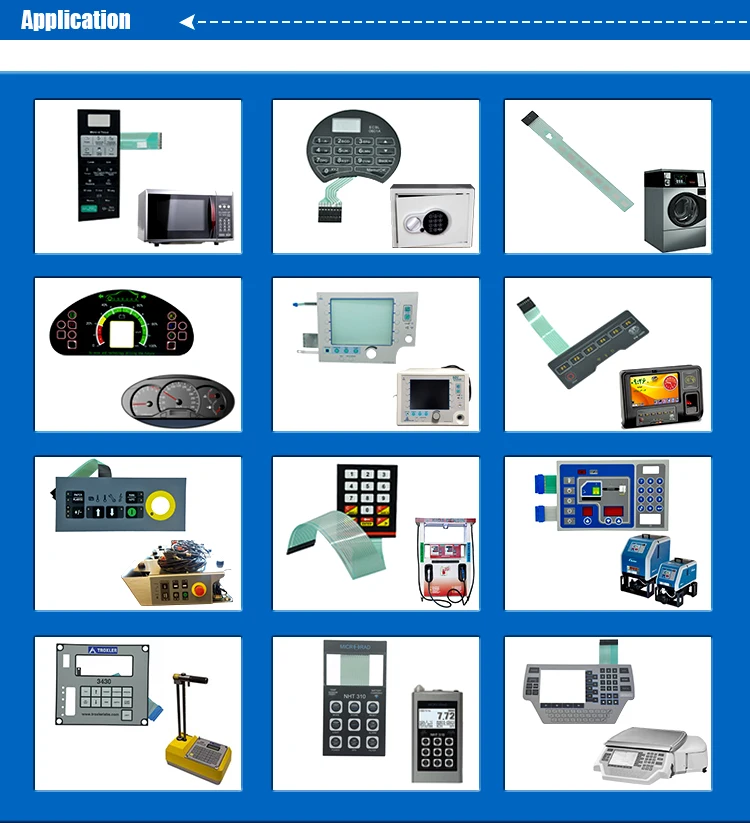

Application Areas

Related Products

Certificates

1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 15~20 days after payment received.
5. Payment terms:100% T/T in advance.

Tel:+86-25-52104047-806
Fax:+86-25-52104047-800

Website:www.flexkys.com
Trade manager:flexkys
