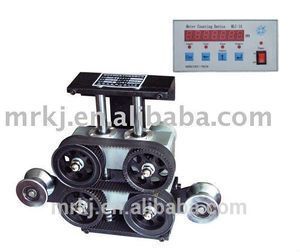

Cable length measuring device (Model:CCDD-30L)

Product details
Payment Terms:T/T;Place of Origin:Henan China (Mainland);
Delivery Detail:In three days after getting your payment;Packaging Detail:Carton or Wooden Box;
Supply Ability:300 Piece/Pieces per Month;Model Number:CCDD-30L;
Brand Name:Mercury-tech;Color:Black;



CCDD series belt type counter will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.





Features



1.Designed for wire and cable pipe meter and design process, high precision.

2.LED display is clear and easy reading.

3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .

4. High accuracy,up to +/- 0.1%

5. Positive or reverse two-way adjustable counting

6. Emergency power down data protection

7.CCDD-150L is specially designed with air cylinder unit.

8.Counter support height can be adjusted to adapt to different heights of the production line.

9. The position of decimal point on display is adjustable..

10. Standard Belt,easy to find replacement belt in market.

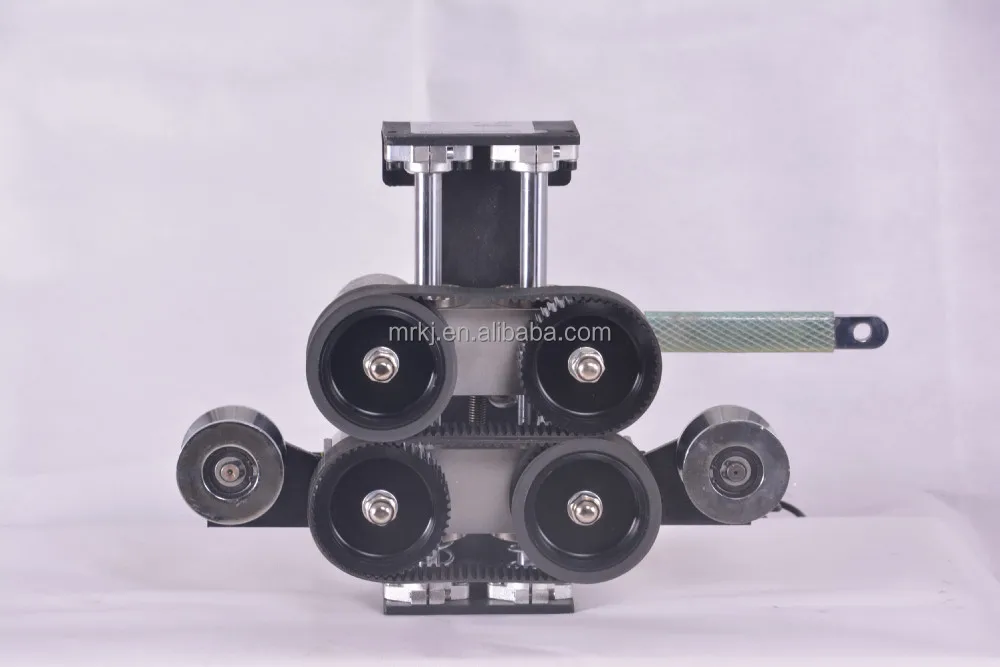

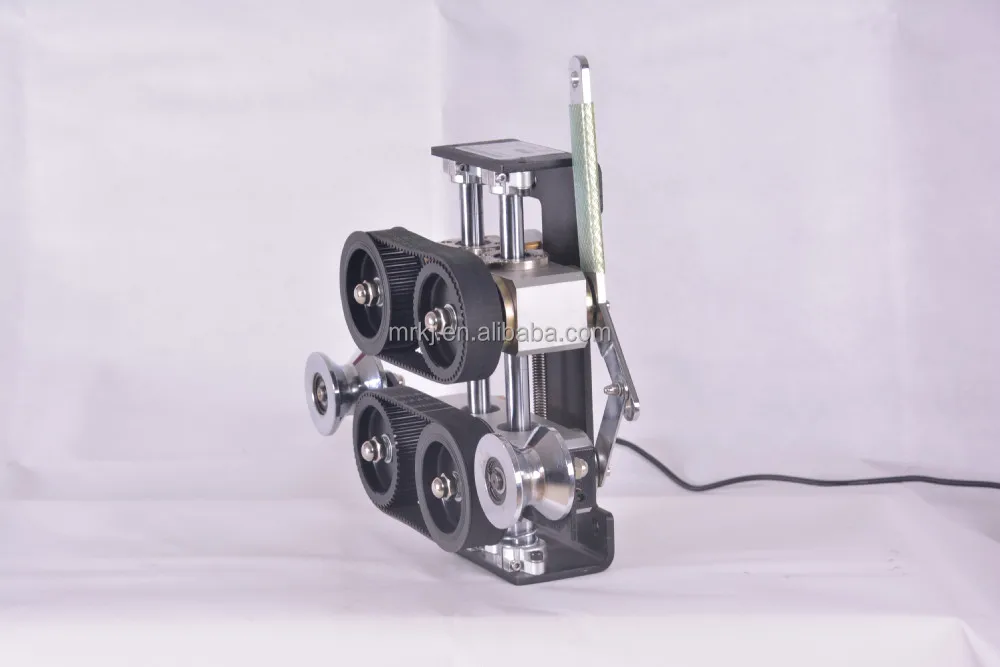

Cable length measuring device (Model:CCDD-30L)



Technical parameters:

Model

CCDD-30L

CCDD-60L

CCDD-150L

Measuring Range

3-30mm

3-50mm

3-150mm

Max Counting Length

9999999

999999

999999

Max Total Length

0-99999.99

0-99999.99

0-99999.99

Accuracy

+/- 0.1%

+/- 0.1%

+/- 0.1%

Dimension

410x180x1200mm

430x225x1200mm

490x370x590mm

Total Net Weight

17KG

22KG

55KG

Max Measuring Speed

400 m/min

400 m/min

400 m/min

Relay Output

2

2

2

Alarm Output

Yes

Yes

Yes

Display digits

7 digit

7 digit

7 digit

Length Measuring Unit

Meter

Meter

           Meter

Calibration

Yes

Yes

Yes

Decimal Point Shift

Yes

Yes

Yes

Length Preset

Yes

Yes

Yes

Ahead of Preset Output

Yes

Yes

Yes

Control Preset

Yes

Yes

Yes

Emergent Data Protection

Yes

Yes

Yes

Two-Direction Counting

Yes

Yes

Yes

Ft Measuring Unit

Option

Option

Option

RS485

Option

Option

Option

Power Consumption

<10W

<10W

<10W

Voltage

220V

50/60HZ

220V

50/60HZ

220V

50/60HZ









Model:CCDD-30L



The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm



Company Information

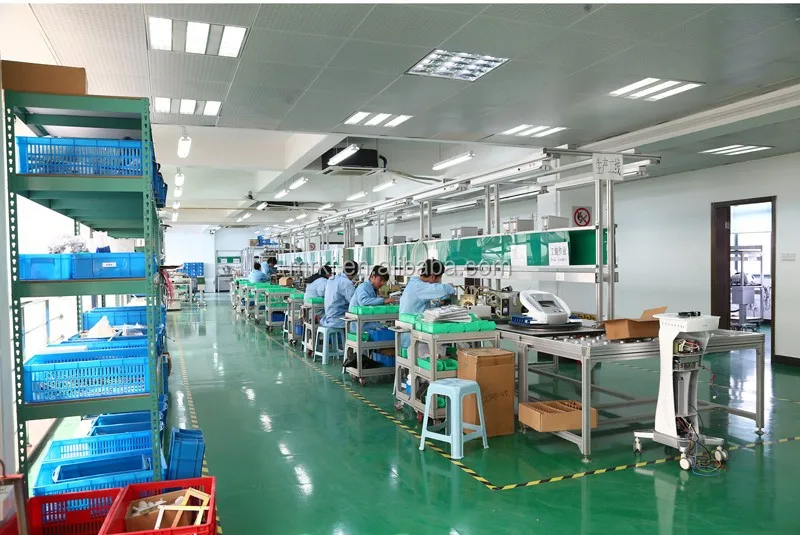

Zhengzhou Mercury-Tech Co., Ltd.was founded in 1987, in laser measurement industry, Mercury-Tech’s products have successfully been used by a number of global enterprises and Fortune 500 companies, such as the Teledyne Technology, TE, Goodyear, Faber Castell, LG, the Darka, Hitachi, Fujikara, Zhejiang University, Beijing University of Science and Technology, Baosheng cable, Shangshang cable. Customers are in 37 countries, such as US, Britain, Germany, France and Japan.
