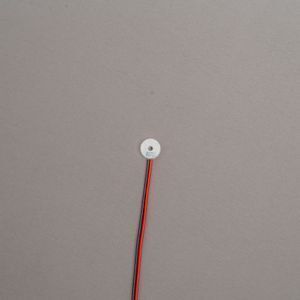

TES1-01702 Round micro thermoelectric cooler peltier module
- 2.00 >=10 pieces
| Place of Origin: | Hebei China; | Supply Ability: | 1000 Piece/Pieces per Week; |
| Keyword: | Cooler peltier; | Type: | Micro thermoelectric module; |
| Name: | Micro thermoelectric module; | Packaging Detail: | White foam cartons with cartons; |
| Pack: | White foam cartons with cartons; | Brand Name: | Yuxiang; |
| Port: | Tianjin; | MOQ: | 10pieces; |
| Payment: | T/T; | Payment Terms: | T/T; |
| Model Number: | TES1-01720; | Color: | White; |
| Port: | Tianjin; | Delivery Time: | Shipped in 15 days after payment; |
| Package Preview: | ; |
Micro mini dehumidifier thermoelectric cooling peltier module tes1-01702
| Model NO. | Imax A | Tmax ℃ | Vmax V | Qmax W | Dimensions mm |
| TES1-01702 | 2 | ≥64℃ | 2 | 2.4 | OD.13 ID.3*3.4 |
| TES1-04103 | 3 | ≥64℃ | 4.8 | 7.85 | OD.25 ID.4*3.6 |
| TES1-04106 | 6 | ≥64℃ | 4.8 | 15.7 | OD.25 ID.4*2.8 |
| TES1-04902 | 2 | ≥64℃ | 5.78 | 7.9 | OD.26 ID.10*4.0 |
| TES1-04903 | 3 | ≥64℃ | 5.78 | 9.5 | OD.26 ID.10*3.6 |
| TES1-04905 | 5 | ≥64℃ | 5.78 | 16.6 | OD.26 ID.10*3.2 |
| TES1-05703 | 3 | ≥66℃ | 6.68 | 11.0 | OD.34 ID.18*3.6 |
The correct installation/assemble method.
1.There is cooling fin in one side of the peltier cooling module, and the other side install cooling system, the planeness of the install surface can’ t over 0.03mm,the surface need to be deburred and clean the dirty.
2.The module, cooling fin and cooling system should contact with each other very well, the touch surface need cover with heat-conducting glue.
3.Locate the module, apply the force evenly, make sure not over-force, avoid crushing the module.
The correct working condition.
1.Use direct-current main, the voltage do not over the nominal voltage. The power supply ripple under 10%.
2.The electric current can’t over rated current.
3.Do not give a backward voltage suddenly when the module is working(after 5 min can do this)
4.Not into the water inside of the module.
5.The humidity around the module do not over 80%.
