FRP GRP Pipe Filament Winding Machine

Product details
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Production Capacity:6-10 pcs/hour;
Video outgoing-inspection:Provided;Warranty of core components:2 years;
Voltage:380V,440V or customized;Application:FRP pipe production,water supply & drainage;
Package Preview:;Single package size:1000X200X250 cm;
Dimension(L*W*H):15000*2450*11750mm;Type:Automatic,Pipe Production Line;
Weight:5-15T,Customers' Requirement;Name:frp filament winding machine;
Types of pipes:Pipe Production Line;Product:FRP pipe, FRP tank, FRP tower;
Diameter range:DN14-DN10000;Pipe Material:frp;
Single gross weight:1000.0 KG;Warranty:2 years;

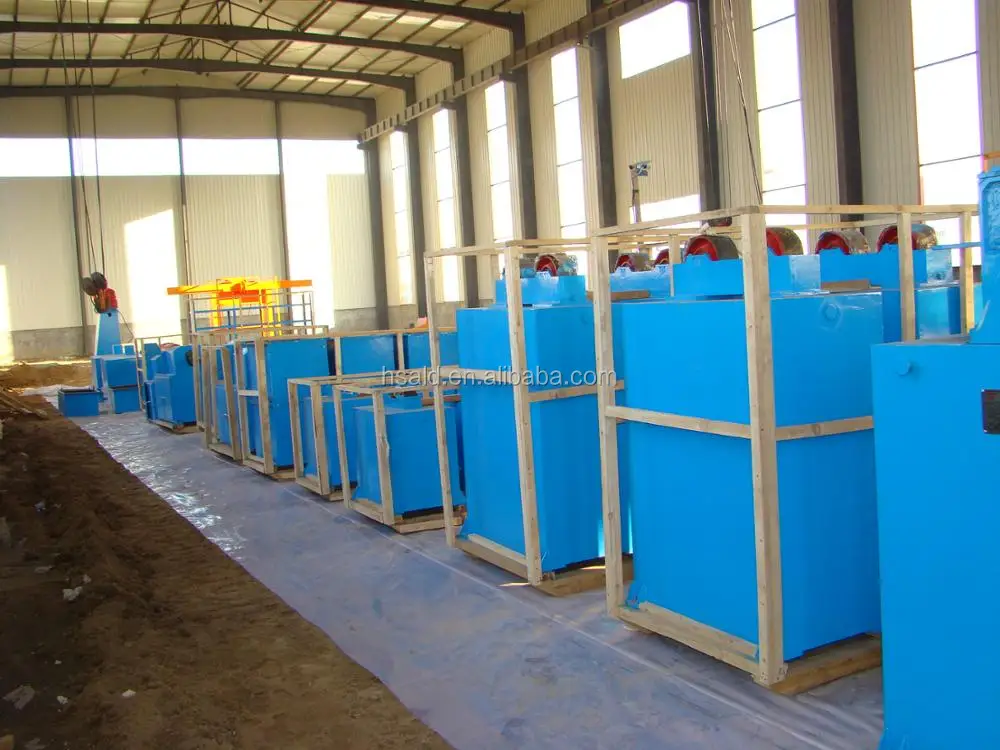

Packaging Detail:wood pallet;Machinery Test Report:Provided;
Certification:ISO;Power:5.5-30kw;
Brand Name:ALD;Condition:New;
Local Service Location:Philippines,Peru,Indonesia,Pakistan,Spain,Malaysia,Colombia,Algeria,South Africa;Showroom Location:Italy,Philippines,Peru,Indonesia,Argentina,Chile,Colombia,Algeria,Uzbekistan,Malaysia;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Key Selling Points:Pipe Production Line;
Pressure range:PN1-PN32;Range of Product:DN14-DN10000;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Selling Units:Single item;
Marketing Type:New Product 2020;Place of Origin:Hebei China;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Usage:FRP tank filament winding equipment;

Whole set of computer control filament winding machine and auxillary equipments

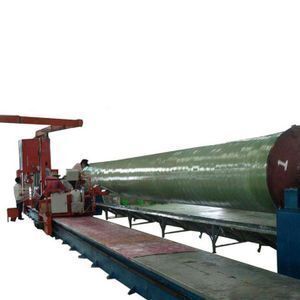

1. QFW-2500 FRP/GRP pipe filament winding machine

1.1 The main parameters

a.  The total power: 193.6kw

b.  The maximum diameter can be manufactured: DN4000mm

c. The effective length of the pipe: 12000mm

d.  The productivity: 1000kg/h

e.  The baking board’s temperature of curing station: 105~160 ℃

1.2 it consists of six components,

1.2.1 Inner liner-making machine

1.2.2 computer control mortar-adding fialment winding machine

1.2.3 curing station

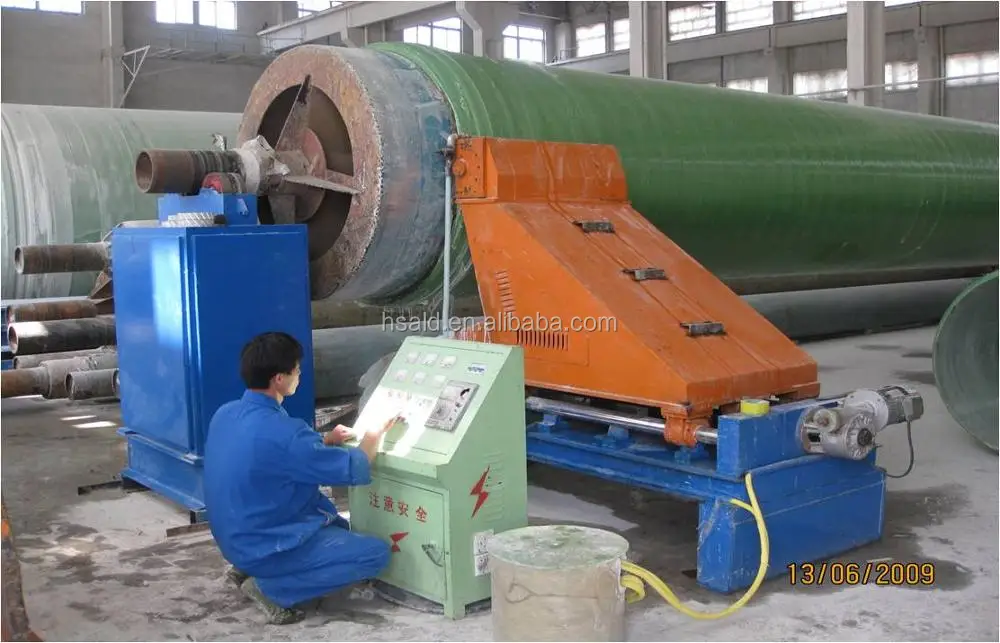

1.2.4 Trimming machine

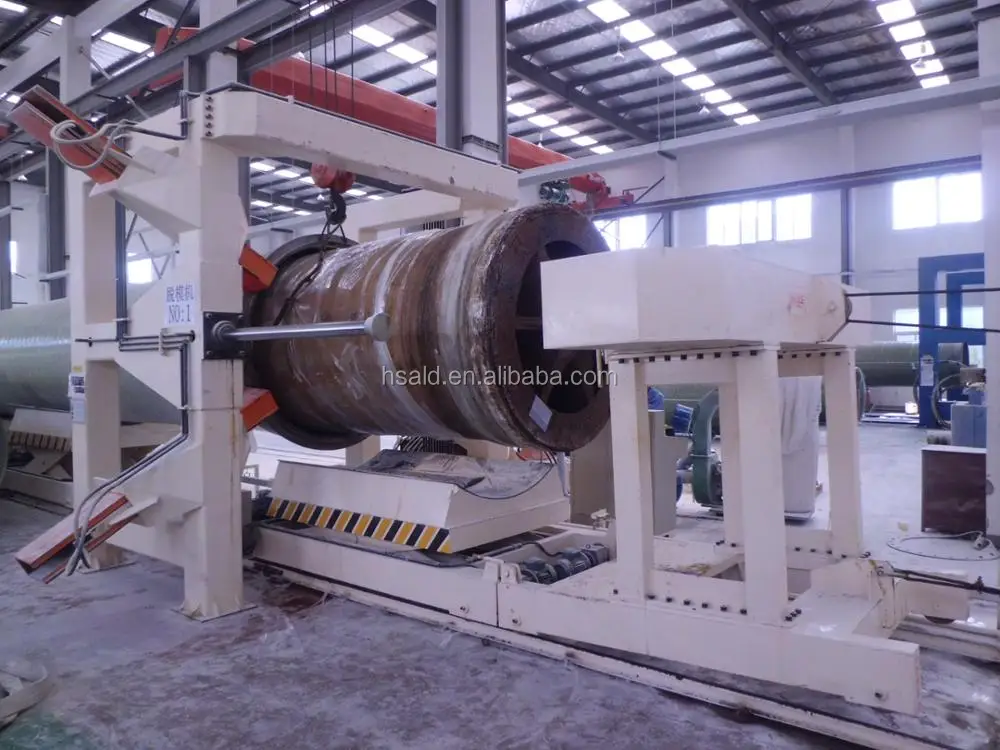

1.2.5 Demolding machine

1.2.6 Resin mix station

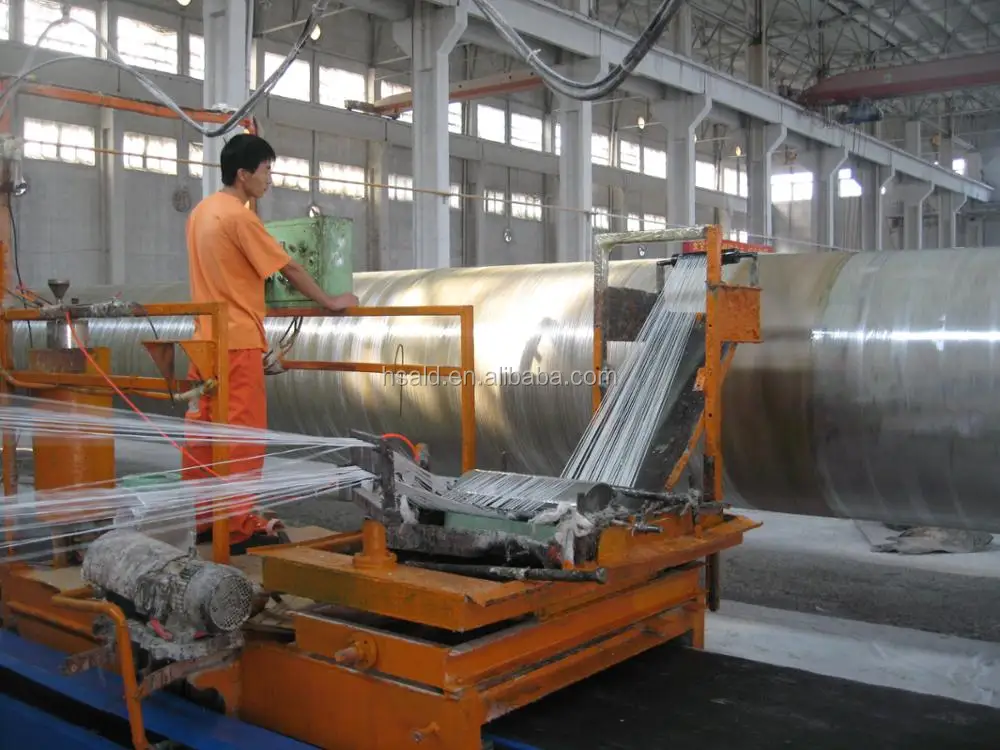

2. FW-4000Ⅲ computer control filament winding machine

2.1 Technical parameters:

a.  The range of diameter can be wound: DN600~ DN4000mm

b.  The maxi length:  12000mm

c. The winding angle: 45°<α<90°

d. The total power: 10kw

e.  The tolerance of positioning:  <1mm

f. The maxi width of roving sheet: 150mm

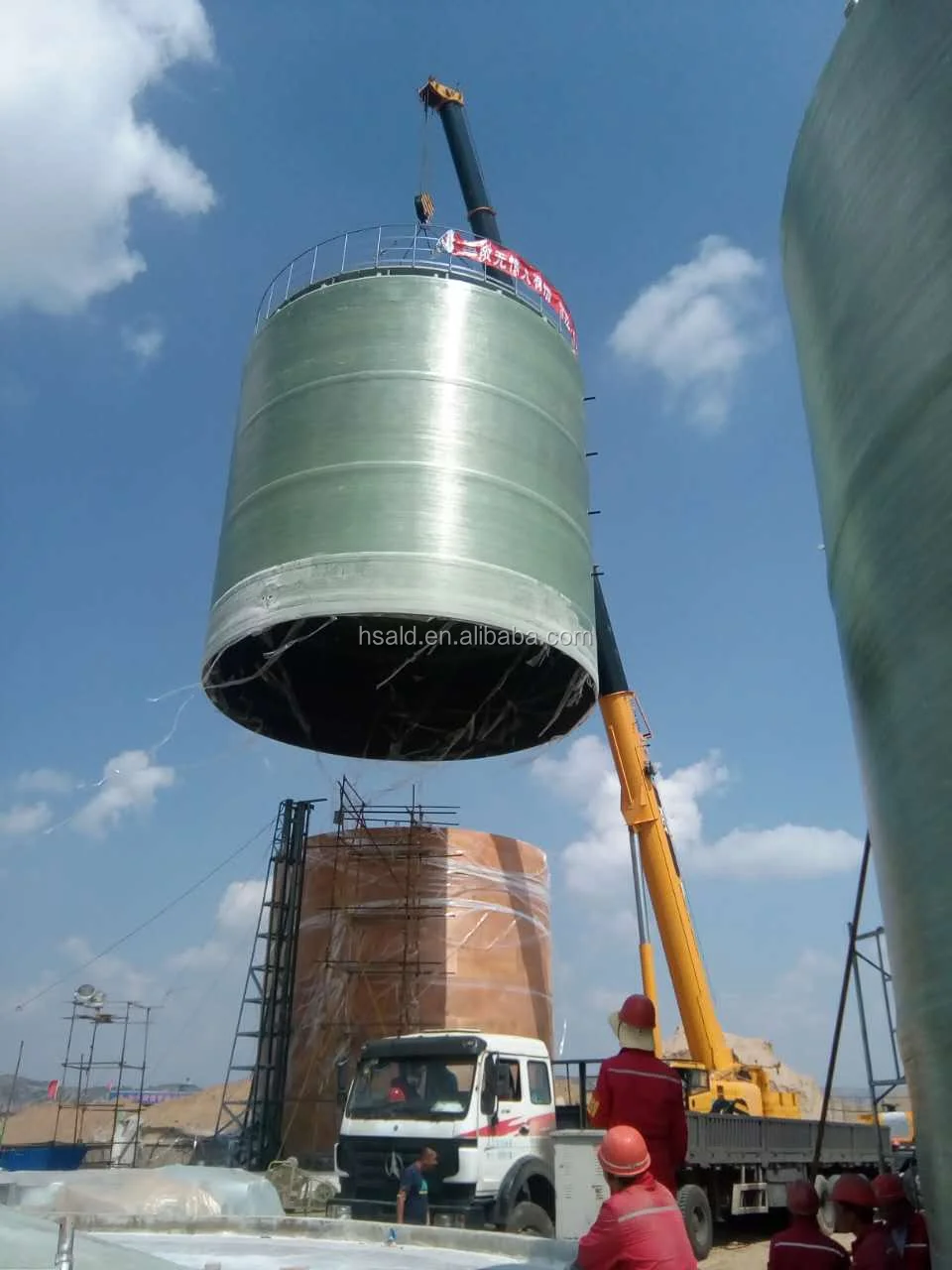

3. Vertical FRP tank production line on site

a. The maxi diameter can be wound:  15000mm

b. The maxi length can be wound: 12000mm

c. The range of diameter: DN4000~DN15000mm

d. The maxi torque:  68350N·m

e. The maxi width of roving sheet: 1680mm

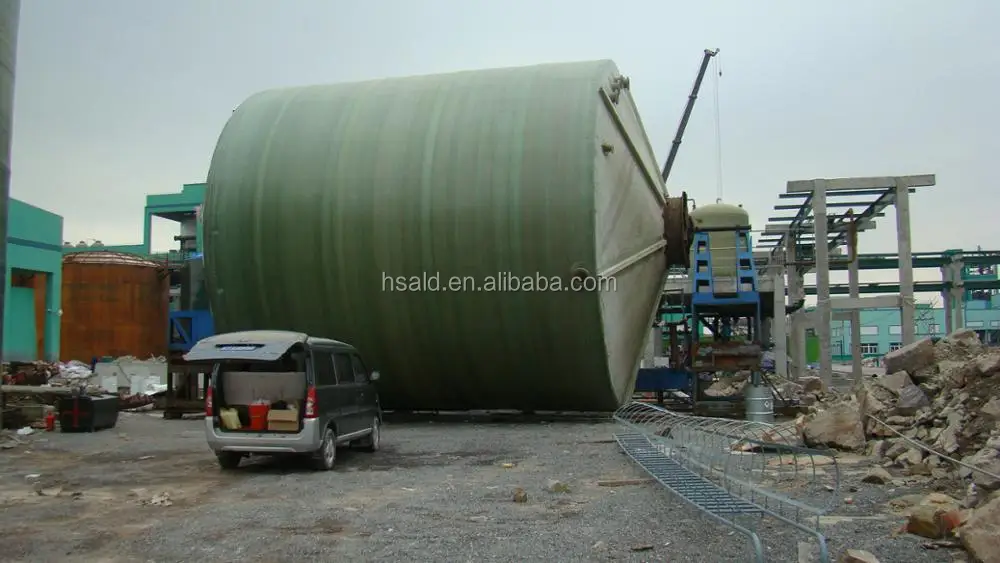

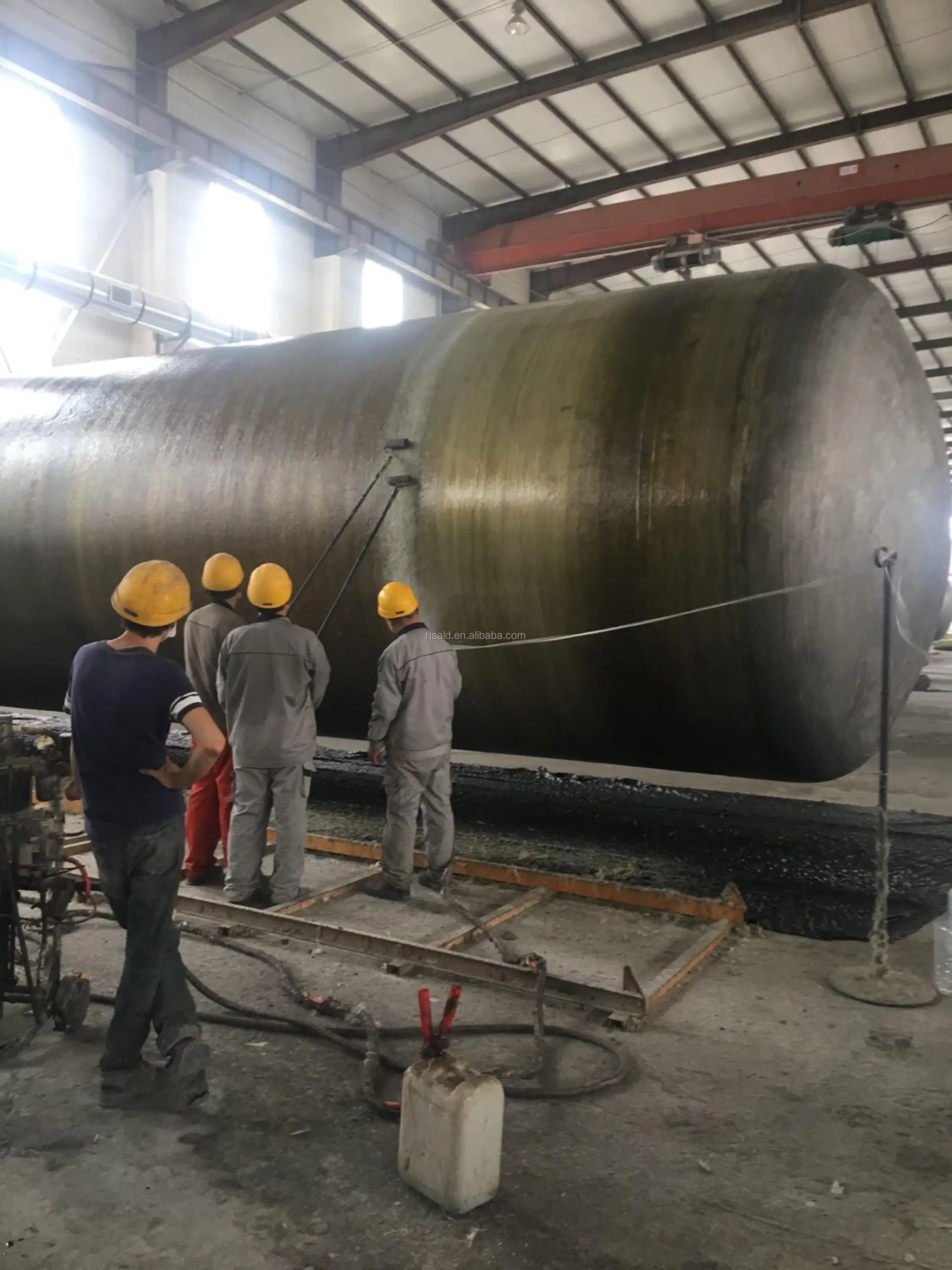

4. Horizontal FRP tank filament winding machine at site

a. Winding diameter range: 4m-25m

b. Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )

c. Winding angle: 60°-90°

d. Max rotating speed of the mandrel: 4.6rpm

e. Woven roving strands: 70*

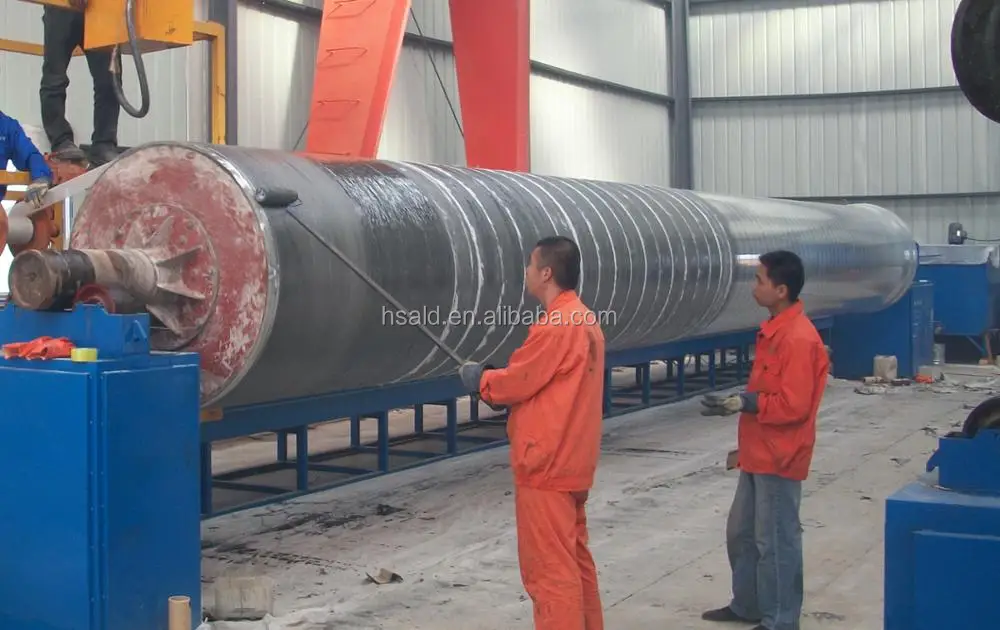

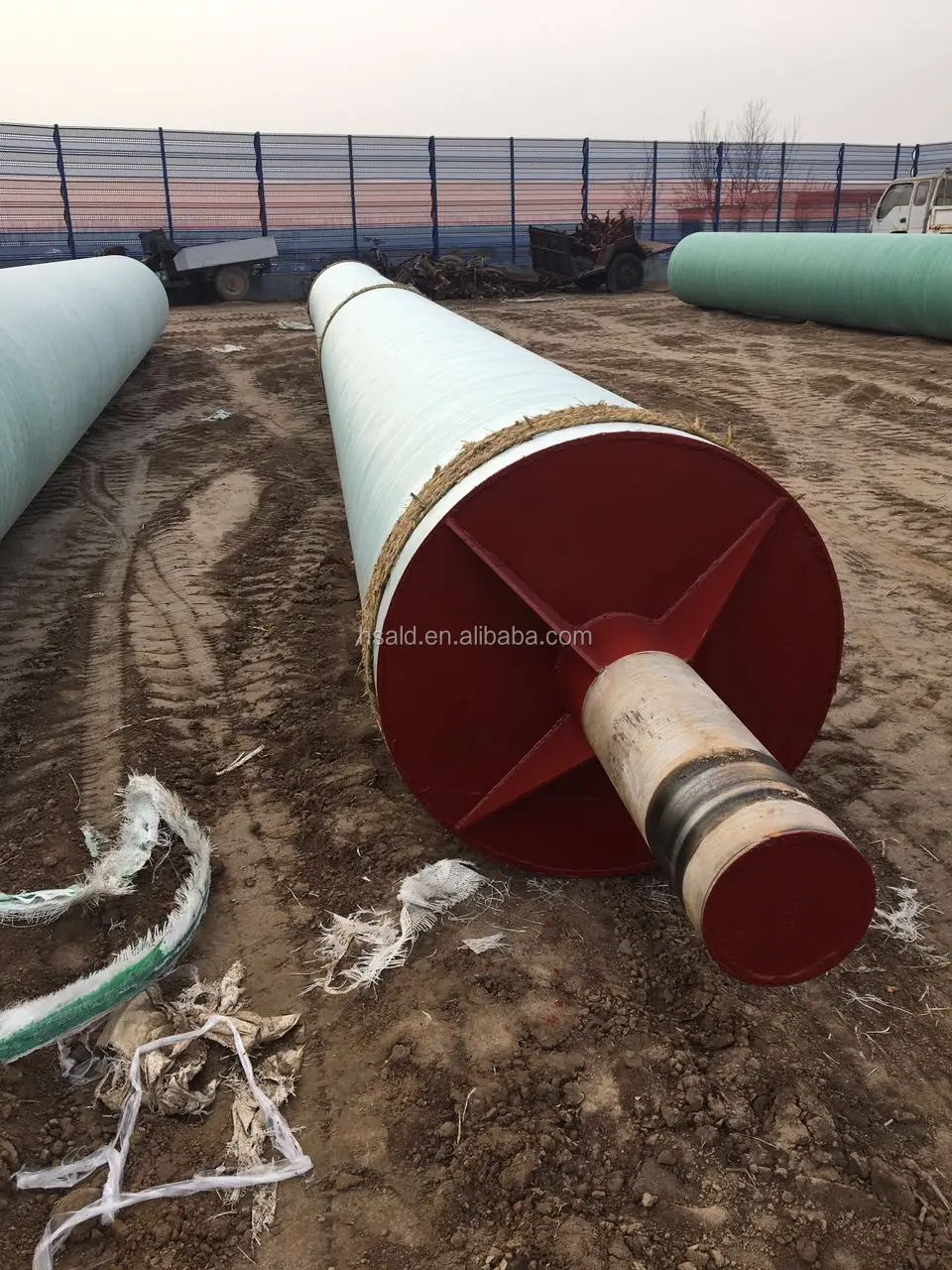

5. steel molds for FRP pipe & grp tank

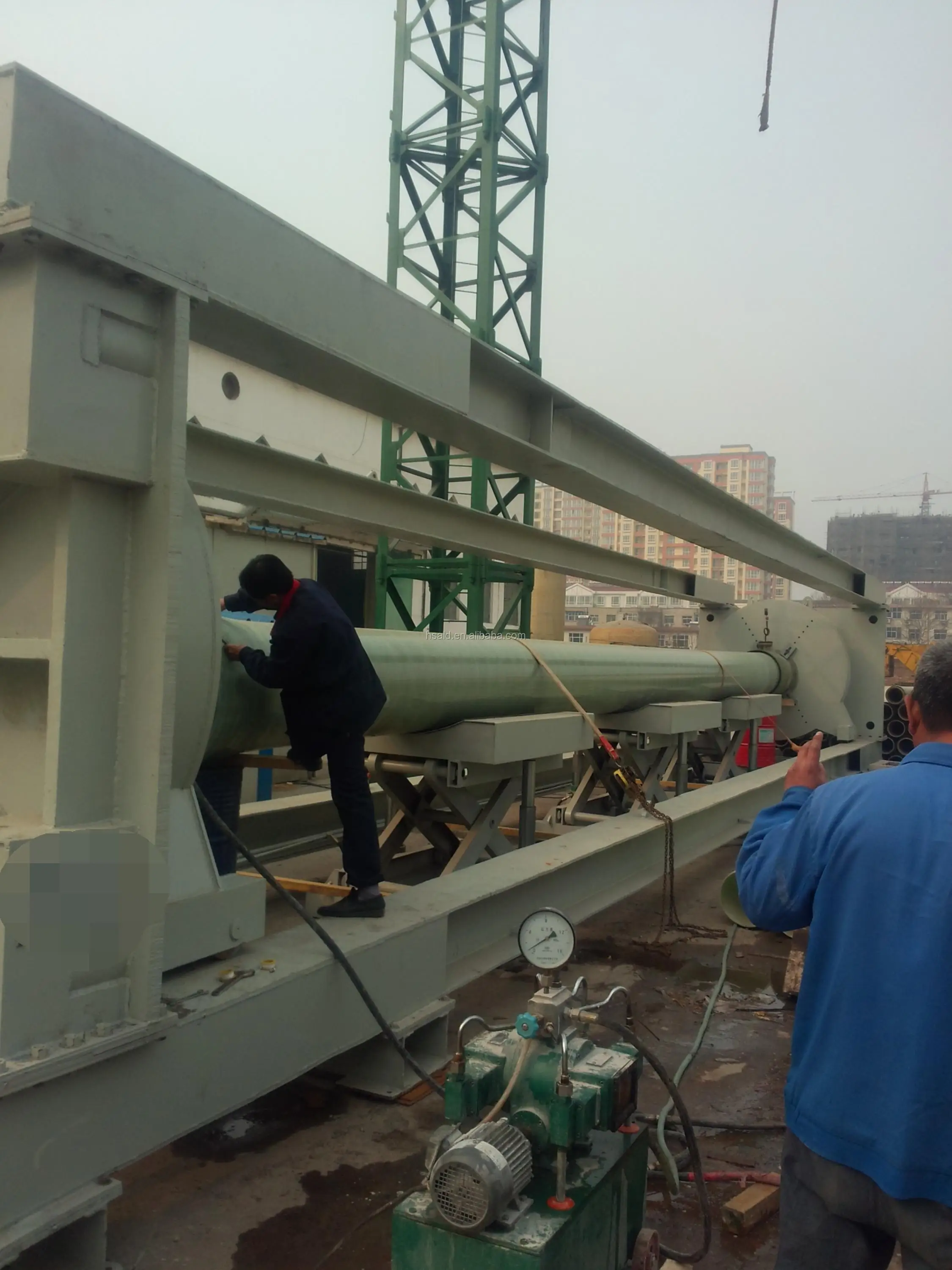

6. Hydrotest machine for FRP pipes

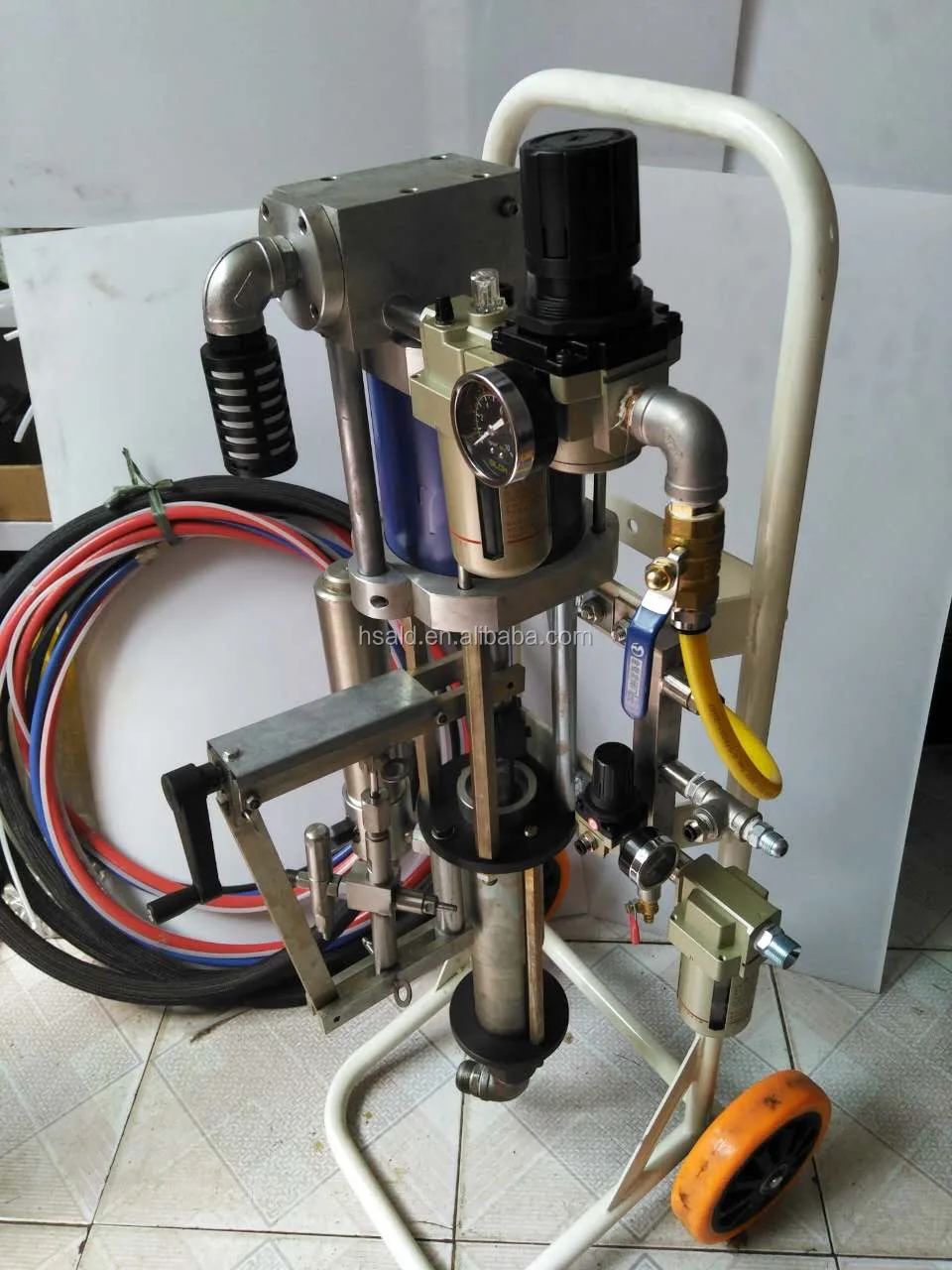

7. Resin & fiberglass mixing and spraying gun

      B2 type spraying machine:

Technical parameters:

Spraying of resin: 3.5-5kg/min

Spraying of fiberglass: 1.5-2.5kg/min

Pressure ratio: 18:1

Adjustment ratio of curing agent: 0.8-3%

Working air pressure: 0.3-0.7 MPa

Consumption of air: 50-500L/min

Company Information

Hengshui Aoliande Trade Co., Ltd. is professional company which to market & sell FRP Pipe, FRP storage tank, FRP molded products, FRP pultrused products and FRP production machines, through the continuous development and introduction of professionality and technology, the company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 management system certification, now we have 50+ staff, annual sales of glass fiber reinforced plastic series products achieved 5,000,000 USD, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Egypt etc, and won the support and trust from new & old customers..

Major products:

FRP vessel and chemical

equipment in sets;

FRP high, medium & low pressure pipe

FRP septic tank

FRP molded & pultrused products

Electrolytic cell S/F, F/F oli storage tank

Whole set of FRP prodcution machines

Hengshui Aoliande Trade Co.,Ltd. not only have ability to sell & supply products, but also has design ability of material,

structure and products, our company can provide customers with technical advice, supply of goods and material, transportation,installation supervision etc service.

Main application:

Urban water supply and drainage

Desalination of sea water

Chemical industry

Metallurygy Brewing

Electric power

Oil storing

Sewage treatment

Building Municipal works

Highway facilities

Our customers and certificates





FAQ



Q: Are you a commercial company or manufacturer?
A: We are a company with commercial company and factory together. Our trading company is called Hengshui Aoliande Trading Co., Ltd and the factory is called Hengshui Jiubo Composites Co., Ltd.

Q: I didn't see the dimension information or find the size I need, can you do it according to my requirements?
A: For FRP products, all dimensions can be customized. We can do it at the customer's request.

Q: How long is the delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the products are not in stock, it is according to the quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but not pay the freight cost.

Q: What are your payment terms?
A: Payment <= 1000USD, 100% in advance. Payment> = 1000USD, 30% T / T in advance, balance before shipment.
