8mm pneumatic fitting Brass fog nozzle,outdoor low pressure misting nozzle with fitting
- 0.65 >=30 pieces
| Tubing size: | 8mm; | Port: | Shenzhen; |
| After Warranty Service: | Online support; | Thread Type: | 3/16"; |
| Video outgoing-inspection: | Provided; | Orifice Size: | 0.15mm to 0.5mm; |
| Local Service Location: | Canada; | Applications: | Cooling,Humidifying; |
| Meterial: | BRASS; | Place of Origin: | Guangdong China; |
| Supply Ability: | 1000000 Piece/Pieces per Month; | Payment Terms: | T/T,Western Union; |
| Spray angle: | 60 degrees; | Machinery Test Report: | Provided; |
| Fitting: | 3/16" pneumatic fitting; | Condition: | New; |
| Showroom Location: | Canada; | Applicable Industries: | Manufacturing Plant; |
| Marketing Type: | Ordinary Product; | Brand Name: | Mebon; |
| Working pressure: | 5bar - 20bar; | Item: | FDS low pressure fog nozzle; |
| Feature: | High life,good price; | Packaging Detail: | Standard carton packing; |

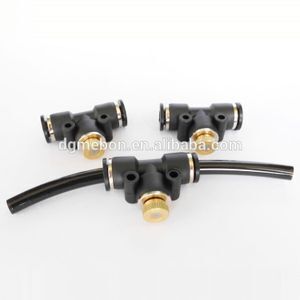

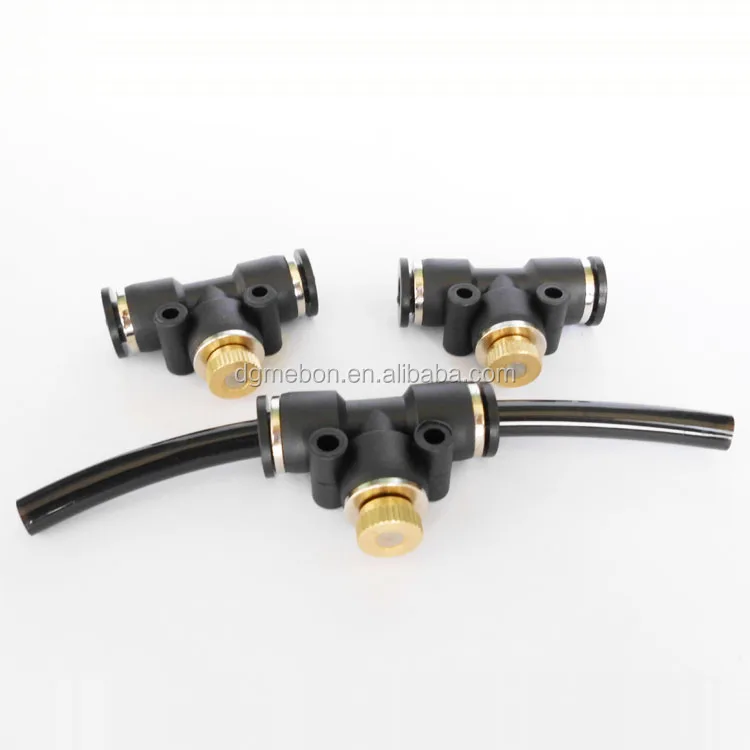

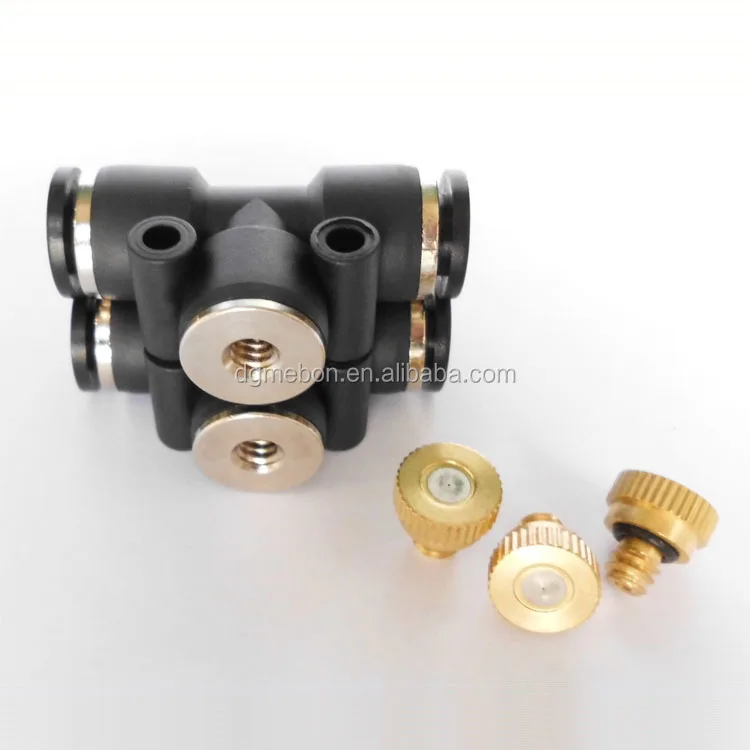

brass fog tips with 8mm pneumatic fitting,outdoor mist nozzle with fitting
Product Description
- Metal fog spray nozzle consists of brass body with SS orifice.
- The liquid flows at high velocity under the water pressure of 5 to 20 bar, spraying very fine droplet.
- The fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The imported US punching machine punches orifice about 0.15 to 0.5mm in size.
- The nozzle saves 10 times or above cost than that of moistening by air.

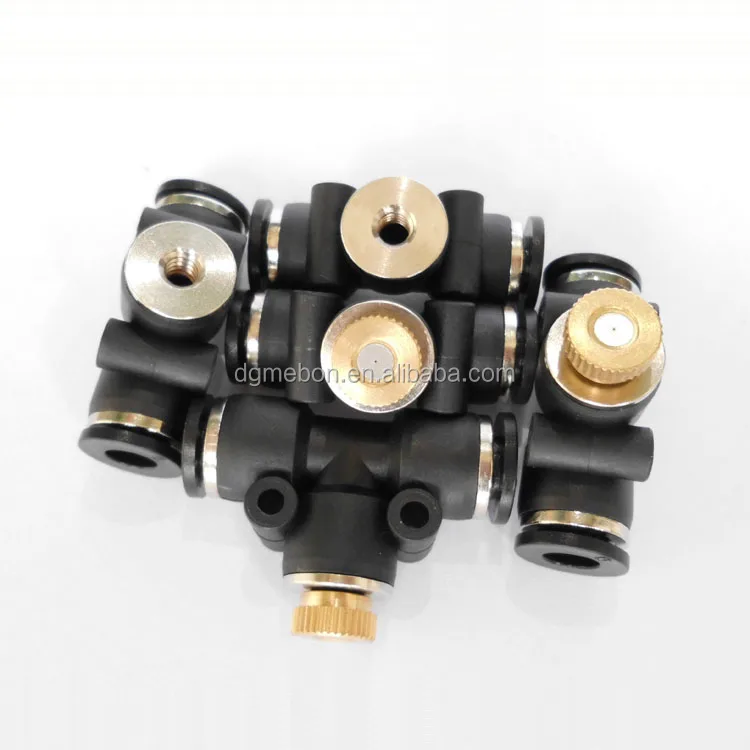

- 3/16" pneumatic fitting,link with 8mm tubing
|
Type |
Orifice |
Thread |
Pressure |
Flow Rate |
|
FDS10 |
0.15mm |
3/16" |
7-20bar |
0.020-0.046L/Min |
|
FDS20 |
0.20mm |
3/16" |
7-20bar |
0.049-0.089L/Min |
|
FDS30 |
0.30mm |
3/16" |
5-20bar |
0.080-0.145L/Min |
|
FDS40 |
0.40mm |
3/16" |
5-20bar |
0.095-0.178L/Min |
|
FDS50 |
0.50mm |
3/16" |
5-20bar |
0.130-0.248L/Min |
Commen Application
1.Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test

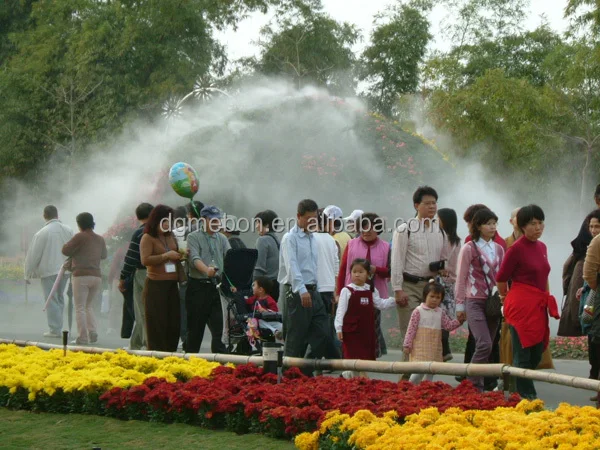

15.Artificial fog

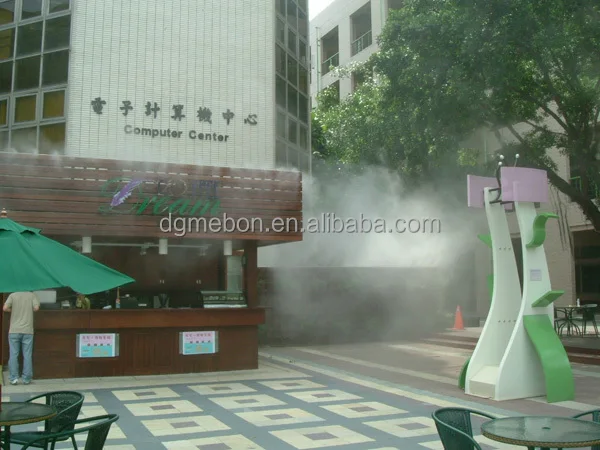

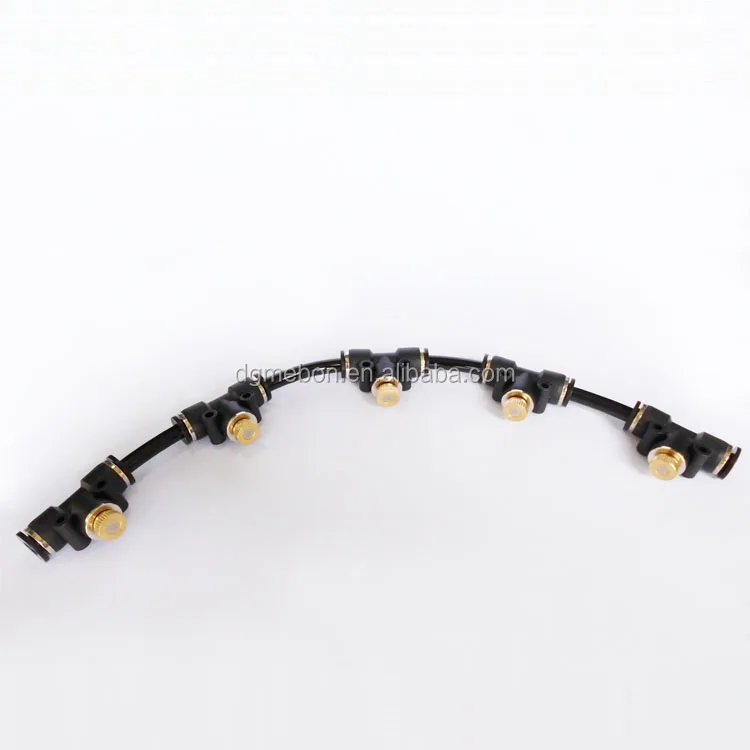

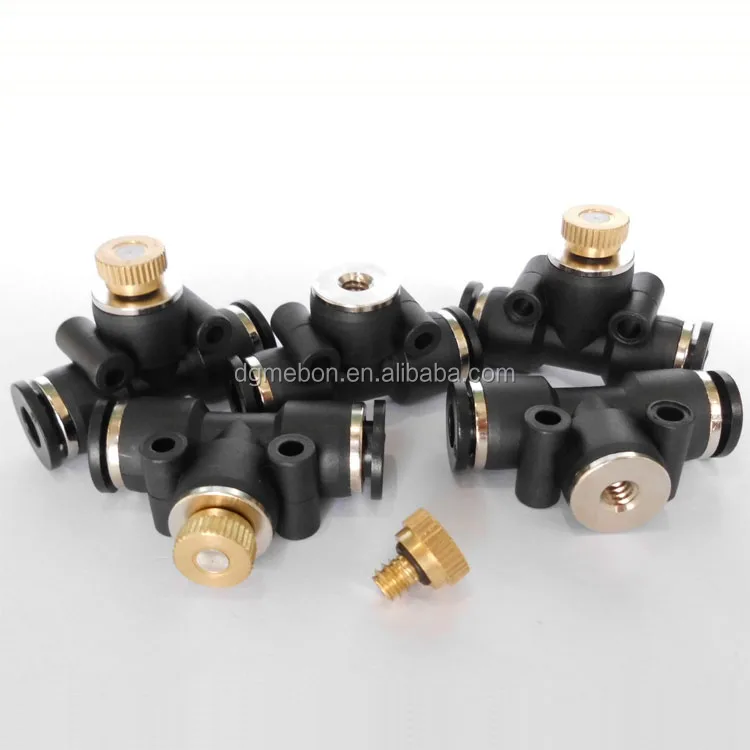

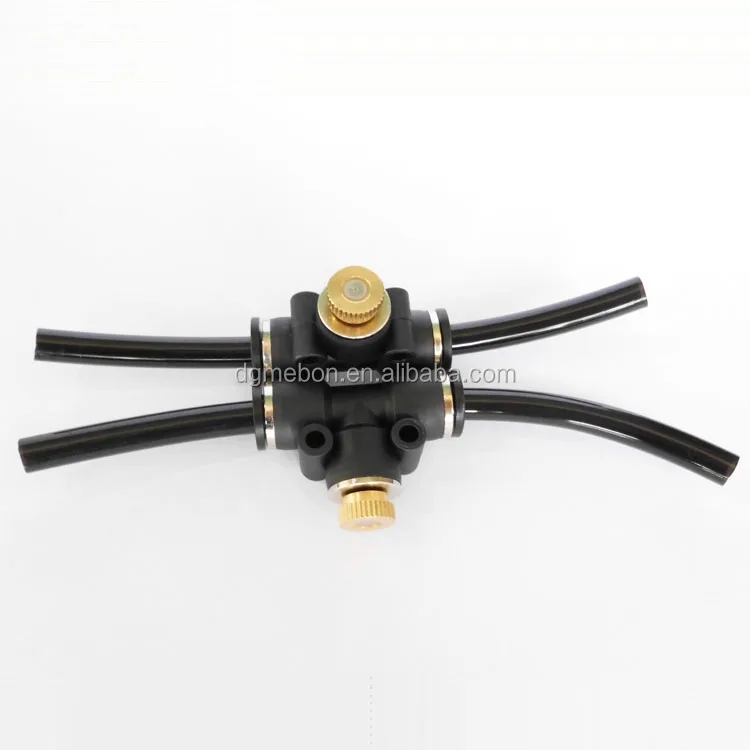

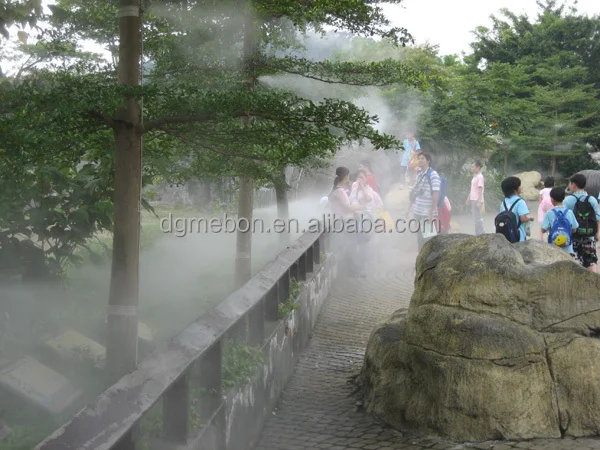

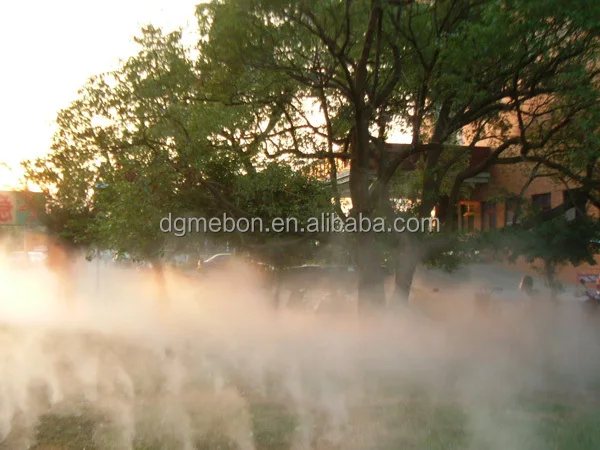

Product Show
Dongguan Mebon Spraying & Purification Technology Ltd. was established in Dongguan in June, 2002. Our company is a professional manufacturer engaged in the design,development and sales of a variety of spray nozzles and filters.
Our company has professional technicians, complete production equipments and high qualified personnel, including 15 engineers, 60 technicians and 2 management staff members. Some of them have 10 years of industrial knowledge and experience about spray nozzles and filters.
Factory Building
Workshop
Packaging
