Elegant appearance large space luxury medium city bus

Supplier: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Ms BettyW Wang
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Shandong China;	Transmission:	5MT;
Dimensions (L x W x H) (mm):	59952098*2920;	Steering Position:	LHD;
Fuel:	Deisel;	Port:	any port of China;
Passenger capacity:	19;	Gear Box:	Manual;
Steering:	Left, Hydraulic power steering;	Payment Terms:	L/C,T/T;
Packaging Detail:	nude;	Brand Name:	Wuling;
Seats:	19;	Emission standard:	China V;
Supply Ability:	1000 Unit/Units per Week;	Size(LWH):	59952098*2920;
Transmission Type:	Manual;	Product name:	Elegant appearance large space luxury medium city bus;
Max speed:	100km/h;	Emission Standard:	Euro 4;
Max Speed:	91 - 110 km/h;	Engine displacement:	2169cc;

Product Description

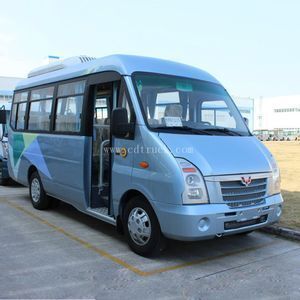

Wuling 19 seats medicum bus is a newly developed product by Wuling and released in 2016.

Wuling 5m lenght minibus is a pathbreaking product filled the market vacancy of branch public transportation, since its launch for years, the bus series have became the market leader in Chinese domestic market. through years of markets and technology accumulation, Wuling successfully developed this 6m length model, it is a great upgrade in various compare to the old models.

Specifications:

Model Item		GL6601CQV (Highway bus)
Model Item		GL6601CQV (Highway bus)
Passenger Capacity		19
Size(mm)	Overall Dimension(LWH)	5995×2098×2920
	Passenger Room(LWH)	509019401887
	Wheelbase	3310
	Tread (F/R)	1763/1580
Weight(kg)	Total Weight(kg)	4950
Weight(kg)	Curb Weight(kg)	3280,3330
Performance	Min Turning radius(m)	6.6
	Max. Speed(km/h)	100
	MIN.Clearance(Fully loaded,mm)	175
	Gradability(°)(Loaded)	16.7
	Overhang(F/R)(mm)	875/1810
	Approach Angle/Departure Angle(°)	24/14
	Composite Fuel Consumption(L/100km)	≤13.5(GB/T 27840)
Engine	Displacement(L)	2.169
	Max.Power, kw/(r/min)	100/3600
	Max.Torque, N.m/(r/min)	300/(1600~2400)
	Emission Standard	China V
	Fuel	Diesel
Transmission		5MT
Suspension(F/R)		Front: Torsion Bar Double Wishbone Independent Suspension; Rear: Leaf Spring+Rigid Drive Axle Dependent Suspension.
Brake		Front disc/Rear drum, air operated, ABS
Steering		Rack and pinion steering gear, hydraulic power steering
Wheel and Tyre		6.5R16LT
Fuel Tank(L)		70
