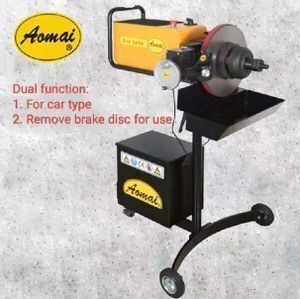

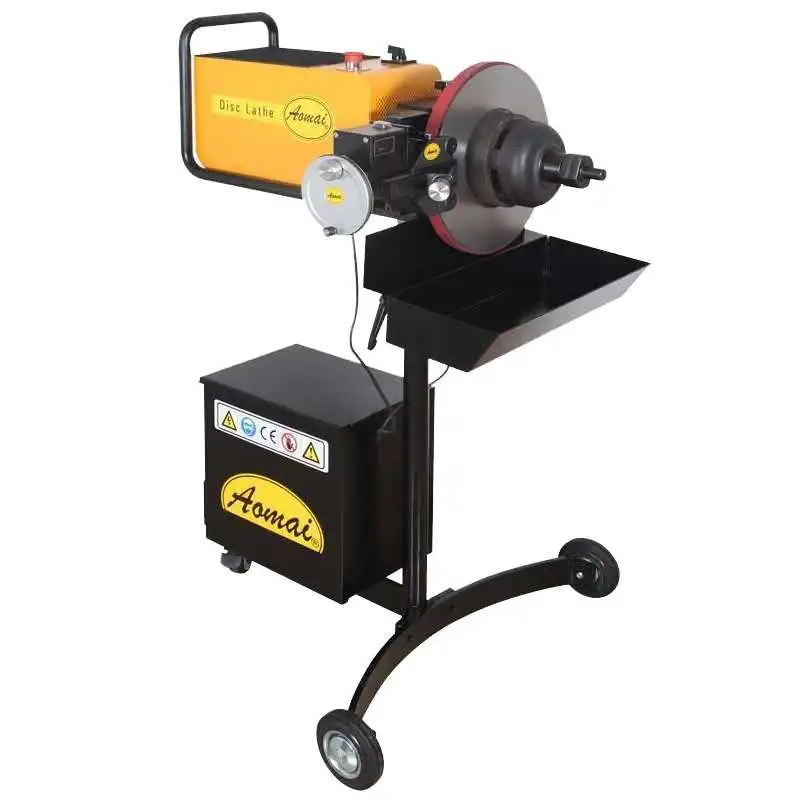

AM-983 Disc and drum brake lather machine for car

Product details
Operating height(minimum/highest):1/1.2M;Warranty:12;
Supply Ability:100 Set/Sets per Month;Place of Origin:Guangdong China;
Brake disc accuracy:≤0.00-0.005mm;Grinding accuracy:≤0.002-0.005mm;
speed:98rpm;Surface roughness of brake disc:Ra1.5-2.0μm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Brand Name:AOMAI;
Thickness deviation of brake disc:0.005-0.01mm;The net weight:70KG;
Packaging Detail:860*480*450mm 910*510*310mm;Port:China GuangZhou;
Ambient temperature:-25℃~50℃;
Product display

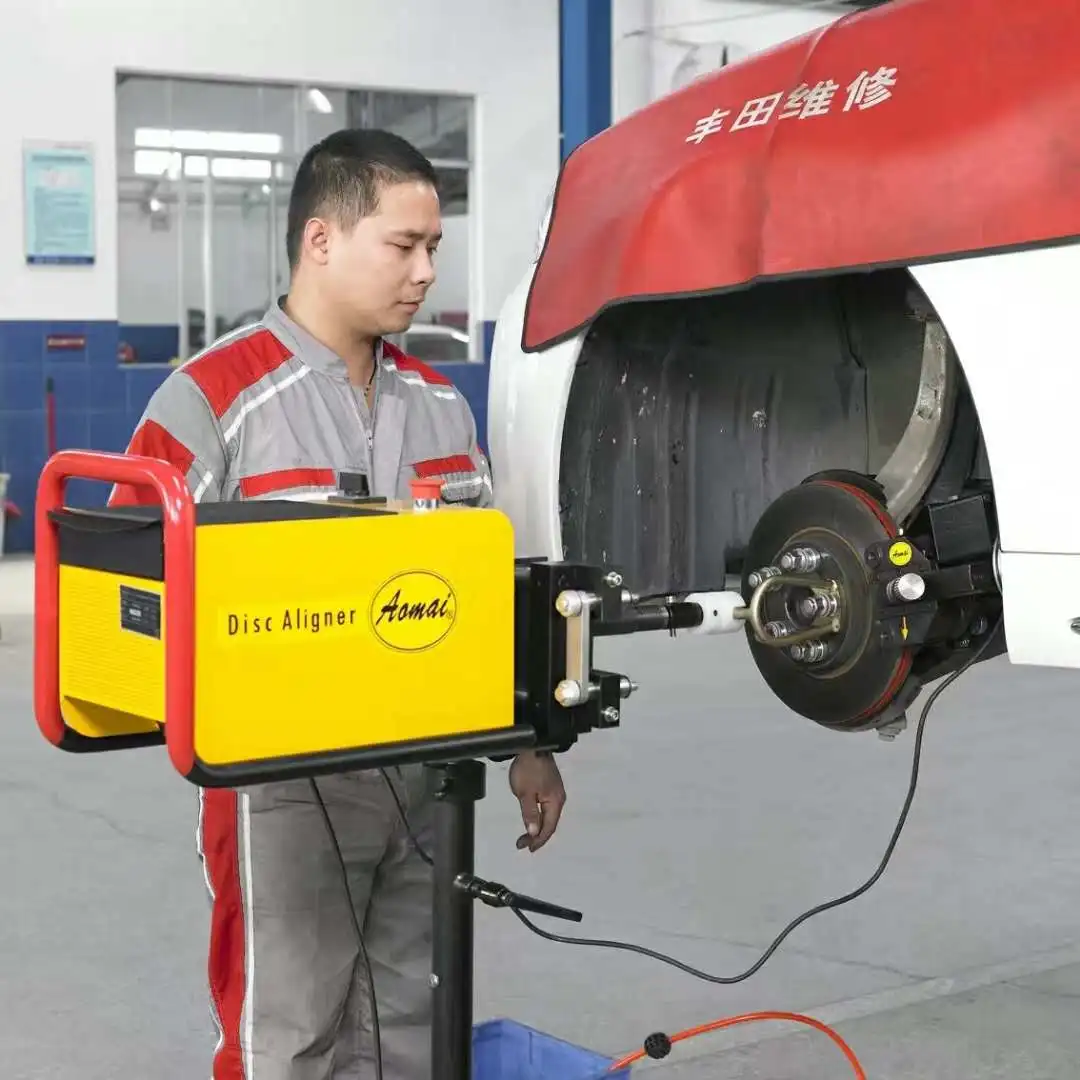

  AOMAI CD-ROM comes from Germany and is suitable for all kinds of automobile repair factories, renovation centers, 4S stores, tire sales stores, fast maintenance stores, etc. This CD-ROM is suitable for all kinds of brake discs, whether original or refitted, perforated, scratched, rusted, deformed brake discs can be corrected and repaired.

Product function

1. Brake pedal jitter: usually drive the new car after a few hundred miles or replace new brake discs of a mileage, caused by brake disc face runout tolerance exceeds bid brake pump back, form a cyclical hydraulic back effect, at the same time due to the high temperature pulse brakes, the brake plate of internal stress release, causing the brake plate deformation, cause the brake pedal jitter and the steering wheel vibration.

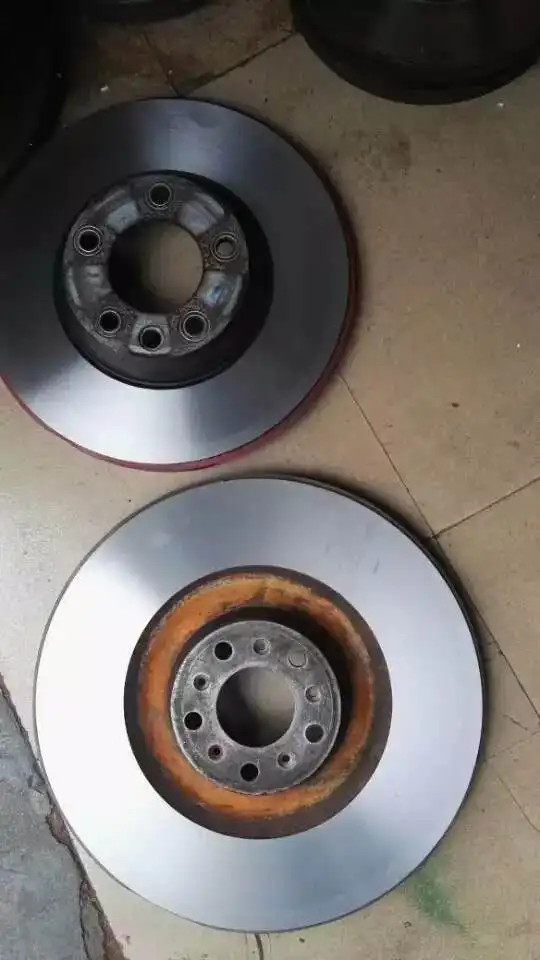

2. Rust: the rusting of the brake disc is caused by the long-term storage of the vehicle. In addition, some of the rust is caused by the chemical action of salt gravel, which makes the surface of the brake disc rough and uneven and affects the braking effect.

3. Brake offset: due to thick road dust, grease, brake debris and basic rust, a layer of friction coefficient is often different from the previous surface layer, resulting in unequal friction between the corresponding two wheel brake discs, causing the brake to run off, and sometimes accompanied by sharp noise.

Product Parameter



Host parameters
Product NameDual function brake disc repairing machine
Product ModelAM-983
Project introductionAM-983 Driver
Maximum diameter of brake disc500mm
OperatingHeight(Minimum/Maximum)0.78/1.2m
Driving speed150rpm
Motor power450/750W
Electrical specifications220V/50Hz    110V/60Hz
Ambient ambient temperature-30℃~60℃
Accuracy of brake disc≤0.00-0.003mm
Cutter feed0.005-0.015mm
Surface roughness of brake discRa 1.5-2.0um
Packing dimensionsTwo pieces of 0.33 CBM
Packing dimensions of wooden cases860*480*450mm=0.18m³
Carton Size910*510*310=0.144m³
Net weightTwo pieces of118KG
Gross weightTwo pieces of128KG





Cutter parameters

Product NameBrake disc cutter
Product ModelBL-718
Maximum thickness of brake disc40mm
Accuracy≤0.002-0.005mm
Feed speed8.5mm/min
Electrical specifications220V/50Hz
Net weight6.5KG
FAQ

 1.   Q: The price of brake disc repair?
       A: According to the restriction of region, store, craft and equipment, the price of brake disc repair is not uniform in the market. It's about tens of yuan a piece cheap, and hundreds of yuan a piece expensive.
2.    Q: My new brake disc will cost one or two hundred yuan. Who will repair it for a few hundred yuan?
       A: For some high-end brand vehicles, the price of brake discs is more than 1000 yuan, while many modified brake discs (floating discs) are more expensive, so the repair of 100 yuan brake discs is mostly for middle and high-end vehicles and modified vehicles.
3.    Q: How long does an ordinary brake disc need to be replaced? How many times can it be repaired?
       A: The brake disc does not have a replacement cycle of the system. It only needs to measure whether the wear on both sides exceeds 3mm. For those that do not exceed 3mm, they can always be used or repaired.
4.    Q: Many people say that brake discs are more prone to jitter after repair, right?
       A: For some stores that are not technically competent, there will be brake jitter after brake disc repair. The reason is that in the repair process, the brake disc is not vertical to the axle, resulting in uneven thickness of the brake disc after polishing. However, for a standard brake disc repair process, there is no such problem.

Packaging & Shipping

Packed in wooden case size:860*480*450mm=0.18m³



Carton size:910*510*310mm=0.144m³
