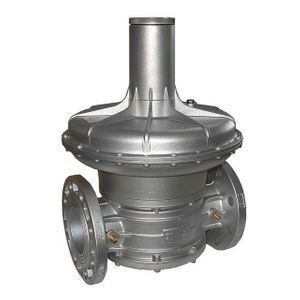

High Pressure Regulating Structure Proportional Solenoid Valve

High Pressure Regulating Structure Proportional Solenoid Valve

• Applied to both continuous and pulsed control;
• According to european standard (90/396/EEC).

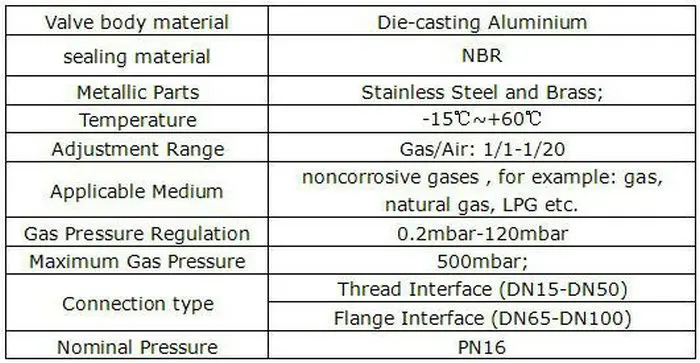

• Technical parameter
• Valve Body Material: Die-casting Aluminium
• Sealing Material: NBR
• Metallic Parts: Alloy,stainless steel and brass
• Temperature: -15°C-+60°C
• Adjustment Range: Gas/Air : 1/1-1/20
• Applicable Medium: noncorrosive gases, for example:gas, natural gas, LPG etc
• Gas Pressure Regulation: 0.2mbar-120mbar
• Maximum Gas Pressure: 500mbar

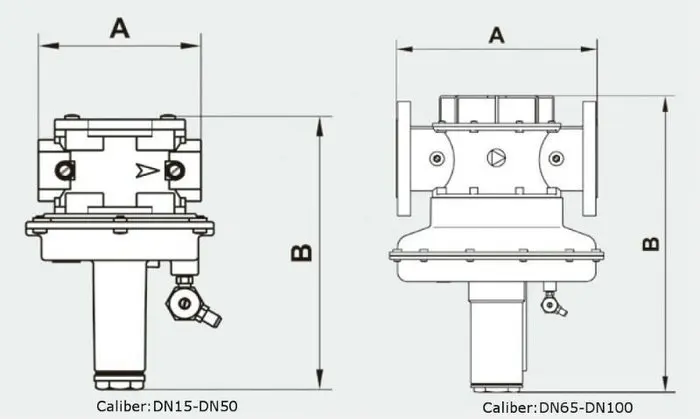

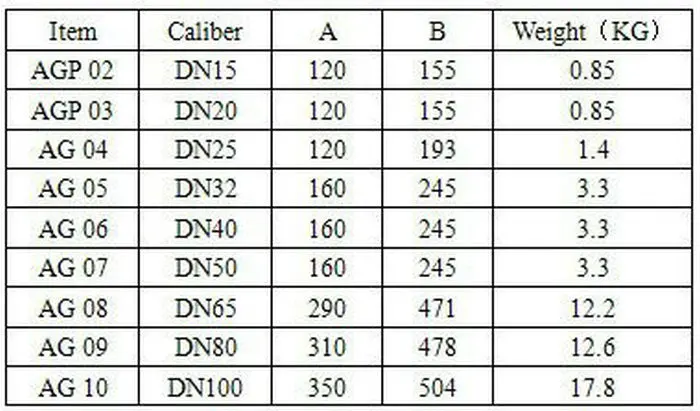

• Connection Type:1.Thread interface(DN15-DN50)
• Nominal Pressure: PN16

According to standard EN746-2, the normal combustion of burner must have a constant air/fuel ratio. The air/gas proportioning valve GIK is used to achieve a constant air/fuel ratio so as to obtain the specific gas pressure under different conditions.

MOQ: 1 unit Proportional Solenoid Valve

Trade Terms: FOB, EXW
Payment Terms: L/C, T/T, Western Union,
Delivery Time: Normally within 15 days according to the quantity
Packing: As customers requirement/demand,carton packaging, plywood case.
Shipping: By sea, by air, etc.

• Before- sales services are including program design, products selection, technology and price advice, etc.
• After services are including products installation guidance, field debugging and personnel operation training, etc.
• Our Aim: Customers satisfaction is our success! Sincerely hope to cooperate with you and create a better future hand in hand.

Foshan delk energy technique co., ltd. is the biggest outlets center in mainland of china for united states honeywell series, wintek series of industrial electrical automatic control instruments and italy made / germany from series of gas equipments. with principle of integrity based, customer first to provide customers with cost-effective products and good services.

Our company offers high quality, high- performance products for a variety of pipeline gas and oil to domestic, which are widely used in space technology, metallurgy, ceramics, electro ceramics, chemical engineering, utilities, etc. We offer a series of products: italian madas filter, reducing valve, safety shut- off valve, electromagnetic valve, air/gas Proportional Solenoid Valve, safety relief valve, gas/air butterfly valve, swiss belimo/ kisawar/ japanese ulli series electronic actuator, japanese ulli fuel regulator valve, gas/oil/air pressure switch, germanic testo flue gas analyzer, high-speed pulse gas burner, flow meter, leakage protector, high-accuracy electronic pressure gauge, fuel power wind measurement instrument, taiwan ift series auto-ignition and detection controller, japanese ito gasifier medium & high pressure reductor and auto switching device, factory tv monitoring equipment, taiwan wintek separate pulse control system, germanic jumo, japanese rkc temperature instrumentation and a variety of import pressure gauge and detection sensor, etc.
