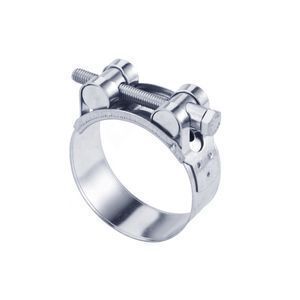

Unitary Power Single Bolt Stainless Steel Heavy Duty Pipe Hose Clamp
-
Supplier: Qingdao Perpetual Hose Clamp Co., Ltd. -
Region: Shandong, China -
Price: $0.15 / >=1000 pieces -
Min. Order: 1000 pieces
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram,Paypal; | Port: | Qingdao/Xingang; |
| Supply Ability: | 2000000 Piece/Pieces per Month Heavy duty clamp; | Application: | Automotive Industry,Food & Beverage,General Industry,Healthcare,Heavy Industry,Mining,Oil & Gas,Retail Industry,Water Treatment; |
| Packaging Detail: | plastic bag, box, pallet; | Package Preview: | ; |
| Bolts clamp type: | Heavy Duty Clamp; |
Unitary Power Single Bolt Stainless Steel Heavy Duty Pipe Hose Clamp:
1)Sizes: 17-19mm to all
2)Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
3)Material: Zinc-plated Steel, 201/300 series Stainless Steel
4) Any risk of damage to the hose is eliminated by tilted and smooth edge
| Size | Band Width | Band Thickness W1 | Band Thickness W2/W4 | Thread | Screw Length | Break Torgae |
| mm | mm | mm | mm | mm | Nm | |
| 17-19 | 18 | 0.6 | 0.4 | M5 | 40mm | 4.5Nm |
| 20-22 | 18 | 0.6 | 0.4 | M5 | 40mm | 4.5Nm |
| 23-25 | 18 | 0.6 | 0.6 | M5 | 40mm | 4.5Nm |
| 26-28 | 18 | 0.6 | 0.6 | M5 | 40mm | 4.5Nm |
| 29-31 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 32-35 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 36-39 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 40-43 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 44-47 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 48-51 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 52-55 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 56-59 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 60-63 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 64-67 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 68-73 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 74-79 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 80-85 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 86-91 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 92-97 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 98-103 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 104-112 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 113-121 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 122-130 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 131-139 | 26 | 1.7 | 1 | M10 | 90mm | 29Nm |
| 140-148 | 26 | 1.7 | 1 | M10 | 90mm | 29Nm |
| 149-161 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 162-174 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 175-187 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 188-200 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 201-213 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 214-226 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 227-239 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 240-252 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
1. Question: What does your company doing?
Answers: Many factories main doing assembly by purchasing parts, we manufacture all the parts by ourselves except standard screw. The quality of our products can be guaranteed.
2. Question: Can you put our company's logo on the band of the hose clamps?
Answers:Yes. we can put your logo if you can provide us with copyright and letter of authority. OEM order is welcome.
3. Question: Can you provide sample?
Answers: Yes, we can provide samples which cost is under USD 30.00 and weight less than 0.5 kgs.
-
