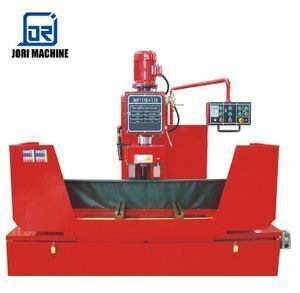

Engine Block and Cylinder Head Surface Grinding machine 3M9735Ax130, 150

Supplier: Dalian Jori Co., Ltd.
Region: Liaoning, China
Contact: Ms Jessica Tian
Price: $9650.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Worktable size:	1300x500mm;	CNC or Not:	Normal;
Weight:	3000kg;	Color:	Blue Red;
Condition:	New;	Certification:	CE ISO9001;
Dimension(LWH):	3100X1150X2150mm;	Warranty:	1 Year;
Brand Name:	JORI;	Voltage:	220V/380V;
Power(W):	3KW;	Packaging Details:	wooden cases;
Name:	Engine Block and Cylinder Head Surface Grinding machine;	After-sales Service Provided:	Video technical support;
Max. Grinding Length:	1500mm;	Processing length:	1300-1500mm;
Packaging Detail:	Wooden case, Seaworthy package Engine Block and Cylinder Head Surface Grinding machine 3M9735Ax130, 150;	Functions:	Grinding & Milling;
Place of Origin:	Liaoning China (Mainland);	Certification:	ISO9001;
Type:	Cylindrical Grinding Machine;	Supply Ability:	50 Unit/Units per Year Engine Block and Cylinder Head Surface Grinding machine 3M9735A;
Max. Grinding Diameter:	350mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	Shanghai Port, China;	Processing width:	350-400mm;

Product Description

1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.

2. The table movement of this machine is driving by gear motor and ball screw,

Stepless speed frequency control, convenient and stable adjustment.

3. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.

4. The casting part of this machine is resin sand casting, deformation is small neat appearance.

Model	3M9735Ax130	3M9735Ax150	3M9735B×130	3M9735B×150
Worktable size	1300x500mm	1500x500mm	1300x500mm	1500x500mm
Max. working length	1300mm	1500mm	1300mm	1500mm
Max. width of grinding	350mm	350mm	400mm	400mm
Max. height of grinding	600mm	800mm	600mm	800mm
Spindle box travel	800mm
Number of segments	10piece	10piece	12piece	12piece
Spindle speed	1400/700r/min	1400/700r/min	150-1400r/min
Overall dimensions	2800x1050x1700	2800x1050x2100
Packing dimensions	3100x1150x2150
N.W/G.W	2.5T/2.8T	2.5T/3.0T	2.8T/3.1T	2.8T/3.1T

Related Products

Our Plant

Packing & Delivery

FAQ

1. How long is your Warranty?

A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.

Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?

A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Your company accept Alibaba Trade Assurance?

A: yes, of course. （1） We will draft order accoring buyer requirements. （2）Negotiate terms with the supplier

and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?

A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?

A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.

Before shipment we will supply all the common documents(packing list, commercial invoice, policy of insurance, bill of lading and certificate of origin) and send it by DHL.

6. What's the MOQ?

A: 1 unit.
