Samson 3730-1 2 3 Control valve positioner for Pneumatic Valve

Supplier: Xiangjing (Shanghai) M&E Tech. Co., Ltd.
Region: Shanghai, China
Contact: Mr Edward Zhao
Price: $1175.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certificate:	CE;	Input Signal:	15 Psig;
Power source:	Electro-Pneumatic;	Product Name:	Electro-Pneumatic Positioner;
Place of Origin:	Germany;	Series:	3730;
Model Number:	3730 Series;	Process:	Positioning;
Gross weight per batch:	5.0 KG;	Standard or Nonstandard:	Standard;
Packaging Detail:	Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 603040 (cm);	Operating Temperature:	Standard Temperature;
Brand:	Samson;	Material:	Aluminum;
Brand Name:	Samson;	Package size per batch:	60X30X40 cm;
Selling Units:	Multiple of 1;

Product Description

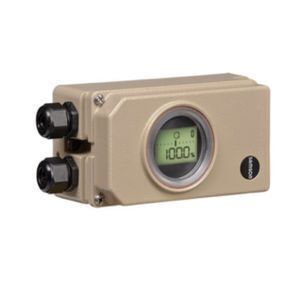

Samson 3730-1 2 3 Electro-Pneumatic Positioner for Pneumatic Valve

Product Introduction

The positioner ensures a predetermined assignment of the valve position (controlled variable x) to the input signal (set point w). It compares the input signal received from a control system to the travel or rotational angle of the control valve and issues a corresponding output signal pressure (outputvariable y).

Quick Details

Place of Origin	Germany
Brand Name	Samson
Model Number	3730-1 3730-2 3730-3
Diagnostics	5 Pressure Sensors
Materials	Case/Cover: - Aluminum ASTM 360
Welded	BW or SW
Operating Temperature	Standard Temperature
Screwed	NPT 1/4" through 2" (20 through 50 mm)
Body Materials	Cast iron PFA lined
Actuators	Model 35 spring-opposed rolling diaphragm
Trim	Eccentric rotary plug
inherent Characteristics	Linear

- In case of Fail Freeze or Fail Safe optional product, it maintains the current valve position without any additional equipment such as lockup valve or solenoid valve in case of power supply (24V) failure.

- Back light function LCD is attached so you can check the status of the positioner directly in the field.

- Four adjustment buttons and unique functions of the buttons are applied in the same way throughout the firmware, so it is very easy to use.

- The initialization time is very short, which minimizes the change of valve stroke in case of temporary power failure and improves system stability.

- Very strong against vibration and can be used in extremely high vibration areas.

- The change in supply pressure during use has almost no effect on the adjustability of the positioner.

- Auto calibration is very simple, so first time users can handle the product easily.

- Compact size makes it easy to attach to small actuators.

- Very low air consumption which allows large plants to reduce their operating costs.

- The valve system can be stabilized by outputting an analog feedback signal.

- Different valve characteristics can be adjusted – Linear, Quick Open, Equal Percentage, and User Set which user can make 5 points or 21 points characterizations.

- You can minimize valve leakage by setting the sealing function of Tight Shut-Off / On.

- Half-interval control (Split Range) is available such as 4 ~ 12mA and 12 ~ 20mA etc..

- You can change Zero and Span freely through Hand Calibration function.

- By manual operation, valve can be operated arbitrarily irrespective of input signal, so it is easy to judge whether or not there is an abnormality of valve.

- Ingress protection of IP67.

- The product's enclosure is made of a material with excellent chemical resistance and moisture resistance, so it can be used stably for a long time even in a corrosive atmosphere.

- The internal structure is very simple and modular, so there is little possibility of failure and maintenance is simple.

- It is equipped with a foreign material prevention filter which is easy to maintain.

- Flow rate can be selected according to actuator size.

- Solenoid valve with superior durability of over 200 million cycles.

Specifications

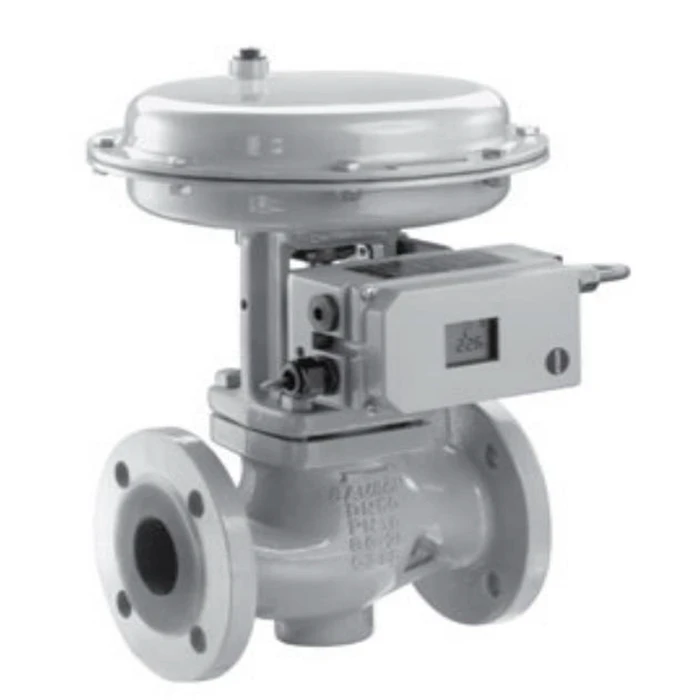

Detailed Image

Packaging and Delivery

**Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 603040 (cm)**

The products will be shipped after receiving the deposit or full payment within 15 working days

Our Service

1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.
5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
