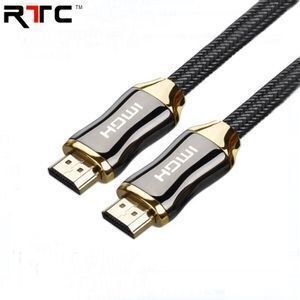

High speed HDMI cable hdmi male to hdmi male cable UHD 4K 3D 2160P 1m up to 45m for computer TV monitor V2.0

Supplier: Zhongshan Ruiteng Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Vincent zhou
Price: $0.50 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Contact:	24K gold-plated;	Application:	COMPUTER,Multimedia,Monitor,DVD Player,Projector,HDTV,HOME THEATER;
Connector:	Zn or Al Alloy;	Conductor Material:	99.99% OFC Bare Copper;
Type:	HDMI;	Conductor:	Bare Copper;
Connector Color:	Gold;	Terminal:	19+1 pin HDMI;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Gender:	MALE-MALE;
Packing:	giftbox;	Outer Diameter:	Customized (6.0mm~9.0mm);
Jacket:	PVC;	Port:	Zhuhai/Zhongshan port;
Certification:	CE;	Connector Type:	HDMI;
Jacket Material:	Environmental PVC;	Shielding:	triple shielding(AL+ Mg+ Braiding),Combination;
Packaging Detail:	Polybag for individual package and carton box for container shipment. Or at customer's request.;	OD:	9.0/8.0/7.3/6.0mm;
Warranty:	3 Years;	Place of Origin:	Guangdong China;
Available gauge:	24/26/28/30AWG;	Model Number:	RTC-HD-06L;
Supply Ability:	3000000 Piece/Pieces per Month;	Brand Name:	RTC;
Data transfer rate:	18 Gbps Max;

High speed HDMI cable hdmi male to hdmi male cable V2.0 UHD 4K 3D 2160P 1m up to 45m for computer TV monitor

Detailed Images

SPECIFICATIONS (V2.0 HDMI cable)
ITEM	FEATURE	ADVANTAGES

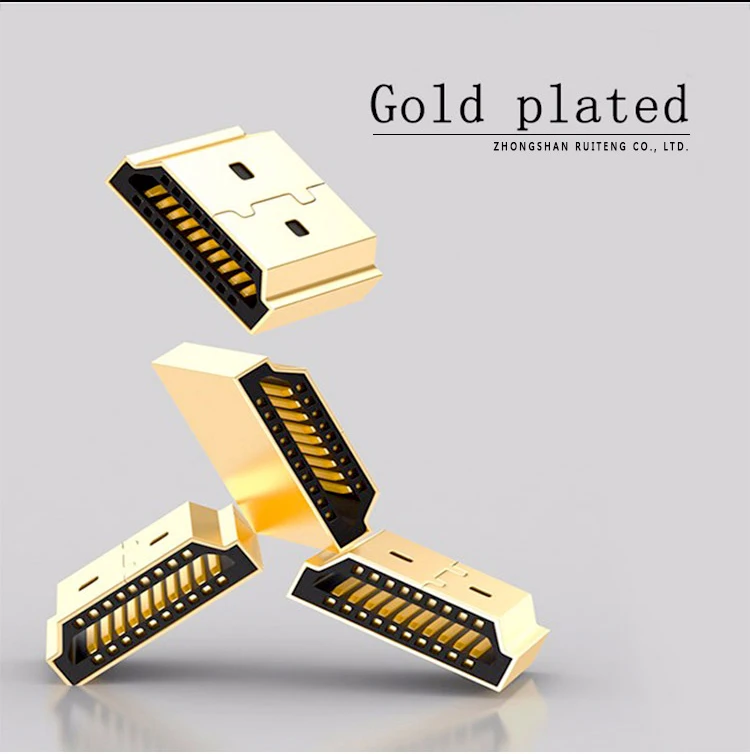

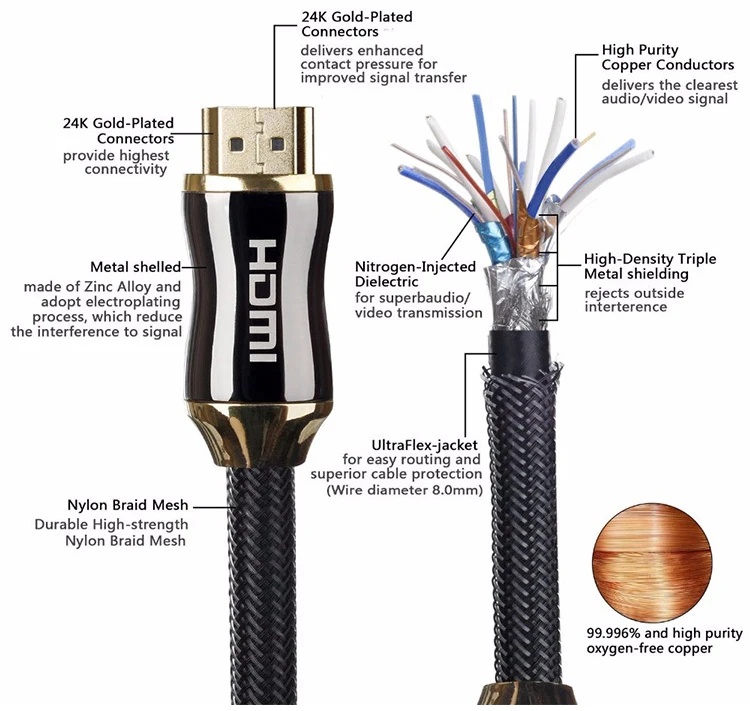

Contacts	24K Gold Plated	To ensure super signal transfer rate and corrosion resistance; longer lifetime and maximum performance;
PIN	19+1 HDMI	Fully complient to V2.0 specification.
Gender	Type A male to male	Fully HDCP compliant to provide highest level of signal quality.
Connector	Zn or Al alloy Metal shell	Nice looking, stylish design,high level product
Conductor	99.99% high purity Oxygen Free Bare Copper	highest signal transfer rate(14 to 18Gbps), long lifetime, stable quality
Insulation	HD-PE	high quality, good insulation
First Shelding	100% Aluminum/Mylar foil	prevent high frequency noises and interference
Second Shelding	100% Aluminum/Mylar foil	prevent high frequency noises and most interference
Third Shelding	95% AL+MYG braid	prevents most low frequency noises and interference, for maximum rejection of EMI and RFI
Outer jacket	High quality environmental PVC	Long lifetime, good protection for cable
Color	Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE	Very nice appearance, more choices; Attractive design;
Available gauge	24/26/28/30AWG for different length	Support 4K@60Hz, support 3D
OD	9.0/8.0/7.3/6.0mm for different length	HDMI Ethernet Channel, Audio Return Channel
Available lengths	V2.0 up to 40m	To provide longest cables for different usage

ELECTRICAL & QC
Voltage:	DC300V 5M ohm/10ms
Insulation Resistance:	10M min
Contact Resistance:	5 ohm max
Working Temperature:	-25C-80C
Data transfer rate:	14~18 Gbps
Differential Impedance:	100±10Ω(TDR)
Certification	RoHS,UL,CE
Quality Control:	operation according to regulations & rules in ISO9001:2008
