Washing detergent powder packing machine small sachets coffee milk powder packing machine

Product details
Types of seals:KIS horizontal,vertical,45°;Packaging Detail:Washing detergent powder packing machine small sachets coffee milk powder packing machine Inside plastic wrapping film and outside stronger wooden cases;
Certification:CE Certificate;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:Engineers available to service machinery overseas;Product name:Washing detergent powder packing machine;
Warranty:1 Year;Port:Guangzhou/Shenzhen/Foshan;
Language:English+Chinese+any language;Voltage:220V;
Supply Ability:20 Set/Sets per Month;Automatic Grade:Automatic;
Measuring range:Within 1kg;Place of Origin:Guangdong China (Mainland);
Condition:New;Bag formats:Pillow bag,stand-up bag, 3/4 sides sealing bag,etc.;
Packing material:compound film or PE film;Weight:700kg;
Power(W):2.2kw;Range of application:Powder product;
Usage:Food Forming Machine;Delivery Detail:40~50 working days after deposit received;
Machine material:SUS304;Type of machines:Vertical and pillow packing machine;
Dimension(L*W*H):3803*2378*2555mm;Description:small sachets coffee milk powder packing machine;
Brand Name:CHLBAO;

Washing detergent powder packing machine small sachets coffee milk powder packing machine





For more information, please click.CONTACT US >



Washing detergent powder packing machine small sachets coffee milk powder packing machine

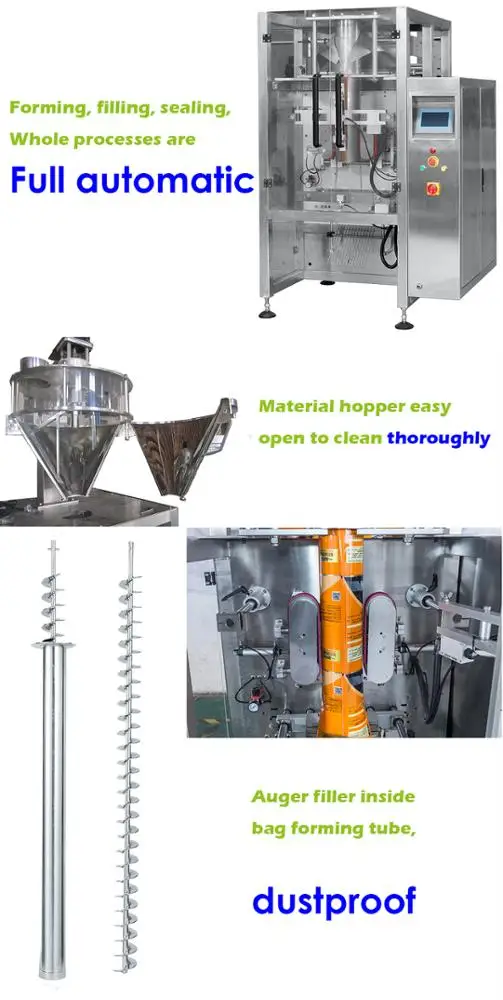

Features:

1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

2. Use famous brand electric and pneumatic components, stable and long life circle.

3. Use superior mechanical components, reduce the wear out loss.

4. PLC control with stable and high accuracy output.

5. Two color touch screen 7", one for packing machine, another for multihead weigher .







For more information, please click.CONTACT US >



For more information, please click.CONTACT US >

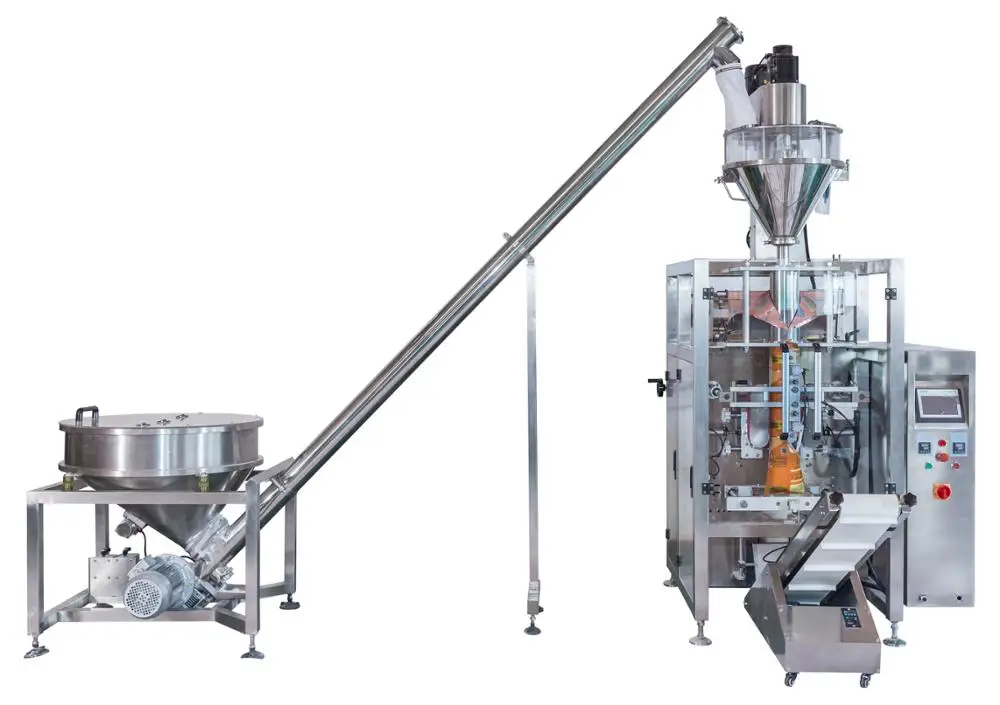

Spices powder filling packaging machine



ModelCBP1-420
Bag sizeL(60~300)×W(40~200)mm
Packing speed5~60 bags/min
Mad width of film roll≤420mm
Driving film typeby a pair of belt controlled by servo
Air consumption0.6MPa
Gas consumption0.4m³/min
Power requirement2.2KW, 220V, 50HZ
Machine sizeL1320×W920×H1392mm
Machine weight450Kg



ModelAuger filler
Weighing range10~5000g(One auger screw for one differeng weight range)
Weighing accuracy(g)Range<100g, deviation:0.5~1g
Range: 100~5000g, deviation:0.5~1%
Filling speed10~50 bags per minute
Material hopper50L
Voltage220V/380V
Gross weight200Kg



ModelAuger elevator
Elevator height3000mm
Loading volume3m³/h
Max. loading speed30m/min
Vibration hopper volume230L
Voltage220V/380V
MaterialStainless steel





Suit for the quantitative weighing of powder products, such as coffee powder, milk powder, chocolate

powder, protein powder, flour, wheat powder curry powder, medicine powder etc.

For more information, please click.CONTACT US >







Component list:

AControl partsBrand/Origin
1Touch screenSCHNEIDER/FRANCE
2PLCSCHNEIDER/FRANCE
3Servo motorSCHNEIDER/FRANCE
4Servo controllerSCHNEIDER/FRANCE
5Temperature meterAISET/CHINA
6Eye markAUTONICS/KOREA

BPneumatic partsBrand/Origin
1Horizontal seal cylinderAIRTAC/TAIWAN
2Vertical seal cylinderAIRTAC/TAIWAN
3Drive belt cylinderAIRTAC/TAIWAN
4Cutting cylinderAIRTAC/TAIWAN
5Solenoid valveAIRTAC/TAIWAN
6TripletAIRTAC/TAIWAN

CElectronic partsBrand/Origin
1Intermediate realySCHNEIDER/FRANCE
2Solid state relayYANGMING/TAIWAN

DSwitch partsBrand/Origin
1Proximity switchSCHNEIDER/FRANCE
2ButtonsCHINA
3RCDCHINA
4Power switch(3.6A)CHINA
Remark: Above is for reference only. Please refer to actual production.

Free spare parts list:

Item

Qty

Tool box

1

Belt

2

Horizontal seal heating bar

4

Vertical seal heating bar

1

Socket head wrench

1

Cross screwdriver

1

Slot type screwdriver

1

Monkey wrench

1

One set of wrench

1

Cutting knife

1

Thermocouple

Proximity switch

Teflon high temperature tape

Temperature meter

Coppered steel wire brush

Solid-state relay

Intermediate relay



For more information, please click.CONTACT US >













Tel+86 757 81803923
Fax+86 757 81801949
Emailchlbao@chlbao.com
Webwww.chlbpack.com
AddSHANGBAI BRIDGE SIDE, GUIDAN ROAD, NANHAI DISTRICT, FOSHAN CITY, GUANGDONG PROVINCE, CHINA

Q1: Can you send me the installation video of this machine?

A1: Yes, please check the link for this video



Q2: What is the material of contact food/material parts?

A2: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.



Q3: Can this machine make different bag sizes?

A3: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.



Q4: Does your company accept OEM?

A4: Yes, we have a professional design and technical team to accept customization.



Q5: When you can deliver the machine after the order is placed?

A5: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.



Q6: How about your warranty?

A6: We provide 13 months warranty, starts from the issue date of bill of lading.



Q7: What can you provide after service?

A7: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
