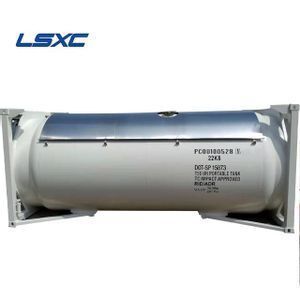

Chinese Manufacturer T50 Propane LPG ISO 20ft 40ft Tank Container for Sale

Click here to contact

Product details

Internal Dimensions(l x W x H)(mm):	5898.2352.2393/mm;	Warranty:	1 Year;
Leakage Test Pressure(MPa):	1.38;	Certification:	ISO9001;
Max. Payload (Kg):	22568;	Port:	Shanghai, China.(Negotiable);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Operating Temperature:	-40 to 50℃;
Hydro.Test Pressure:	2.18;	Size:	20ft;
Place of Origin:	Henan China;	External Dimensions(l x W x H)(mm):	605824382591/mm;
Filling Medium:	1, 2-Tetrafluoroethane;	Tank Instruction:	T50;
Capacity:	25000L;	Maximum Gross Weight:	36000KG;
Length (feet):	20';	Type:	Tank Container;
Tare:	3510KG;	Packaging Detail:	Nude Package or According to Customer's Requirements;
Brand Name:	LSX for Tank Container;	Supply Ability:	50 Unit/Units per Month;

Product Description

Description and Specification of Commodity
Loading Capacity	22tons
Overall Size	605824382591/mm
Compartment	single
Painting	Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2 coats of final paint
Design data sheet
Code and Regulations	ASME BOILER AND PRESSURE VESSEL CODE,SECT.VIlI.DIV.2 WITH U2-STAM RID/ADR,IMDG
DESIGN PRESSURE(MPa)	1.52	PRESSURE-RETAINING	Shell	SA-612M NORMALIZED
MAWP,acc IMDG(MPa)	\|1.38	PARTS	Heads	SA-612M NORMALIZED
MEAWP(MPa)	0.1	EXTERNAL DEMENSIONS(L/W/H)		6058/2438/2591
DESIGN TEMPERATURE(℃)	55	INSULATION OR SUN SHIELD		SUN SHIELD
OPERATING TEMPERATURE(℃)	-40~50	Paint	Frame	30um+40um+50um
MDMT(℃)	-40	Paint	Shell	30um+40um+50um
NOMINAL VOLUME(L)	25000	MAX.GROSS MASS(KG)		350004
FILLING MEDIUM	1,1,1,2-Tetrafluoroethane	TARE MASS(KG)		6800
MEDIUM UN NUMBER	UN3159	MAX.FILLING DENSITY (t/m3		1.04
TANK INSTRUCTION	T50	MAX.PAYLOAD(KG)		22568
CORROSION ALLOWANCE(mm)	0	JOINT EFFICIENCY(SHELL/HEAD)		1
PWHT(YES/NO)	YES	TEST	HYDRO.TEST PRESSURE(MPa)	2.18
U2 STAMP	YES	TEST	LEAKAGE TEST PRESSURE(MPa	1.38
INSPECTION AUTHORITY	BV/TUV	N/A		N/A
