Product Details

Single gross weight:	6.5 KG;	Packaging Detail:	Item size: Approx. 57 * 44 * 11cm Item weight: 6.5kg Package size: 57 * 44 * 11cm Package weight: 6.5kg;
Selling Units:	Single item;	Brand Name:	Depusheng;
Place of Origin:	Guangdong China;	Material:	Metal;
Single package size:	57X44X11 cm;	Model Number:	DT12;
Channels:	8 (7.1);	Type:	Professional Amplifier;
Product Name:	Professional Audio mixer console;	Function:	Mp3 Player+fm Radio+MIC;

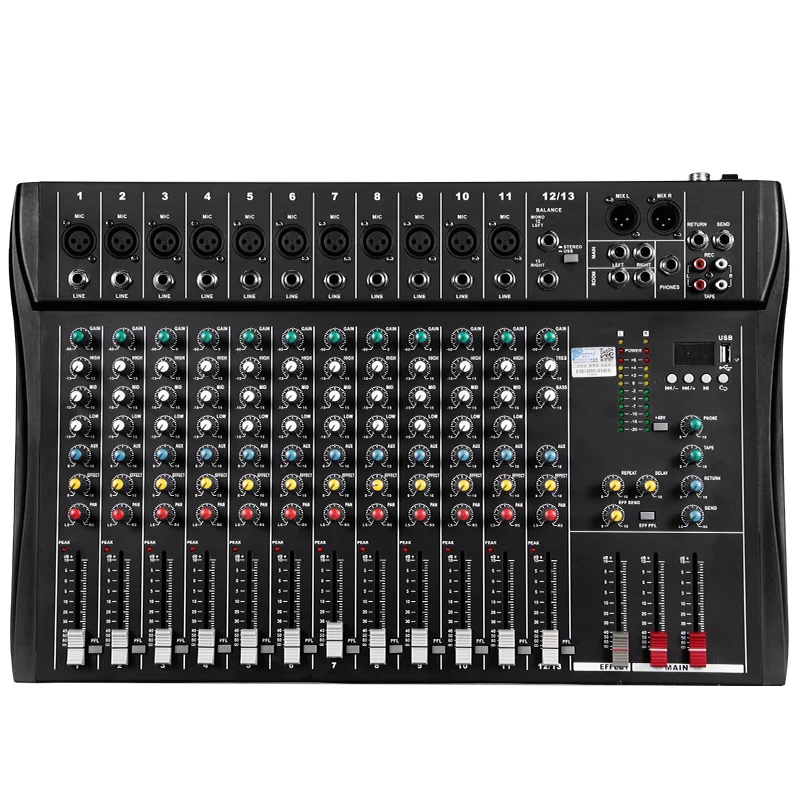

Professional 12 Channel Karaoke Audio Mixer Amplifier Mini Microphone Sound

Product Description

Description

12 channels mixing console with XLR, LINE inputs and 48V phantom power.

Each channel has GAIN, 3-band EQ, AUX, EFFECT, PAN control knobs and volume control faders.

The PEL switch allow you to monitor the channel that the PEL is turned "ON" only.

AUX send & return jacks for connecting all kinds of effects from outside.

With XLR(L/ R) & 1/4"(L/ R) stereo output jacks and REC(L/ R) & headset interfaces.

Product description

Features:

12 channels mixing console with XLR, LINE inputs and 48V phantom power.

Each channel has GAIN, 3-band EQ, AUX, EFFECT, PAN control knobs and volume control faders.

The PEL switch allow you to monitor the channel that the PEL is turned "ON" only.

AUX send & return jacks for connecting all kinds of effects from outside. With XLR(L/ R) & 1/4"(L/ R) stereo output jacks and REC(L/ R) & headset interfaces.

With USB input interface and LCD display as well as control buttons.

With power and output level indicator lights for easy monitoring and operation.

EFFECT level and output MAIN faders, REPEAT, EFF SEND, DELAY, SEND, RETURN knobs on the master section.

Specifications:

Brand: ammoon Model: 120S-USB

Color: Black

Material: Metal

Power adapter: US Plug

Input: 100-240V AC 50/60Hz 0.23A

Output: ±15V DC 48V DC
Output level: 19dBm.
Noise:-105dB.
Signal to noise ratio: 80dB.
Headset output power: 100mw.
Equalizing low Frequency: 80Hz ~ 15dB.
Intermediate frequency: 2.5KHz ~ 15dB.
High frequency: 12KHz ~ 15dB.
Gain control: mono-60dB ~-40dB.
Frequency response: 20Hz~20KHz.
Total Harmonic distortion + noise: 0.003%
