Coupled Quick Pipe Repair Clamp Split Sleeve Oil Pipe Repair Clamp

Supplier: Beijing Grip Pipe Tech Co., Ltd.
Region: Beijing, China
Contact: Ms Lois Lee
Price: $10.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Pipe clamps type:	Double piple clamps;	Measurement system:	Imperial (Inch);
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Supply Ability:	100000 Set/Sets per Day;
Packaging Detail:	each product is wrapped in bubble plastic bag put in the carton and packed in wooden box with pallet;	Port:	Beijing Airport, Tianjin Xingang, Shanghai port;
Application:	Oil & Gas;	Material:	Steel;

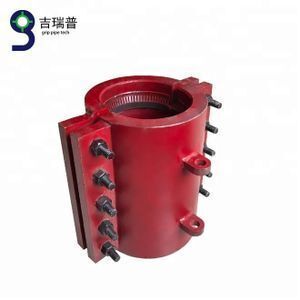

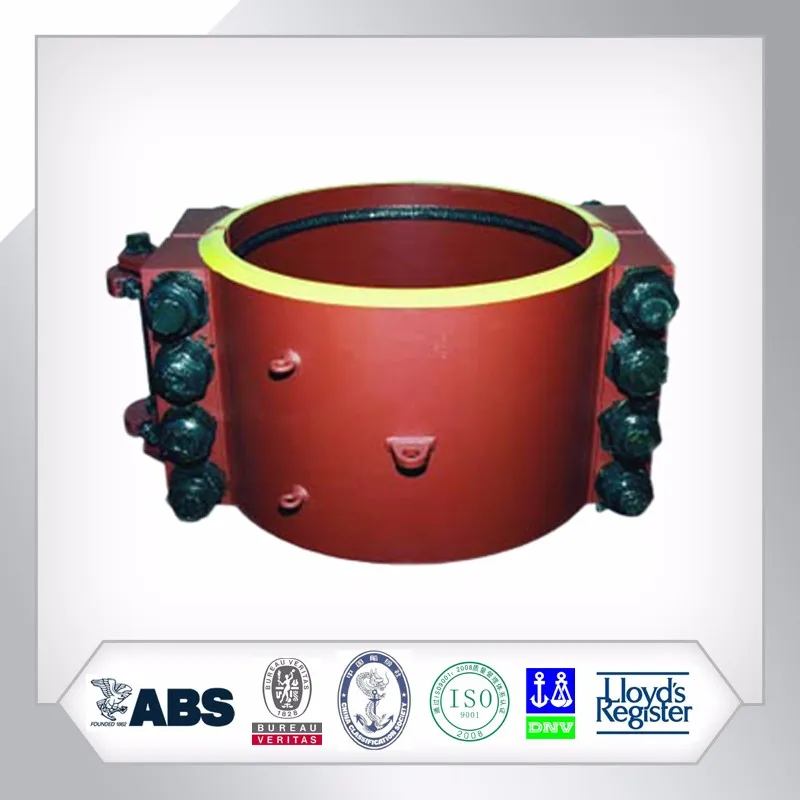

Coupled pipe repair clamp

The GRIP-RZ Coupled pipe repair clamp can safely and reliably seal damaged pipes such as corrosion, mesh holes,cracks or leakages without pipe changing.
New designed unitary sealing sleeve ensures complete sealing effect.
Easy and quick installation completed by wrapping the clamp to target position, tightening all the bolt.

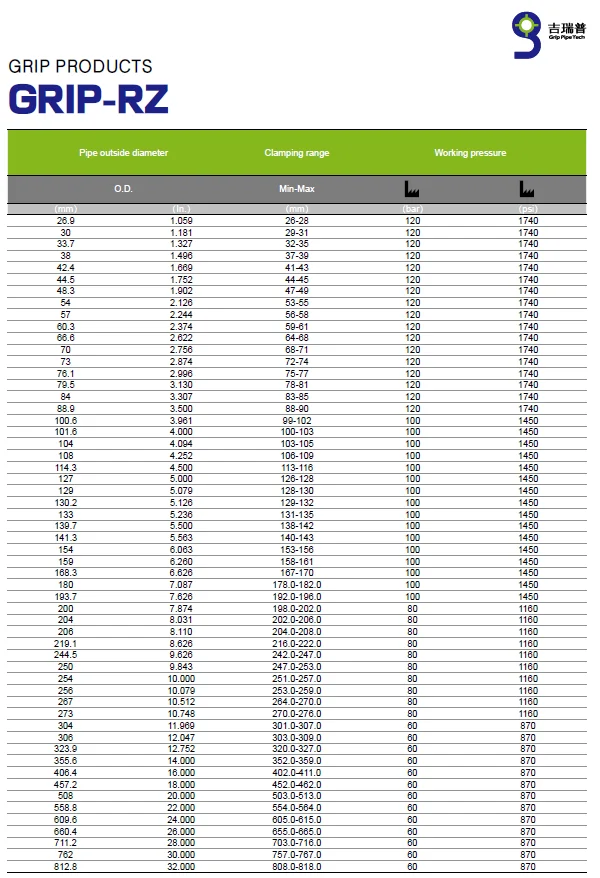

Strong pressure bearing ability up to 8MPa, can be widely used in oil pipeline, chemistry industry, grid, mining field, gas pipeline. Suitable for pipes O.D φ26.9-φ812.8mm

Progressive sealing effect

If the pressure in the pipes rises, the contact pressure on the sealing lips also increase due to the flow through the pressure equalization channel.
