Magrfhelic differential pressure gauge

Product details
Product keywords:differential pressure gauges;Port:NINGBO, SHANGHAI;
Ambient Temperature:-7 ~ 60 °C;Housing Color:Grey;
Range:-68~103Kpa;Brand Name:MAGRFHELIC;
Weight:0.55kg;Accuracy:±2% of FS (±3% on - 0, and ±4% on - 00,);
Payment Terms:T/T,Western Union;Packaging Detail:TE2000 DIFFERENTIAL PRESSURE GAUGE EXPORT STANDARD CARTONS;
Place of Origin:Zhejiang China;Pressure Rating:15 PSI (1.03 bar);
Supply Ability:50000 Piece/Pieces per Month;Model Number:TEA2000;

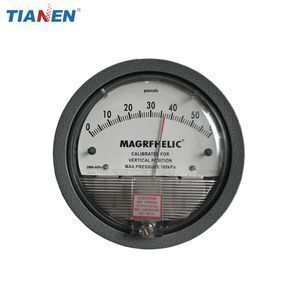

Series MAGRFHELIC Differential Pressure Gauge

Product Description

INTRODUCTION About TE2000 Differential pressure gauges

Series TE2000 MAGRFHELIC® Differential Pressure Gauges are widely utilized for measuring pressure of fan and blowing machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, liquid amplifier and hydraulic pressure system. Meantime, they are used to control the automatic valve and specific value of air-producer gas in combustion and they are used to test blood pressure and respiratory pressure in medical health care equipment. There are more than 81 models to suit your needs precisely. The key components adopt import materials.

SPECIFICATION

Pressure Rating

15 PSI (1.03 bar)









Ambient Temperature

20° to 140° F (-7 to 60 ℃)

Overpressure

Protective rubber stopper will be blown out if rated pressure is up to about 172KPa.

Process Connections

Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test

Accuracy

±2% of FS (±3% on -0, and ±4% on -00,)

Range

30Pa~80KPa (Special Specification also can be ordered.)

Weight

0.55 kg

Dimensions

4-3/4 "dia. x 2-3/16"deep

Housing Color

Gray, golden

Connections

1/8"female NTP high and low pressure taps, duplicated, one pair side and one pair back.

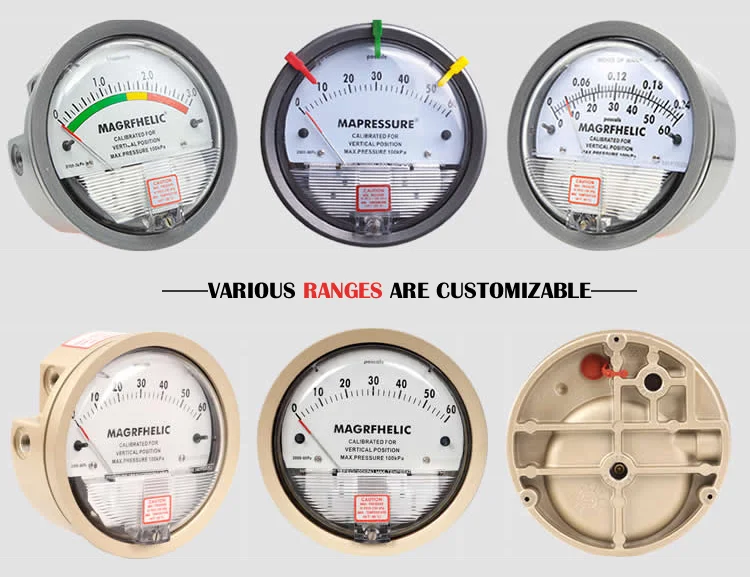

PRODUCT SHOW Two colors options— Grey, Golden

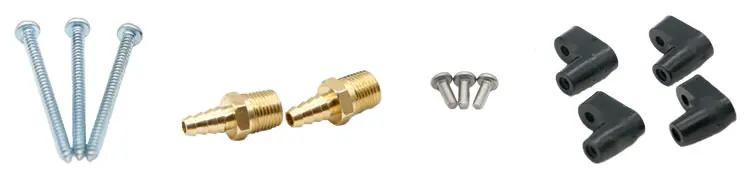

ACCESSORIES Of TE2000 Differential pressure gauges

RANGES various ranges can be ordered

RANGES FOR REFERENCEPaKpaInches of WaterMM of Water Dual Scale
0-300-0.50-.250-6 in w.ccPa or Kpa
0-600-10-.500-100-.250-62 Pa
0-1000-1.50-1.00-150-0.50-125 Pa
0-1250-20-2.00-250-1.00-250 Pa
0-3000-50-8.00-300-2.00-500 Pa
0-5000-80-10 0-500-3.00-750Pa
-30-0-300-100-200-800-4.00-1.0kPa
-60-0-600-200-500-1000-5.00-1.25kPa
-100-0-1000-300-1000-1250-6.00-1.5kPa
-250-0-2500-500-1800-2000-8.00-2.0kPa
-500-0-5000-600-2500-3000-0.50-2.5kPa
Bold Ranges Are  Hot Sale
VARIOUS RANGES  CAN BE CUSTOMIZED FOR YOU

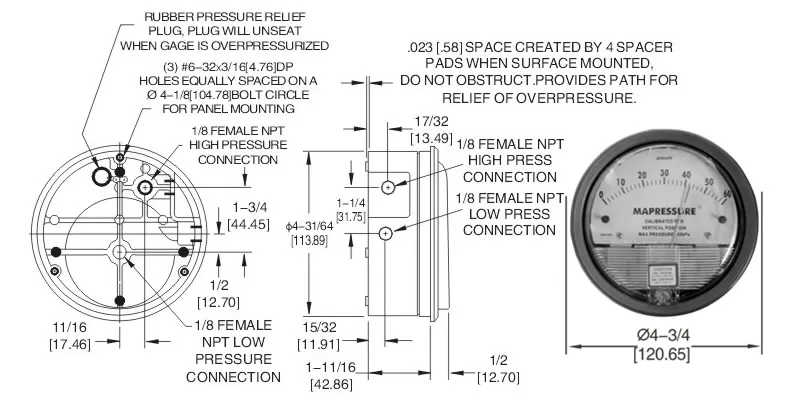

DIMENSIONAL DRAWING

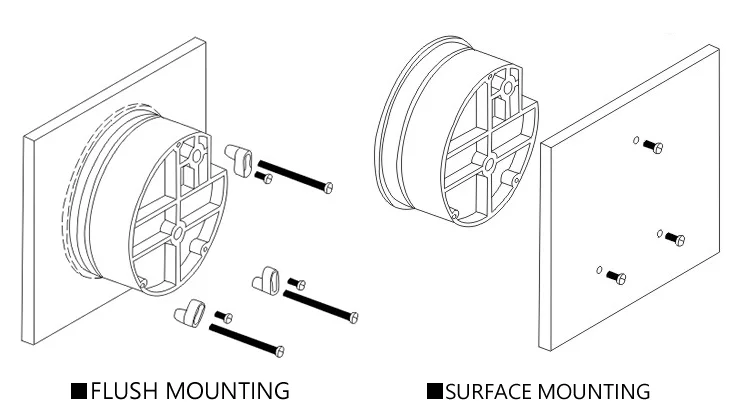

MOUNTING DRAWING

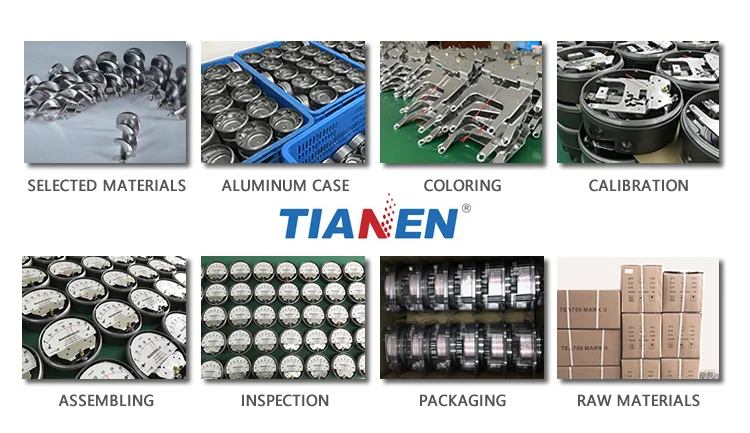

PRODUCTION PROCESS we are professional and concentrative

Packaging & Shipping

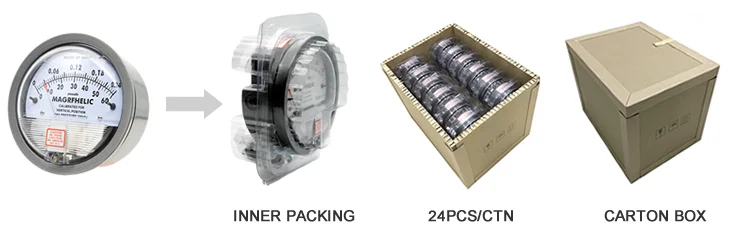

  PACKAGE Packing is well suited for long distance shipments



CARTON SIZE: 46.5*34.5*36.5 (CM)

NET WEIGHT: 446.5  G/PCS  GROSS WEIGHT: 446.5 G/PCS

WEIGHT OF ACCESSORIES: 38.9 G/SET

PACKAGE: 24PCS/CTN



SHIPPMENT

You can transport goods by sea, by air, by express or another shiping ways.

We will do our best to help you find an optimal way.











Company Information

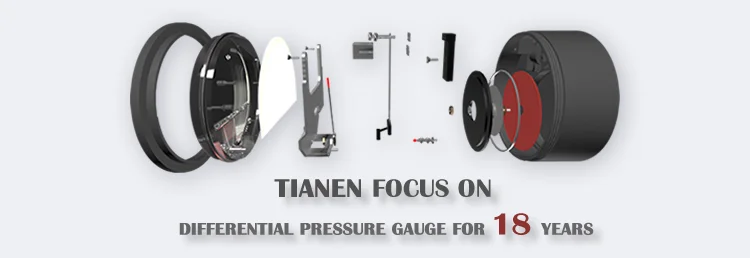

 ABOUT US We focus on differential pressure gauge for 18 years
