Mini Wireless USB Adapter Nano Card/Mini Wifi Adapter/Wireless USB Dongle

Supplier: Shenzhen Magelei Electronic And Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Justin Shen
Price: $1.25 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

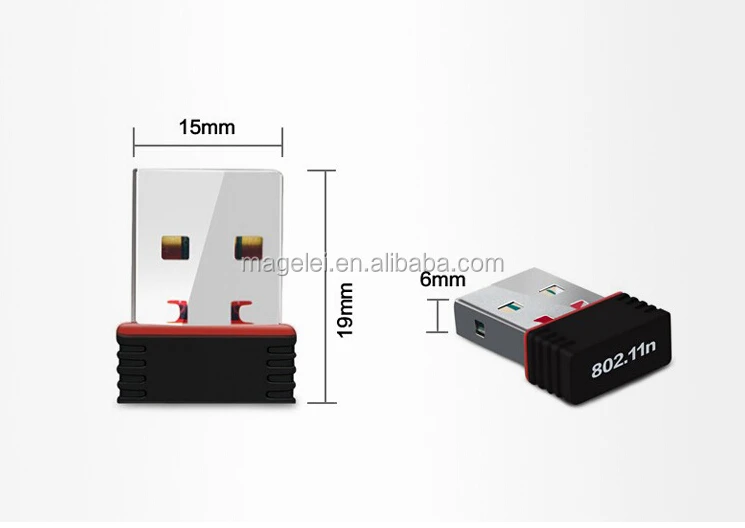

Dimensions (L x W x H):	19156mm;	Model Number:	MGL_17081601;
Interface Type:	usb;	Security:	WPA2/WPA-PSK(AES,TKIP) WEP64;
Kind:	External;	Application:	desktop & laptop;
Wireless Adapter:	150M Wireless mini-USB Adapter;	Type:	Wireless;
Selling Units:	Multiple of 100;	Gross weight per batch:	5.0 KG;
Certification:	CE/FCC;	Package size per batch:	20X30X30 cm;
Frequency Band:	2.4 ~ 2.4835GHz;	Packaging Detail:	slide card blsiter;
Transmission Rate:	150Mbps,11n: Up to150Mbps Maxi;	Brand Name:	OEM;
Place of Origin:	Guangdong China;	Products Status:	Stock;
28BIT RF Power:	20dBm (max);	Standards:	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b;
Antenna:	On-board;

Product Description

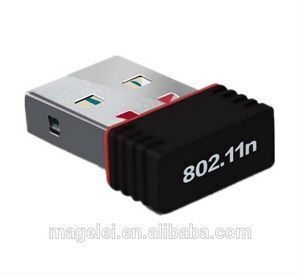

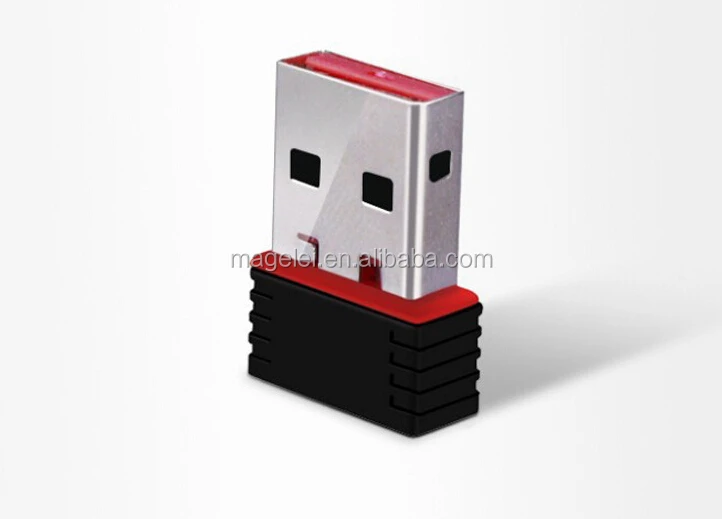

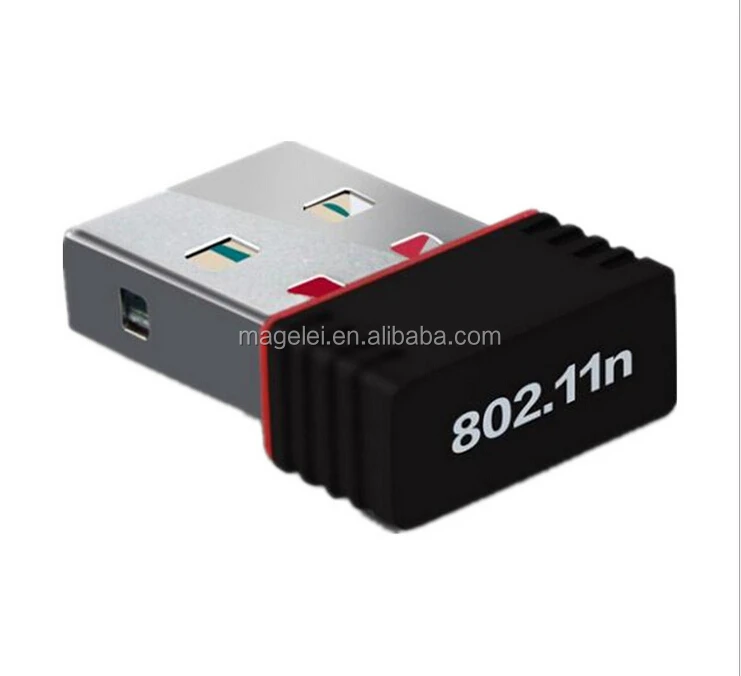

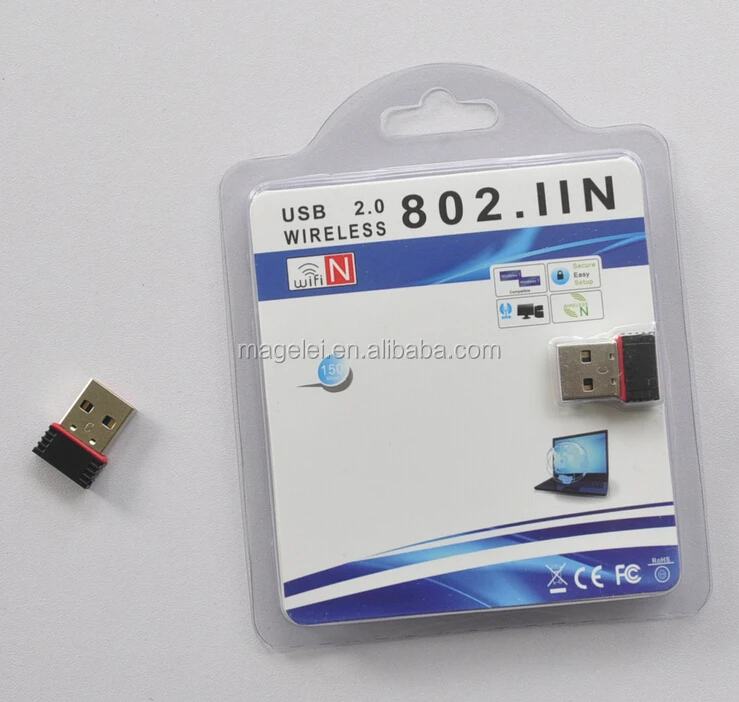

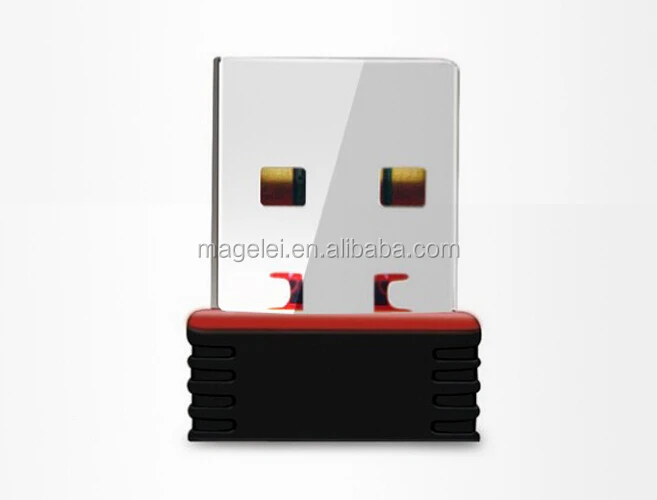

150M Mini USB wireless Adapter

FR-WL220NU-D is a 150M Wireless USB Adapter, fully complies with 802.11b/g/n specifications, adopting 1T1R architecture, up to 150 Mbps data rate, you can connect a desktop or notebook computer to a wireless network and access high-speed Internet connection which is beneficial for the such as HD video streaming and online gaming applications. Mini design can go with you everywhere.

Features

Ultra-compact design for connecting to the Internet
Speeds of up to 150Mbps
Ideal for handling simple activities such as emailing and Web-surfing
WPS Push Button Security
Backwards compatible with 802.11b and 802.11g wireless networks
Easy Setup

Standard	IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
Chipset	Realtek 8188CU
Wireless Speed	11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	20dBm(MAX EIRP)
Modulation Type	OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity (without Standards antenna)	130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Work Mode	Ad-Hoc Infrastructure
Wireless Security	64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System	Windows 2000/XP/Vista/Linux/ Win 7
