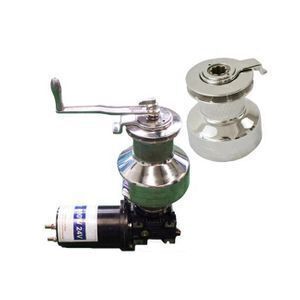

marine yacht boat electric sailing winch JVEW-005
-
Supplier: Chongqing Juvi Import & Export Co., Ltd. -
Region: Chongqing, China -
Contact: Ms Judy Chen -
Price: $560.00 /piece -
Min. Order: 1 piece
| Drum Dia (mm): | 90; | Power Source: | Electric; |
| Brand Name: | JUVI; | Model Number: | JVEW-005; |
| Weight: | 33kg; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Capacity: | 120kg; | Warranty: | 1 Year; |
| Place of Origin: | Chongqing China (Mainland); | Usage: | marine boat yacht sailboat; |
| Line Entry (mm): | 86; | power: | electric; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Line Size (mm): | 8-14mm; |
| Application: | Boat; | Base Dia (mm): | 166; |
| Packaging Detail: | Neutral packing; | Product name: | Electric sailing winch; |
| motor: | 1000W; | Port: | Shanghai/Guangzhou/Shenzhen; |
Electric sailing winch |
| Net Weight (kg) | Motor | Line Entry (mm) | Line Size (mm) | Drum Dia (mm) | Base Dia (mm) |
JVEW-001 | 11 | 300W | 58 | 8-12mm | 62 | 110 | |
JVEW-002 | 13 | 450W | 69 | 79 | 120 | ||
JVEW-003 | 16 | 600W | 79 | 80 | 145 | ||
JVEW-004 | 23.5 | 800W | 84 | 8-14mm | 90 | 166 | |
JVEW-005 | 32.5 | 1000W | 86 | 90 | 166 | ||
JVEW-006 | 35 | 1400W | 115 | 8-16mm | 105 | 205 | |
JVEW-007 | 38 | 1800W | 122 | 116 | 231 |
A self-tailing sailing winch can works at the push of a button without any tools and also can either be fitted in the conventional manner, or without removing the drum, to speed up installation.
1. High-quality polished surface makes for a beautiful appearance.
2. The whole winch is made by 316 stainless steel.
3. Have good performance in waterproof, rust-resistant.
4. Push button power.
5. Quiet operation.
6. Manual override.
7. Easy to install.
8. Included motor units, control box and accessories.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers' request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers' request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What's the MOQ?
MOQ is 1 set.
Adress: Xinke International Building, Qibo Center, Liangjiang New Area, Chongqing, China
Tel/WhatsApp/Wechat: 008618996118644
Fax: 0086-23-68521827
-
