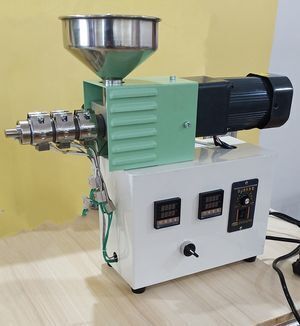

small SJ15 mini extruder diy extruder small scale material plastic small lab scale desktop extruder

Click here to contact

Product details

Application:	Bar,Wire,PIPE,Granules,Sheet,Film,Profile,Plates,Filament,Pelletizing;	Single gross weight:	20.0 KG;
Selling Units:	Single item;	Name:	sj15;
Screw Speed (rpm):	15 rpm;	Local Service Location:	none;
Power (kW):	0.09;	Warranty of core components:	1 Year;
Brand Name:	Orotrim;	Place of Origin:	Jiangsu China;
Weight:	12kg;	Dimension(LWH):	400200300mm;
Key Selling Points:	Energy saving;	Single package size:	40X20X30 cm;
After Warranty Service:	Video technical support,Online support;	Usage:	Wide Usage;
Screw L/D Ratio:	13:1;	Screw Material:	single screw,38Crmola;
Screw Design:	Single-screw;	Core Components:	Screw;
Showroom Location:	none;	Package Preview:	;
Video outgoing-inspection:	Provided;	Condition:	New;
Screw diameter (mm):	15 mm;	Output (kg/h):	0.01 - 0.5 kg/h;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Marketing Type:	Ordinary Product;
Plastic Processed:	PE,PP,PVC,ABS,Xps,WPC,Polystyrene,PA,EVA,EPS,PET,PC,FRPP/PVC,HDPE,PPR,wood-plastic,ABS/PP,HDPE/PP,PE/PP,Lldpe,LDPE;	Voltage:	220v;
Warranty:	1 Year;	Packaging Detail:	wooden box;
After-sales Service Provided:	Video technical support;	Machinery Test Report:	Provided;

Electric Control use Delix Brand

1, The basic performance parameters:

1, Capacity: 0.1-0.8KG / hr;

3, the production line center height: 300mm;

5, line direction: right to left

6, the installation area: length×width*height = 0.5m * 0.2m * 0.4m,

; weight: about 20KG

7. Power: 220V ;

8. Body color: white.

9, Delivery date: 8days.

Main Motor Power	90W
Heating Power:	120W
Machine Size	0.6M
Screw	Single screw Extruder
Diameter	15 mm.
L/D	14:1
Raw material	38CrMoAlA
surface treatment	Nitrogenization and polished
Inner surface treatment	Nitrogenization and polished
Barrel
Material	38CrMoAlA
Inner surface treatment	Nitrogenization and polished
The nitride layer thickness	0.5~0.7 mm.
The surface hardness	HV850~940
Controlling system
Extruder total Power	210W
Control Type	Single phase electronic speed control
