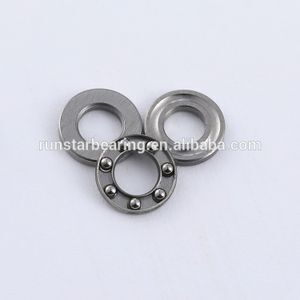

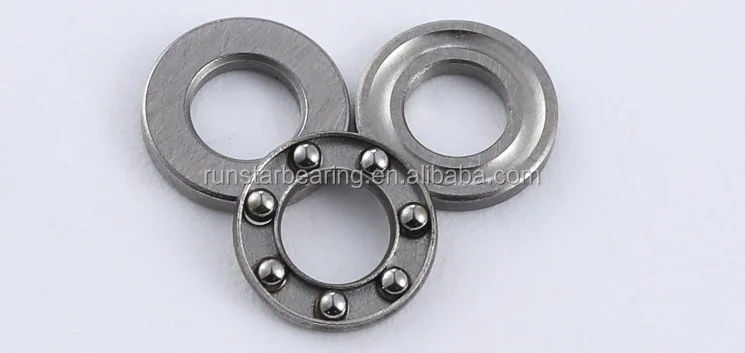

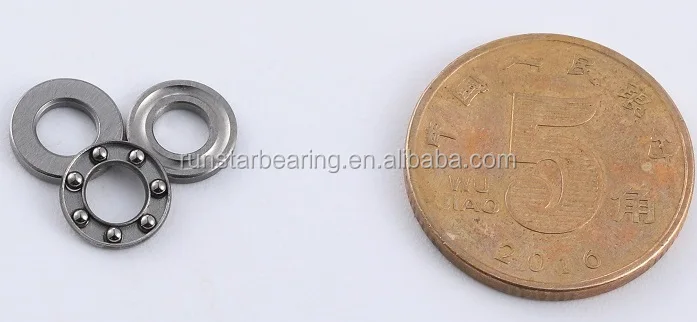

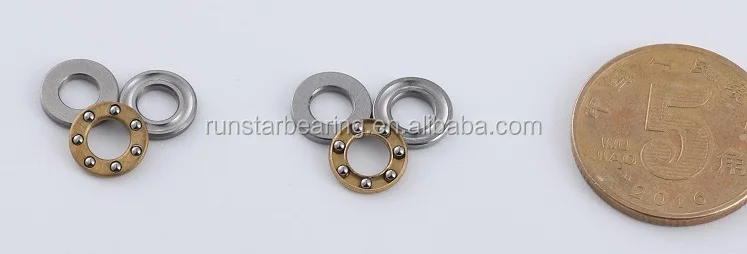

axial ball bearing manufacturer f4-9m thrust ball bearing
- 0.22 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Package: | at request; | CERTIFICATE: | ISO9001:2015,Reach and RoHs; |
| Single gross weight: | 0.001 KG; | Structure: | Thrust; |
| WIDTH: | 3.5mm; | Number of Row: | Single Row; |
| Feature: | Long Life Low Noise; | Cage: | Steel Cage.brass Cage.nylon Cage; |
| Place of Origin: | Fujian China; | Seals Type: | OPEN; |
| Precision Rating: | ABEC-1,ABEC-3,ABEC-5; | Packaging Detail: | one piece per plastic bags seperately or at your request; |
| Applicable Industries: | Manufacturing Plant; | Type: | BALL; |
| Single package size: | 1X1X0.5 cm; | Selling Units: | Single item; |
| Brand Name: | RUNSTAR; | Material: | Chrome Steel GCr15; |
| Model Number: | F4-9M; |
| Type | d | D | d1 | D1 | H | Load | Load Rating Cor(N) | Max. Speed | steel ball | ||
| Rating | rpm | ||||||||||
| Cr(N) | Grease | Oil | piece | diameter | |||||||
| F3-8M | 3 | 8 | 3.2 | 7.8 | 3.5 | 600 | 480 | 11000 | 15000 | 6 | 1.588 |
| F4-9M | 4 | 9 | 4.2 | 8.8 | 4 | 800 | 520 | 8000 | 12000 | 6 | 1.588 |
| F4-10M | 4 | 10 | 4.2 | 9.8 | 4 | 658 | 580 | 6000 | 10000 | 6 | 1.588 |
| F5-10M | 5 | 10 | 5.2 | 9.8 | 4 | 950 | 830 | 5100 | 8100 | 7 | 1.588 |
| F5-11M | 5 | 11 | 5.2 | 10.8 | 4.5 | 988 | 880 | 5000 | 8000 | 7 | 1.588 |
| F5-12M | 5 | 12 | 5.2 | 11.8 | 4 | 988 | 880 | 5000 | 8000 | 7 | 1.588 |
| F6-12M | 6 | 12 | 6.2 | 11.8 | 4.5 | 1600 | 1255 | 5000 | 7000 | 8 | 2 |
| F6-14M | 6 | 14 | 6.25 | 13.8 | 5 | 1800 | 1588 | 4000 | 7000 | 8 | 2.381 |
| F7-13M | 7 | 13 | 7.2 | 16.8 | 4.5 | 1422 | 1255 | 4000 | 7000 | 9 | 2 |
| F7-15M | 7 | 15 | 7.2 | 14.8 | 5 | 2200 | 2000 | 3600 | 7100 | 8 | 2.5 |
| F7-17M | 7 | 17 | 7.2 | 16.8 | 6 | 2600 | 2256 | 3500 | 7000 | 8 | 2.381 |
| F8-16M | 8 | 16 | 8.2 | 15.8 | 5 | 2500 | 3000 | 4000 | 8000 | 9 | 3 |
| F8-19M | 8 | 19 | 8.2 | 18.8 | 7 | 3452 | 3000 | 3000 | 5000 | 8 | 3.175 |
| F9-20M | 9 | 20 | 9.2 | 19.8 | 7 | 3356 | 2999 | 2500 | 4500 | 8 | 3.175 |
| F10-18M | 10 | 18 | 10.2 | 17.8 | 5.5 | 2230 | 2721 | 2500 | 4500 | 10 | 2.381 |
