SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667V details
Packaging Detail:Nude;Tanker Capacity:28000L;
Package Preview:;Storage:Fuel;
Supply Ability:100 Unit/Units per Month;Tank Volume:15001 - 30000L;
Port:Any China Port;Horsepower:371HP;
Place of Origin:China;Drive Wheel:8X4;
Payment Terms:L/C,D/A,D/P,T/T;Transmission Type:Manual;
Driving Type:8x4 LHD/RHD;Condition:New;
Fuel Type:Diesel;Brand Name:HOWO;
Gross Vehicle Weight:50000;Engine Capacity:9726CC;

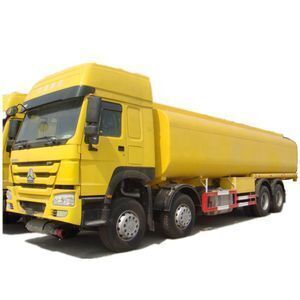

SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667V

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.



Model

ZZ1317N4667V

Cabin

HW79 High Roof Cabin, with two seats and two beds, with Air Conditioner and electric window. Option: HW76 with one bed



Engine

Model

WD615.47

Horse Power (Hp/rpm)

371/2200, Euro II Emission Standard

Max.Toruqe(Nm/rpm)

1460/1100-1600

Displacement              L

9.726



Type

6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine

Transmission

HW19710, 10 speeds forward and 2 speeds reverse.

Front Axle

HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs

Driving Axle

HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20

Fuel Tank Capacity (L)

400L Diesel Tank

Kurb Weight (kg)

14,500

Loading Capacity (kg)

35,500

Gross Vehicle Weight (kg)

50,000

Overall Dimension(L*W*H)(mm)

11984×2500×3785

Tank Capacity(m3)

28

Tank Material

Carbon Steel

Nos of Compartment

Customized design from 1 to 6

Wheelbase(mm)

1800+4600+1350

Max. Speed (km/h)

75







Why Choose Us



Worldwide Sales, Marketing and Service Network

During the past 15 years, we have exported over 5,000 units of different kinds of heavy duty trucks to over 50 countries in Africa, Middle East, Southeast Asia, and South America. Our overseas authorized truck dealers and service dealers are all around the world.

Wide Ranges of Various Modified Trucks with Different Applications

Our main products range from Dump Truck, Tractor Truck, Concrete Mixer Truck, Van Truck, Lorry Truck, Off-road Dump Truck, Tanker Truck, Truck Mounted Cranes, trailer, tanker trailers and all other kinds of modified trucks. We can design, produce and supply our customers with any special vehicle.

Flexible Payment Terms for Different Trucks and Business

Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods.



Excellent and Outstanding After Sales Service

Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.





High Efficiency is One of Our Goal and Promise to Our Customers

We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.



Latest Truck Development and Trends Shall Be Delivered Regularly

We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.



Who we are?

The most professional truck and spare parts distributor in China;

The leading truck and spare parts exporter in China;

The most comprehensive truck and spare parts solution provider in China;

The most worry-free and most satisfactory and reputable supplier for you in China.



We will never let you down if you choose us.



Contact us:

Sales Manager: Lock Wu

Tel/Fax: +86 21 58053971

Mobile(WeChat/WhatsApp/Viber): +86 15801934694

Mobile(Standby): +86 18621866987



Packaging Detail:Nude;Tanker Capacity:28000L;Package Preview:;Storage:Fuel;Supply Ability:100 Unit/Units perMonth;Tank Volume:15001 - 30000L;Port:Any
above is detail introduction of SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667V, include price, model, picture and supplier of SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667V.
