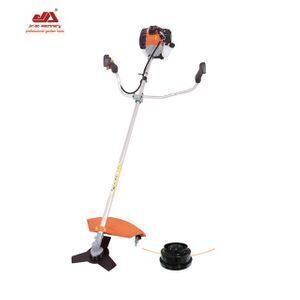

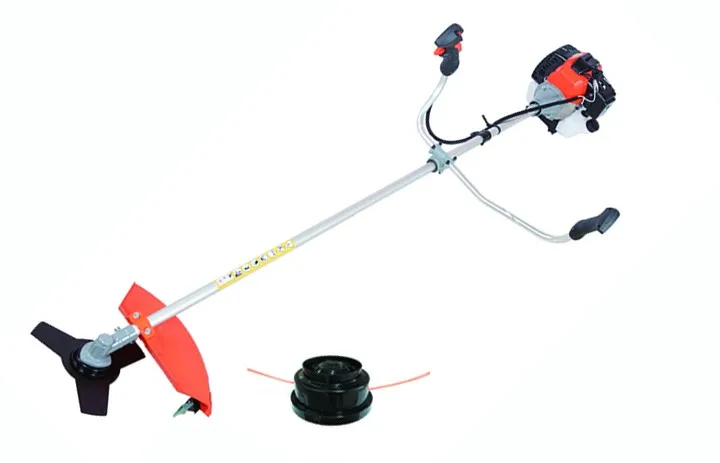

43cc Gasoline Brush Cutter with Blade and Nylon Cutter Head

Supplier: Shandong Jinao Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Andy Zhu
Price: $41.00 / >=100 sets
Min. Order: 100 sets

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Supply Ability:	15000 Set/Sets per Month;
Port:	Qingdao Port, China;	Application:	Gardening,landscaping,Lawn Maintenance,Weed Removal;
Brush Cutter Type:	Gas Brush Cutters;	Packaging Detail:	Qty/20': 600sets Qty/ 40': 1300sets Qty/ 40'HQ: 1435sets;

Product Description

Product Application

Making gardening easier and more affordable.

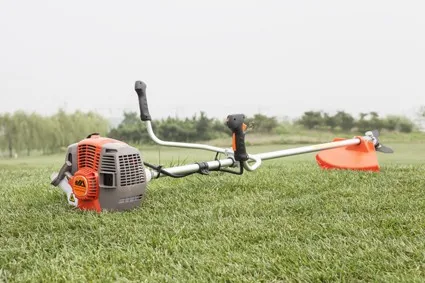

A brush cutter is a powered garden or agricultural tool used to trim weeds, small trees, and other foliage not accessible by a lawn mower or rotary mower. Various blades or trimmer heads can be attached to the machine for specific applications. Our 43cc & 52cc brush cutter with light weight and feature a powerful high-torque engine is the best choose of your landscapers.

SPECIFICATIONS FOR CG430 BRUSH CUTTER
Engine	Engine Model	1E40F-5A
	Displacement	42,7 cc
	Piston diam.	40 mm
	Piston stroke	34 mm
	Fuel filter	Felted wool (inside the fuel tank)
	tank capacity	1.2L
Shaft Pipe (tube)	Material	Aluminium
	Form	Straight
	Length	1.5m
	Diameter	26 mm
	Wall thickness	1,5 mm
	Kind of handle	Bicycle type
	Processing	Anodic oxidation
	Pipe hardness	14-16 HRC
	Transmission	40Cr alloy hard steel shaft
	Hardness	50-58 HRC
	Antivibration system	Yes (rubber gasket between the tube and motor, the tube and fixed handle part also)
Blade	Blade	Ø 255 mm × 1,4 mm
	Blade hardness	42HRC
	Trimmer head's material	Polyamide PA
	Trimmer line	2mx2.4mmx2pcs
	Material of sheild	Co-polypropylene COPP

Main Features

1) Jinao built premium 2-cycle engine

2) 1-piece electronic ignition

3) Chrome-plated cylinder

4) Forced-air cooling, discharged away from operator

5) Easy access stop switch

6) Automatic centrifugal clutch

7) 2-ring piston

8) Full anti-vibration system

9) Offset ergonomic handlebar for operator comfort

10) Carbon steel main shaft with splined ends reduces vibration and operator fatigue

11) Heavy-duty gear case with helical gears for smooth power transfer

12) High-grade aluminum outer tube

Detailed Images

Machine Parts

Name: Gasoline Engine

Premium 2-cycle engine, light weight and powerful high-torque engine.

Main Features

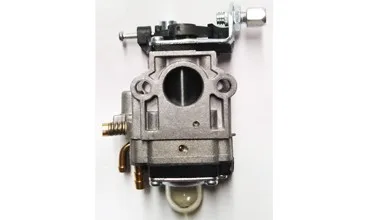

Name: Carburetor
Brand: Ruixing & Hualong

China top brand carburetor.

Machine Parts

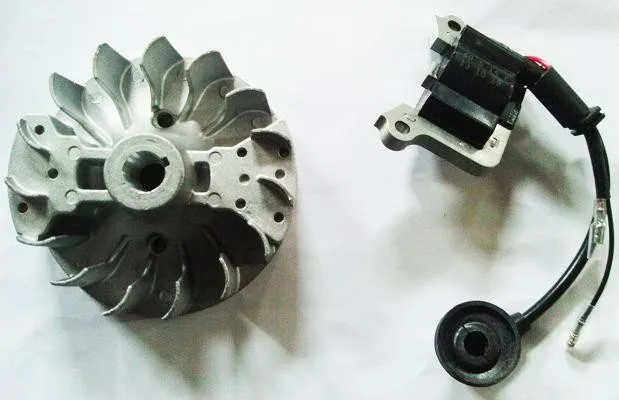

Name: Ignition Coil

High voltage line can bear 5 kilograms or more of pull.

Main Features

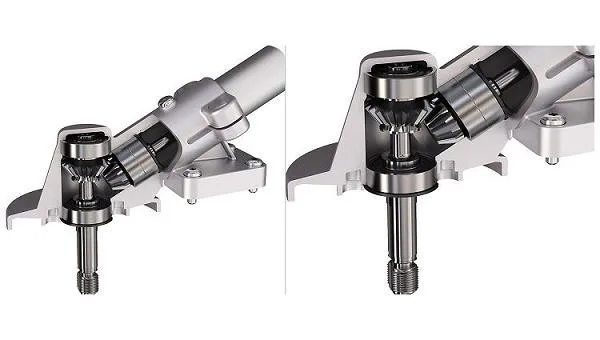

Name: Gear Case

Heavy-duty gear case with helical gears for smooth power transfer.

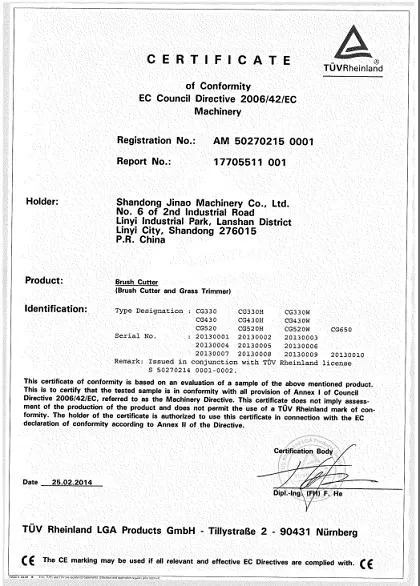

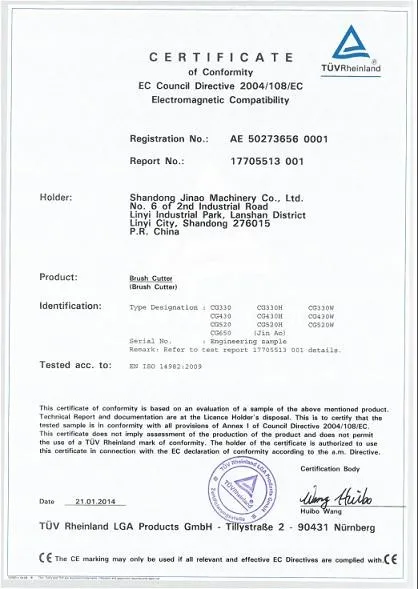

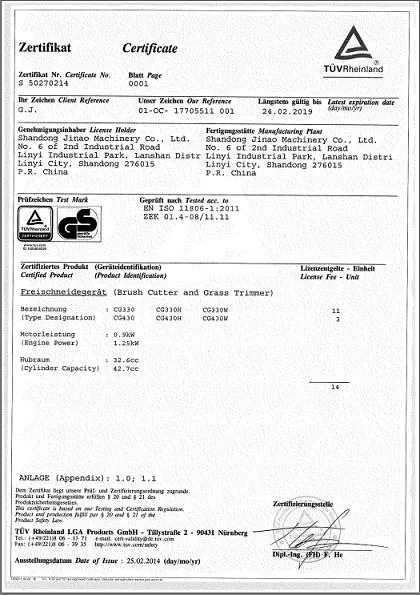

Certifications

Packing & Delivery

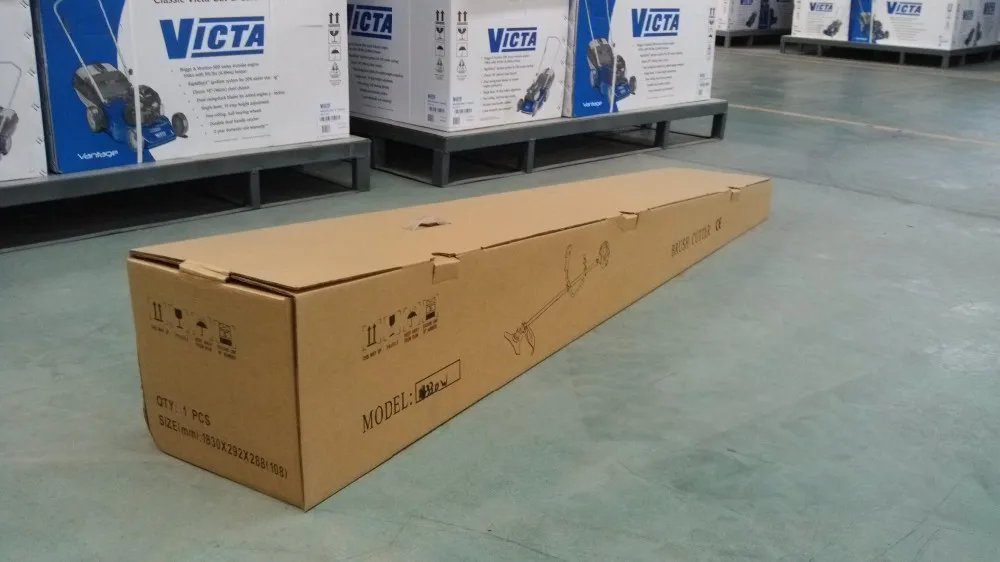

Packaging
Size	1830 (L) * 292 (W) * 288/108 (H)MM
CTNS/SET	1 box/set
Packaging Details	The normal package is carton box. Color box is available. Qty/20': 270sets Qty/ 40': 550sets Qty/ 40'HQ: 650sets

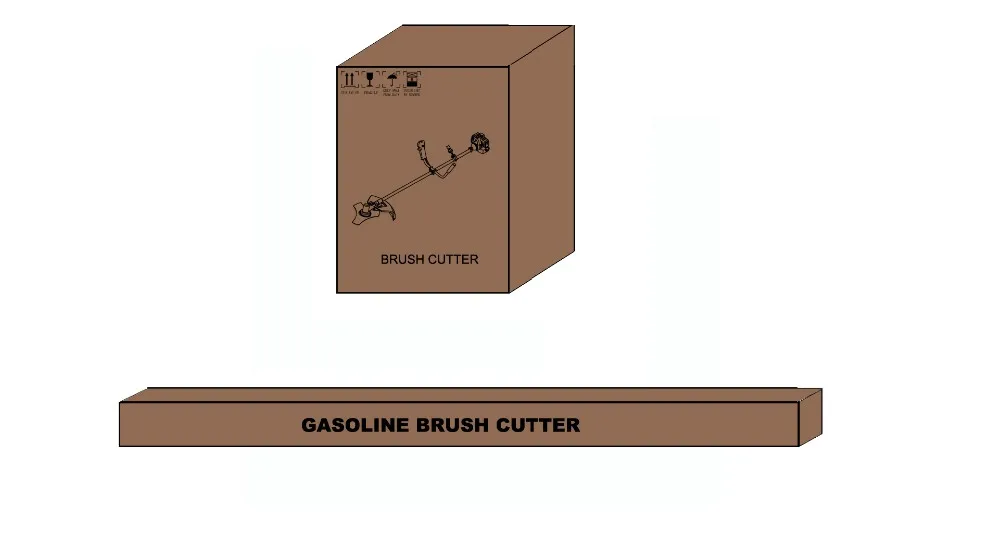

Packaging
Size	Engine: 300(L)x230(W)x345(H)mm Pipe: 1638(L)x110(W)x103(H)mm
CTNS/SET	2 box/set
Packaging Details	The normal package is carton box. Color box is available. Qty/20': 600sets Qty/ 40': 1300sets Qty/ 40'HQ: 1435sets
