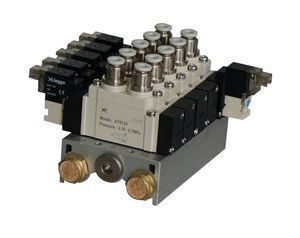

smc pneumatic valve
- 5.00 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Working Pressure: | 0.15 - 0.8 Mpa; | Coil: | DIN & Leading Wire; |
| Port: | NINGBO; | Place of Origin: | Zhejiang China; |
| Voltage: | 220VAC,110VAC ,12VDC ,24VDC etc; | Supply Ability: | 5000 Piece/Pieces per Day; |
| Standard or Nonstandard: | Standard; | Payment Terms: | L/C,T/T,Western Union; |
| Packaging Detail: | 1 pc packed in 1 box ,Serval pcs packed in one inner box; | Thread: | G; |
| Package: | One pc packed in one box; | Brand Name: | RFS; |
| Type: | Valves; |
Details
| Item No. | Function | CV Value | Connection Port | Pressure Range | Working Media | Max. Operating Frequency | Media Temp. |
| XY3120-00 | 5/2 Single Coil | 0.18 | M5 | 0.15-0.7 Mpa | Compressed Air
Pilot Type | 10 Hz | -10 ~ 50 ℃ |
| XY3140-00 | |||||||
| XY3220-00 | 5/2 Double Coil | ||||||
XY3240-00 | |||||||
| XY3320-00 | 5/3 Center Close Type | 0.13 | 0.2-0.7 Mpa | 3 Hz | |||
| XY3420-00 | 5/3 Center Exhaust Type | ||||||
| XY3520-00 | 5/3 Center Pressure Type | ||||||
| XY5120-01 | 5/2 Single Coil | 0.61 | G1/8 | 0.15-0.7 Mpa | 5 Hz | ||
| XY5140-01 | Namur | ||||||
| XY5220-01 | 5/2 Double Coil | G1/8 | |||||
| XY5240-01 | Namur | ||||||
| XY5320-01 | 5/3 Center Close Type | 0.46 | G1/8 | 0.2-0.7 Mpa | 3 Hz | ||
| XY5420-01 | 5/3 Center Exhaust Type | 0.59 | |||||
| XY5520-01 | 5/3 Center Pressure Type | 0.46 |
- Low Power Consumption
- Quick Response < 12 ms
- Individual or Manifold Mounting
- Long Life Time - 50000000 times
Packaging & Shipping
