Solid tungsten carbide valve parts valve stem

Supplier: Chengdu Chuanying Carbide Co., Ltd.
Region: Sichuan, China
Contact: Mr young zhang
Price: $55.00 /kilogram
Min. Order: 1 kilogram

Click here to contact

Product details

Model Number:	various;	Material:	tungsten carbide;
H(mm):	5~225;	Machining:	OEM;
ID(mm):	4~450;	Brand Name:	Chuanying Carbide;
certificate:	iso9001:2008 TUV;	Port:	ALL;
Payment Terms:	L/C,D/A,D/P,T/T;	Surface:	Ra0.1,Ra0.2,Ra0.8;
Packaging Detail:	standard export carton or discuss;	Supply Ability:	500 Ton/Tons per Year valve stem;
Application:	valve seal;	surface:	polished or blank;
Place of Origin:	Sichuan China (Mainland);	key words:	valve stem;
id(mm):	0.8~400;	material:	YG6,YG8,YG10,YG15,YWN6,YWN8,YWN10....;

Product Description

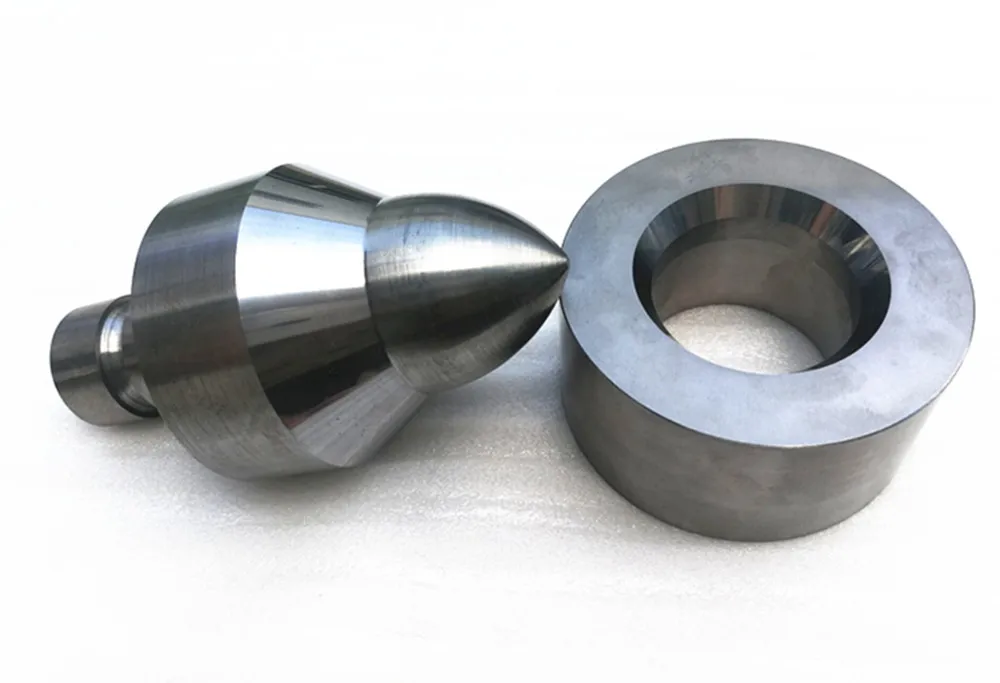

More tungsten carbide valve stem

Material Grade

Cobalt Binder Grades

Grade	Binder (Wt%)	Density (g/cm³)	Hardness (HRA)	TRS (>=N/mm²)
YG6	6	14.8	90.0	1520
YG6X	6	14.9	91.0	1450
YG6A	6	14.9	92.0	1540
YG8	8	14.7	89.5	1750
YG12	12	14.2	88.0	1810
YG15	15	14.0	87.0	2050
YG20	20	13.5	85.5	2450
YG25	25	12.1	84.0	2550

Nickel Binder Grades

Grade	Binder (Wt%)	Density (g/cm³)	Hardness (HRA)	TRS (>=N/mm²)
YN6	6	14.7	89.5	1460
YN6X	6	14.8	90.5	1400
YN6A	6	14.8	91.0	1480
YN8	8	14.6	88.5	1710

Packaging

Shipping

Our service

Company Introduction:

Chengdu Chuanying Carbide Co.,Ltd is a comprehensive hi-tech enterprise specializing in the research, manufacture and trade of tungsten carbide products and diamond bit. The company, with a field of 80 acres and advanced technology, has a strong capability in independent development, manufacture and trade. The engineers and technicians account for more than 30% of total staffs. Bringing in foreign advanced equipment, our workshops have equipped more than 100 advanced tungsten carbide manufacturing equipment such as milling, grinding machine, press sintering equipment, CNC lathes and so on.

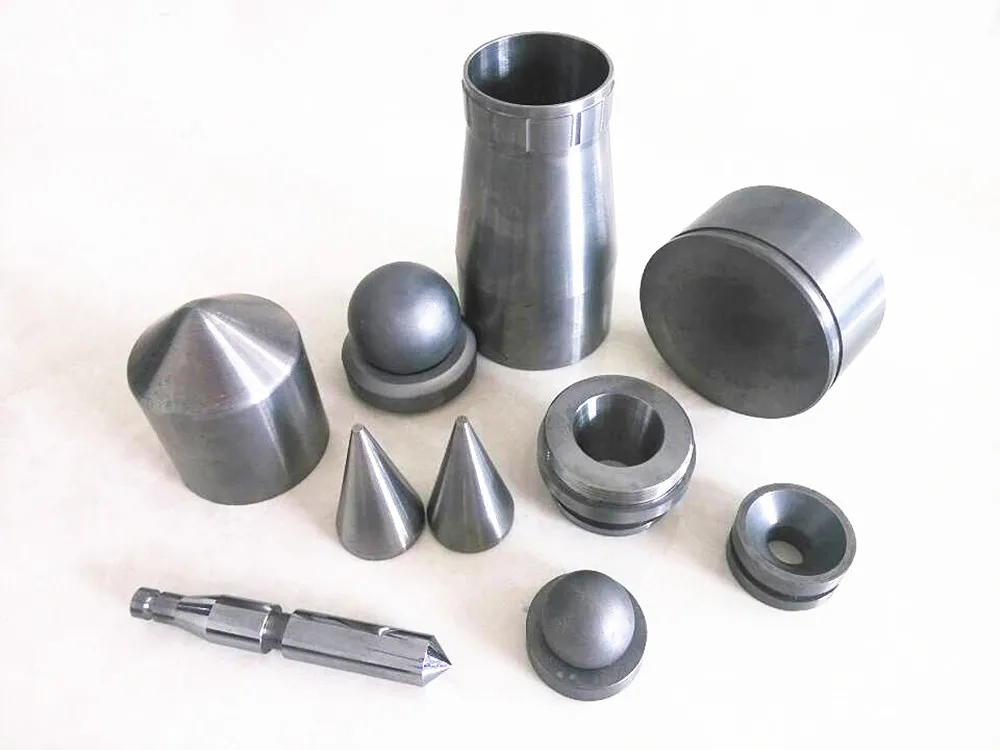

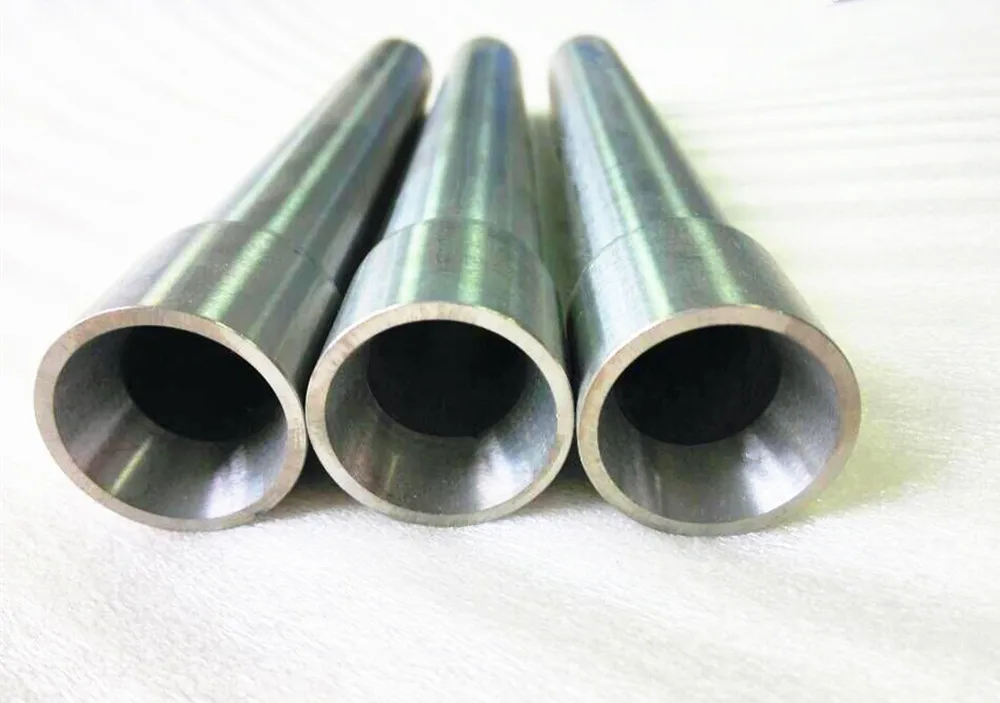

For tungsten carbide products, we make seal rings,shaft sleeve, nozzle, mental insert, blade and so on. Besides, we can produce special tungsten carbide mechanical sealing ring according the drawing.
