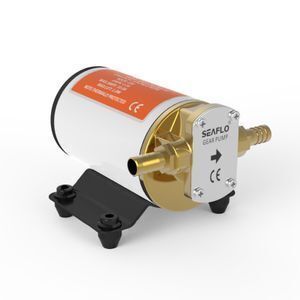

SEAFLO 12V Micro Electric Diesel Fuel Transfer Pump for Car

Supplier: Fujian Aidi Electric Co., Ltd.
Region: Fujian, China
Contact: Mr seaflo Liu
Price: $34.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Brand Name:	SEAFLO;	Max. Draw:	10 A;
Max. Liquid Temperature:	140℉[60℃];	Application:	Lubricant and viscous liquid transfer, Industrial use, Oil change pump;
Duty Cycle:	Intermittent;	Payment Terms:	L/C,T/T;
Inlet Port:	3/8"[9.52mm] FNPT;	Car Model:	All car;
Weight:	5.46 lbs[2.48 kg];	Certification:	CE, ROHS;
Motor:	Thermally Protected;	Place of Origin:	China;
Warranty:	12 moths;	Packaging Detail:	Each piece in a color box and 1 pieces into a master carton.;
Usage:	Fuel Oil;	Leads:	Wire leads;
OE NO.:	All car;	Max. Pressure:	Not Needed;

SEAFLO Profile

Product Description

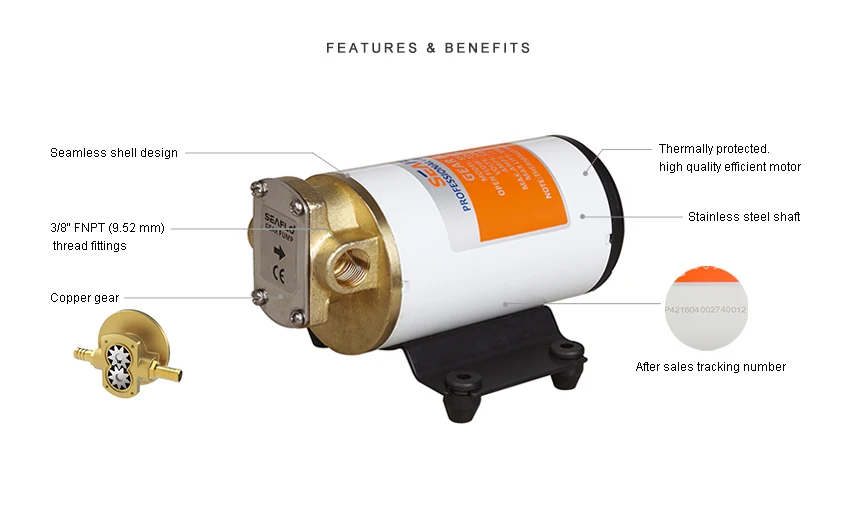

Features & Benefits

1.Perfect for pumping oil.
3.Metal pump head.
5.Metal gears.
7.Sealed motor design.

2.Thermally Protected Motor.

4.Self priming

6.Stainless Steel shaft.

Product Name	SEAFLO DC 12V 3.2GPM 12LPM Miniature Oil Gear Pump
Pump Type	Gear Pump
Max Flow Rate	12 LPM [3.2 GPM]
Max Pressure	Not Needed
Voltage	12 VDC, and 24V
Max Amp	10.0 A
Fuse	10.0 A
Motor Type	High quality seamless desigh that is thermally protected.
Impeller Material	Copper
Duty Cycle	Intermittent
Self Priming	9.8' [3.0 m] lift
Max Fluid Temp	140 °F [60 °C]
Inlet & Outlet Port	3/8"-18 FNPT, and contact us for more ports
Lead	Wire lead

SEAFLO gear pumps are positive displacement pumps, capable of operation in either direction. They may be used to perform a variety of oil transfer applications (DO NOT USE FOR GASOLINE?or other combustible fluids). We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.

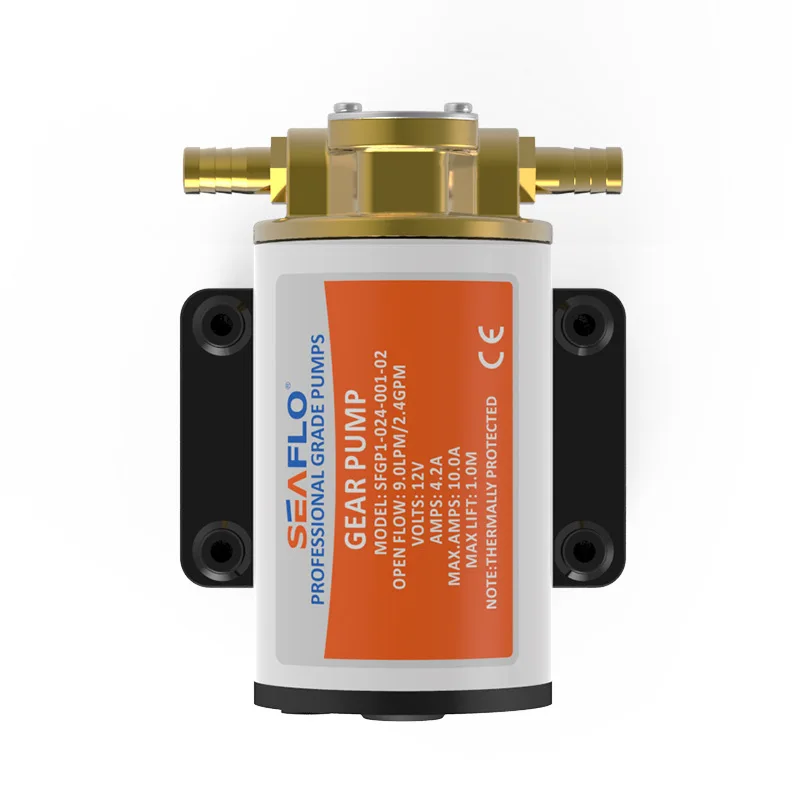

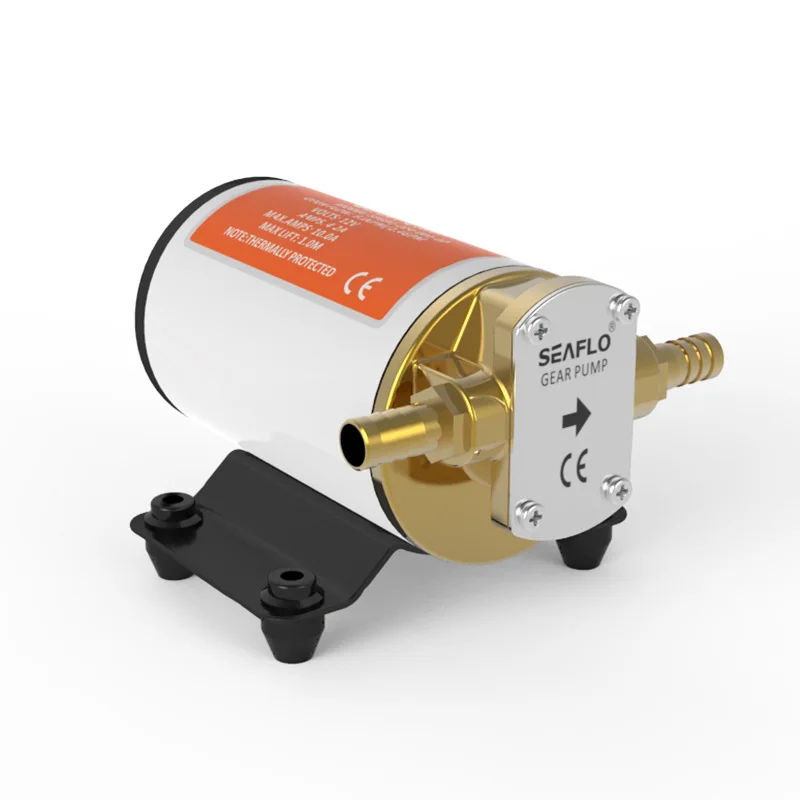

Product Show

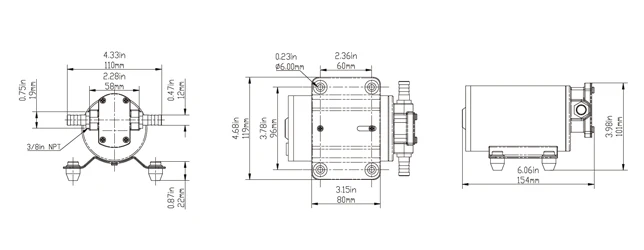

Dimensions

Product Details

STANDARD PUMP CONFIGURATIONS

Model

Voltage

Open Flow

GPM [LPM]

Impeller

Max Draw

ports

Dimensions

SFGP1-032-003-01

12 V

3.2 [12.0]

Copper

10.0 A

3/8" FNPT

7.68" x 5.12 "x 4.25'

195 x 130 x 108mm

SFGP2-032-003-01

24 V

3.2 [12.0]

Copper

6.0 A

3/8" FNPT

7.68" x 5.12 "x 4.25'

195 x 130 x 108mm

OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 160 PSI [11.0 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 2.2 GPM [8.3 LPM]. Material can be adjusted according to your requirement.

Application

Packaging & Shipping

Package Infomation

	Unit Pump Weight	5.3 lbs [2.4 kg]
	Selling Unit Size (L x W x H)	7.68" x 5.12" x 1.25 " [19.5 x 13 x 10.8 cm]
	Selling Unit Weight	5.74 lbs [2.61 kg]
	Master Carton Qty	8 pcs / carton
	Master Carton Size (L x W x H)	21.65" x 8.39" x 9.65" [55 x 21.3 x 24.5 cm]
	Master Carton Weight	47.89 lbs [21.72 kg]
