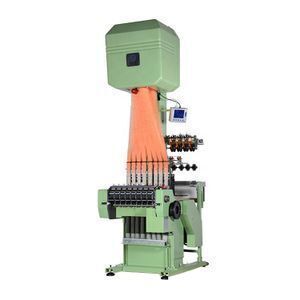

Narrow Fabric computerized electronic jacquard needle loom,jacquard patterned elastic tape/webbing/woven belt label machine

Supplier: Guangzhou Yong Jin Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr YONGJIN MACHINERY
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Garment Shops,Manufacturing Plant,Textile industry;	Export Markets:	Southeast Asia, the Middle East, Europe and America;
Port:	Huangpu Guangzhou;	Place of Origin:	Guangdong China;
Certification:	ISO9001 CE;	Size:	1.5m0.98m2.6m;
Machinery Test Report:	Provided;	Number of Hooks:	192A-240A;
Production Capacity:	300sets / Month;	Weight:	850KG;
Core Components:	MOTOR;	Spare parts:	Available to sale;
Power:	380V,2.2KW;	Reed Width:	27mm;
Dimension(LWH):	1.5m0.98m2.6m;	After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support,Online support;
Showroom Location:	turkey,VIET NAM,indonesia,Thailand,BANGLADESH;	Warranty of core components:	1 YEAR;
Application:	To produce narrow fabrics straps/belt/webbing/tape and so on,Produce Jacquard Elastic;	Payment Terms:	L/C,T/T,Western Union;
Type:	Jacquard Loom;	Speed:	Designed Maximum 1200 RPM;
Warranty:	1 YEAR;	Key Selling Points:	Automatic;
Local Service Location:	turkey,Thailand;	Marketing Type:	Ordinary Product;
Commodity Name:	High Speed Needle Loom;	Video outgoing-inspection:	Provided;
Brand Name:	YongJin;	Condition:	New;
After Warranty Service:	Video technical support,Online support;	Packaging Detail:	each loom : Bubble pack + wellpappe + stretch films+ wood case;
Supply Ability:	300 Set/Sets per Month;

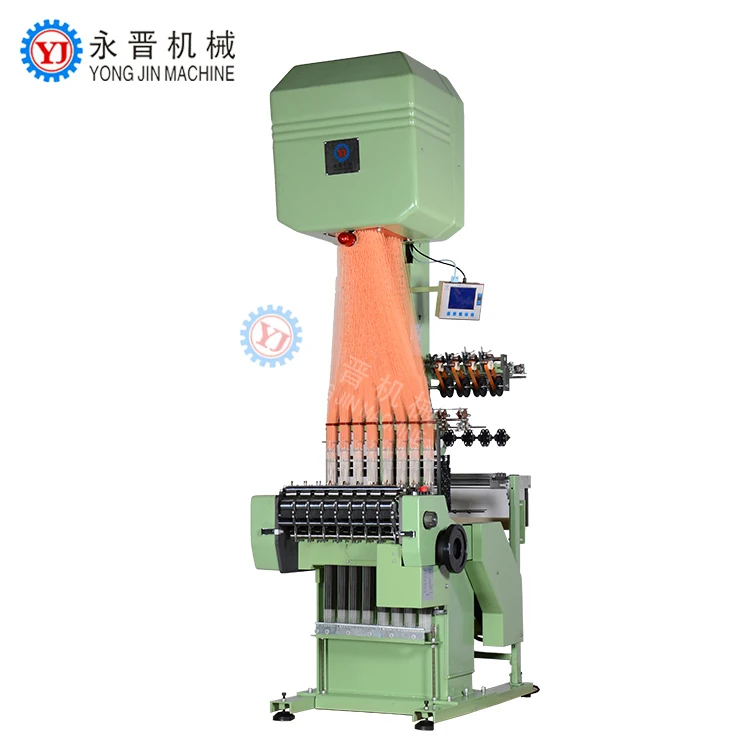

Narrow Fabric computerized electronic jacquard needle loom,jacquard patterned elastic tape/webbing/woven belt label machine

* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.

Product Description

1. Harness minimum 192 hooks, maximum 1056 hooks, can make diversify tapes.

2. The machine installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

3. Independent development jacquard head, high precision & wear-resistant.

4. Bakeltie board & Harness are imported from Switzerland, the heald is imported from Italy.

5. Using import bearing on machines, INA bearing from Germany & NSK bearing from Japan.

6. High speed, can be up to 900-1200rpm, increasing the capacity.

Video link

https://youtu.be/80VmuYpsSWg

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B		TNF6/55A
Number of hooks	384/448/320/512/640/720		192
Number of tapes	4		6
Width of reed	66		27
Maximum of tapes	64		25
Number of frame	12		12
Circulation	1:8/16-32		1:8/16-32
Speed	500-1200rpm		500-1200rpm

Main Features

1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.

2.The integration solenoid valve setting is small in size and sensitive while working.

3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.

4.The tension of warp is controlled automatically with the help of advanced technology

5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.

6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.

7.The woven flower shape is showed on windows directly and clearly.

8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.
