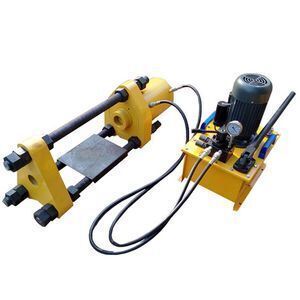

150 ton portable hydraulic track link pin press for sale

Product details
Certification:ISO9001;Applicable Industries:Machinery Repair Shops,Construction works ;
Marketing Type:New Product 2020;Port:Xiamen port;
Warranty:5 year,1 YEAR;Video outgoing-inspection:Provided;
Packaging Detail:High quality excavator undercarriage spare part spare part for D9N :Standard export fumigated wooden pallet;Fit Machine:PC45-PC400,E70-D9L,D20--D155;
Showroom Location:none;Condition:New;
After-sales Service Provided:Video technical support,Online support;Local Service Location:malaysia;
Machinery Test Report:Provided;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Delivery time:Within 30 days after contract established;Place of Origin:Fujian China;
After Warranty Service:Video technical support,Online support;Supply Ability:1000 Piece/Pieces per Month excavator undercarriage spare part spare part for D9N;
Fit Link Pitch:135,171,175,190,203,216,228;Brand Name:W;
Usage:track repair,track pin puller;





                           WORKING PRINCIPLE
The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly.
Hydraulic system of electrically driven track press: hydraulic system (pump station) is installed on the right side of the host. The entire hydraulic control system drives the high-pressure pump to input the pressure oil through the motor. After the solenoid reversing valve, the oil is respectively input to enable the cylinder plunger to reciprocate up and down. In the neutral position, the system is unloaded and the oil flow goes into the tank. The press is electro-hydraulic controlled. Extra hand pump can be equipped for field operation without power supply.



                          100T TRACK PIN PRESS MAIN PARAMETERS



1 Nominal force of oil cylinder KN 1000
2 Press stroke mm 180
3 Rated pressure MPA 20
4 Center height mm 100
5 Motor power KW 4
6 Rated flow ml/r 5



                             200T TRACK PIN PRESS MAIN PARAMETERS

1

Nominal force of oil cylinder

KN

2000

2

Press stroke

mm

180

3

Rated pressure

MPA

31.5/45

4

Center height

mm

110

5

Motor power

KW

4

6

Rated flow

ml/r

5



want to know more details of track link press machine,kindly click here





Product Features





Certification ISO9001
Function

track repair,track pin puller

Suit for Caterpillar,Hitachi,Volvo,and so on
Fit Link Pitch 135,171,175,190,203,216,228
Delivery Time Within 30 days after constract established











BRAND CATALOGUE
BULLDOZER D20 D30 D31 D37 D40 D41 D45 D50 D60
D65 D68 D75 D80 D85 D150 D155 D275 D355
D3C D3D D4C D4D D4H D5 D6C D6D D6H
D7G D8K D8N D9N D10N D11N
KOMATSU PC30 PC40 PC45 PC60 PC75 PC100 PC120 PC150 PC200
PC220 PC300 PC350 PC400
CATERPILLAR E70B E110 E120B E215 E235 E307 E311 E312 E322
E180 E240 E200B E320 E300 E300B E330 E325
HITACHI EX30 EX40 EX60 EX100 EX120 EX200 EX220 EX270 EX300
EX400 EX600 UH043 UH052 UH53 UH07 UH081 UH082 UH083
FIAT-HITACHI FH120 FH130 FH150 FH200 FH220 FH270 FH300
VOLVO EC55 EC130 EC150 EC200 EC210 EC240 EC290 EC360
DAEWOO DH55 DH130 DH180 DH200 DH280 DH300 DH320
HYUNDAI R60 R130 R200 R210 R220 R290 R320 R914
KATO HD250 HD400 HD450 HD700 HD770 HD820 HD1250
KOBELCO SK40 SK60 SK100 SK120 SK200 SK220 SK04-2 SK07
SK07N2 SK09 SK12 SK14 SK300 SK310 SK400
JCB JS70 JS75 JS110 JS130 JS160 JS180 JS200 JS220
JS240 JS260 JS300 JS330
SUMITOMO SH70 SH100 SH120 SH160 SH200 SH260 SH265 SH280 SH300
SH340 LS2650 LS2800 LS3400 LS4300
  MX8 SE200 SE210 SE280 MX292 SE350
MITSUBISHI MS110 MS120 MS140 MS180



All manufacturer's names,symbols&descriptions are used for reference purpose only,and it is not implied that and any part listed is the product of these manufacturers.



Xiamen Worthpart machinery Co., Ltd, an excellent supplier of Excavators parts and Bulldozers parts in China, our main products are Undercarriage Parts for excavator and bulldozer, such as track rollers, carrier rollers etc.

With more than 8 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.





1. You are a trader or a manufacture?
We are an industry and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. The distance is  80Kms, 1.5 hours.

2. How can I be sure the part will fit my excavator?
Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.

3. How about the payment terms?
We usually accept T/T or Trade Assurance. other terms also could be negotiated.

4. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable.

5. What is your delivery time?
FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days.

6. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
