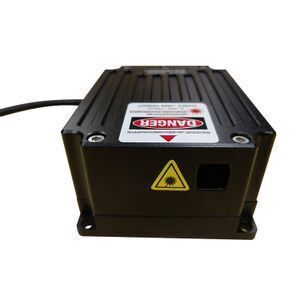

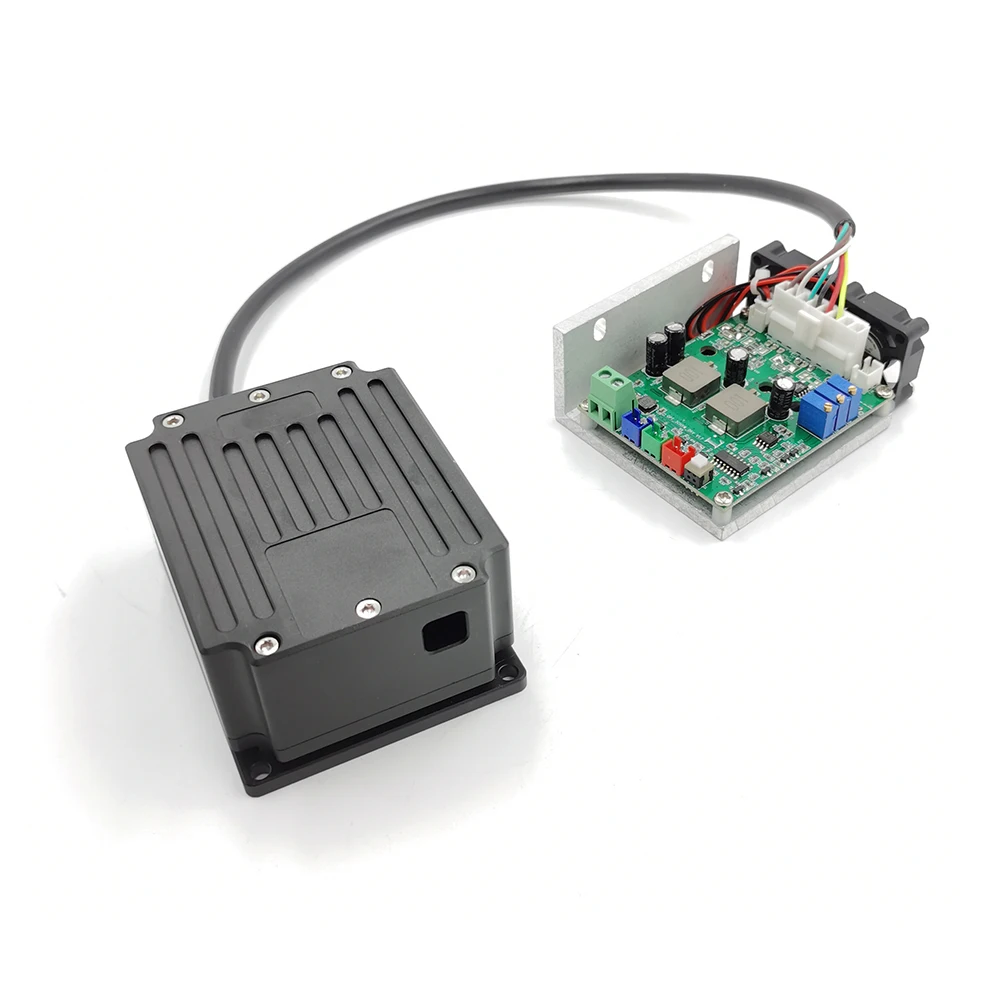

Professional laser module supplier 5000mW rgb laser module
-
Supplier: Shenzhen Optlaser Technologies Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Novo Duan -
Price: $383.55 /unit -
Min. Order: 1 unit
Product details
| Brand Name: | Optlaser; | Modulation Mode: | TTL/Analog; |
| Emitting color: | RGB; | Package Type: | Through Hole; |
| Max. Forward Voltage: | 12V; | Max. Reverse Current: | 500mA; |
| Type: | laser diode; | Port: | Yantian; |
| TEC Cooling: | NO; | Lifespan: | 8000h; |
| Divergence: | 1.2~1.3mRad; | Package: | Carton; |
| Place of Origin: | China; | Packaging Detail: | Mail box, foam protection inner. 1pc/box. customized packaging available.; |
| Wavelength: | R:638nm G:520nm B:445nm; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
| Model Number: | W5000; | Application: | Laser; |
| Max. Reverse Voltage: | 12V; | Max. Forward Current: | 500mA; |
| Modulation Frequency: | 0~50Khz; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Item | Project | Parameter |
| 1 | Model | W5000 |
| 2 | Wavelength |
R:638nm G:520nm B:445nm |
| 3 | Output power |
R:1500mW G:1000mW B:2500mW |
| 4 | Spot mode | Round |
| 5 | Divergence | 1mrad |
| 6 | Laser-grade | Class3B |
| 7 | Modulation | TTL/Analog |
| 8 | Input stability | ±5% |
| 9 | Input voltage | 12V |
| 10 | Power consumption | 35W |
| 11 | Operating temperature | -10~40℃ |
| 12 | Cable length | 250mm |
| 13 | External heat dissipation | No |
| 14 | Lifetime | 10000h |
| 15 | Size | 100*65*32mm |
| 16 |
N.W. |
760g |
