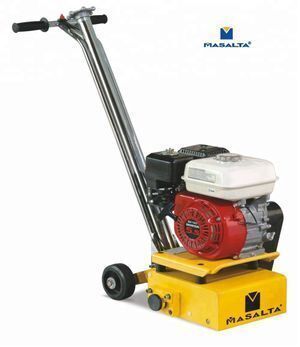

Masalta Scarifying Machine (c/w electric motor) 2.2kw

Product details
Packaging Detail:iron or wood pallet+carton box;Delivery Detail:40 days against receipt of the payment;
Supply Ability:450 Unit/Units per Month;Voltage:220V/380V;
Payment Terms:L/C,D/A,D/P,T/T;Power(W):5.5HP;
Brand Name:MASALTA;Certification:ISO CE;
Working Width:200mm,200 mm;Model Number:MC8;
Features:10mm Scarifying Depth;Working Depth:3~5mm;
Light Construction Equipment:Scarfying Machine;Condition:New;
Port:Shanghai;Weight:60kg;
Dimension(L*W*H):910*470*880;After-sales Service Provided:Overseas service center available;
Place of Origin:Anhui China;Certificate:CE;
Warranty:1 Year;

Versatile machine for any surface and costing.

Our strong and reliable MC8 Scarfying Machine( Also called floor planner, floor scarifiying, milling machine or surface preparation machine)is ideal for concrete, asphalt and steel surface.

Utilizing our own manufactured, a variety of hardened steel cutter or tungsten carbide tipped (TCT)  cuttrts or tungsten carbide milling flails, it can be used for:

* Sidewalk repair

* Coating removal

* Floor preparation or cleaning

* Creating non-slip surface

* Traffic marking removal

* Concrete joints and uneven

* Surface grinding



Features:

* Cutting depth adjustment

* Strong handle

* Front mounting lifting handle makes easy transportation

* Anti-vibration mounts makes comfortable operation

* Powder coated finish

* Dust control outlet

* Easy-control engine stop switch

* Sealed quality bearing ensure longer life

Technical Specification:

MODELMOTORPOWER kw(hp)WORKING WIDTH mm(in)POERATION MASS kg(lb)
MC8EElectric Motor2.2(3.0)200(8)42(92)



--- MC8E with Electric Motor



---Available to be connected with dust control system



--- Edger cage, ideal for working on small surface, edges and cornes, is available as optional.



---Scarifying Cutters

* Range of sutters including Tungsten Carbide Tip/TCT Cuttrts, Steel Milling Cutters and Steel Scarifying Cutters to suit most machines.

* Hardened bore of fully hardened body( for TCT cutters) and hardened body (for steel cutters)

* Plated body

* High grade carbide tip k30(CTC cutter)



---Cage Assembly M200 with TCT cutter 204016.2

Milling of misaligned footpath, scabbing of concrete surfaces and milling concrete joints.



--- Cage Assembly M300 with milling cutter 304022.

Line removal on concrete and asphalt surfaces.



---Cage Assembly M400 with Steel cutter 404012.

Removal of thick urethane rubber, cocal tar, heavy epoxies, marine non-skid and asphalt.



--- Cage Assembly M500 with TCT cutter 204016.2

Concrete grooving of agricultural barns, ramps, safety grooving etc.



--- Cutter shaft



--- Edge cage 823000



--- A type cage



Btype cage
