ECHO Automatic Premade Stand Up Zip Lock Bag Packaging Machine For Food

Supplier: Wenzhou Echo Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Echo Chang
Price: $21000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	800 Set/Sets per Year;	Installation:	7 days/engineer with trainning;
Key Selling Points:	long service life;	Condition:	New;
Package Preview:	;	Local Service Location:	Egypt,canada,turkey,UNITED KINGDOM,United States,ITALY,france,GERMANY,VIET NAM,philippines,brazil,peru,SAUDI ARABIA,indonesia,pakistan,INDIA,Mexico,RUSSIA,spain,Thailand,japan,malaysia,Australia,Morocco,argentina,South Korea,CHILE,UAE,Colombia,Sri Lanka,Romania,BANGLADESH,south africa,KAZAKHSTAN,UKRAINE,kyrgyzstan,NIGERIA,uzbekistan,Tajikistan;
Payment item:	TT30 % down,70% balance before shipping;	Dimension(LWH):	171015051640mm;
Application:	BEVERAGE,commodity,Food,Machinery & Hardware,Medical,CHEMICAL;	Type:	Multi-Function Packaging Machine;
Factory:	YES;	Brand Name:	ECHO;
Function:	FILLING,Labeling,COATING,sealing,weighing/printing;	Port:	shangbai/ningbo china port;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Engineers available to service machinery overseas;	Machine material:	SS304/SS316;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,farms,restaurant,Retail,Food Shop,Food & Beverage Shops;	Place of Origin:	Zhejiang China;
Packaging Type:	BAGS,Pouch,Stand-up Pouch,zipper bag/doybag/doypack/spout bag;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Packaging Material:	plastic,PAPER;	Driven Type:	Electric;
Machine type:	Rotary Pre-made Pouch Packing Machine;	Bag material:	Premade laminated film bag;
Customization:	yes;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
CNC:	YES;	Certification:	CE/IOS9001;
Voltage:	380V 60HZ;	Warranty:	1 YEAR,1 year;
Automatic Grade:	Automatic;	Packaging Detail:	Wooden Box;
Showroom Location:	none;

Main Features

1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

We can customize the suitable one for you according to your requiredment.

Just Tell us : Weight or Bag Size required.

Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

Various bag types are available:All type of heat sealable performed side seal bags,block bottom bags,zip-lock recloseable bags,stand-up pouch with or without spout,paper bags,etc.

The Main Technical Parameters
Model	MR8-200/300RW
Bag Size	Width:80-210/200-300mm, Length:100-300/100-350mm
Filling Volume	5-2500g (Depending on type of products)
Capacity	30-60bags/min (The speed depends on type of products and packaging material used) 25-45bags/min (For zipper bag)
Package Accuracy	Error≤±1%
Total Power	2.5KW (220V/380V,3PH,50HZ)
Demension	171015051640 (LWH)
Weight	1480KGS
Compress Air Requirement	≥0.8m³/min supply by user
We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required.

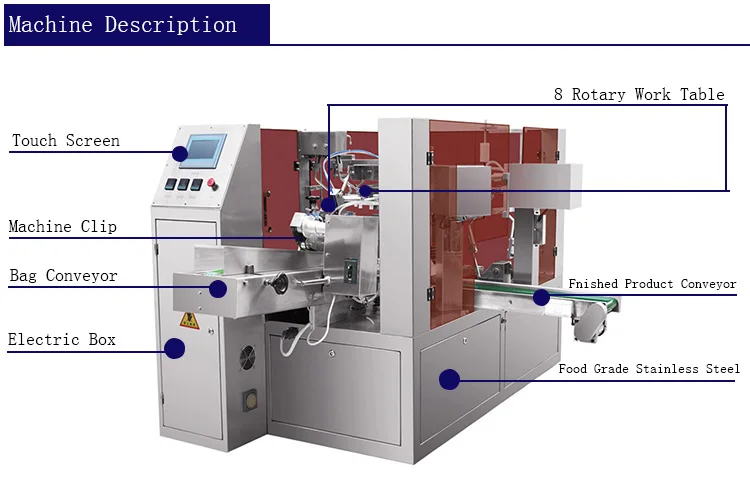

Parts of Machine
Parts	PLC	Touch Screen	Frequency Conveter	Vacuum Pump	Printer	Main Motor	Temperature Controllor	Proximoty Swith	Magnetic Value	Cylinder
Brand	SIEMENS	SIEMENS	TOSHIBA	ORION	SHENG LONG	EVERGEAR	AISET	OMRON	FESTO	AIRTAC
Oringin	Germany	Germany	Japan	Japan	China	China	China	Japan	Germany	China
Can replace parts as needed

Work Process
Safety Measures	1.no bag feeding, no filling and no sealing. 2.no bag opening/open error, no filling and no sealing 3.no filling, no sealing
Product Process	Station 1 Bag Feeding Station 2 Date Printing (option)and Open zipper bag Station 3 Open bag Station 4 Filling Materials Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing Remark:No.5.6.7.Stations are based on customer requirements for adjusting. Station 8 Heat Sealing and Product Output
Stations are based on customer requirements for adjusting.

Our Services

Pre-sale Service

1. Equipment model selection;
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.

5. Acceptance of the product;
6. Assist the client in drafting the construction plan;

Medium-sales Services
ECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service

1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.

Company Address:

No. 81, Dongsan Road, Nanbin Street, Ruian City, Zhejiang Province,China

If You Would Like To Visit Our Just Now,Plese Contact Us and We Will Arrange a Special Bus To Pick You Up.

Kindly Reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

ECHO MACHINERY is still developing, and the products are also being innovated.

Welcome our old and new customers to visit our factory and make the consultation.

We will provide professional packaging solutions for you!
