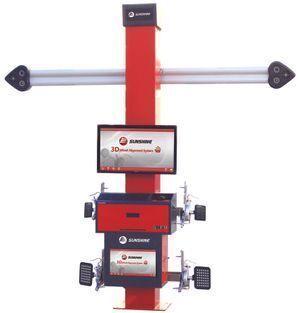

3D wheel aligner ,Sunshine alignment, top automatic tracking model S-F9

Product details
Post height:adjustable;Single package size:80X75X65 cm;
Max. Wheel Weight:200;Place of Origin:Shandong China;
Single gross weight:300.0 KG;Power Supply:220V/380v;
technology:3D;Selling Units:Single item;
Packaging Detail:Each set packed in 4 wooden boxes;Brand Name:Sunshine;
Balancing Speed:24;Package Preview:;
color:customer request;Warranty:24;
Power:3kw;Model Number:S-F9;
Product Description


  Characteristics of 3D Wheel Alignment

3D cameras alignment—----Based on the car and not influenced by the platform


Measurement system—-----Equipped with double digital cameras and four target disk, supplying revolutionary measurement mode


Target disk—-------------------There is no electronic components, so the wheel alignment will not has a component failure problem.


Equipment Calibration ------- once calibration before delivery, workable immediately after installation, no need for periodic calibration


Measurement progress—----no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth


Software system——---------Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners


Daily Maintenance—------Easily maintenance , download and upgrade freely for the model data

Software Features
 Basic Functions:

parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle

Extension Functions:

1.Axis deviation measurement

2.Wheel deviation measurement,


4.Single-wheel measurement.

5.The vehicle lift measurement.

6.Steering wheel align function,

7. Alignment platform levelness testing function,

8.Engine bay adjustment.,

9.Lock Toe measurement

10. Toe curvature measurement,

11.Ride height measurement ,

12.Air suspension vehical alignment software(proprietary software),

13Rolling Radius Measurement

14Scrub Radius Measurement

15.Wheel distance measurement

16.Axis distance measurement

Packaging & Shipping

 by plywood cases ,one sets packed in 4
