1 Channel Power Class D Amplifier Car Class D Monoblock Amplifier 2500Wrms Car Audio Amplifier
- 100.00 >=300 pieces
| Size: | 449.5x158x56mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Voltage: | 12V; | Place of Origin: | Zhejiang China; |
| Function: | Truck Audio System; | Product name: | Class D Amplifier; |
| Channel Separation: | 1 Channel; | Port: | SHANGHAI; |
| Impedance: | 2 Ohm; | SNR: | 75 - 90dB; |
| Packaging Detail: | INNER BOX + CARTON; | Frequency Range (Hz): | 10HZ~80HZ; |
| Brand Name: | MA AUDIO; | Model Number: | MAD-2500.1D; |
| Supply Ability: | 10000.0 Piece/Pieces per Month; | Warranty: | 12; |

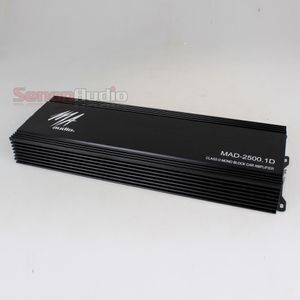

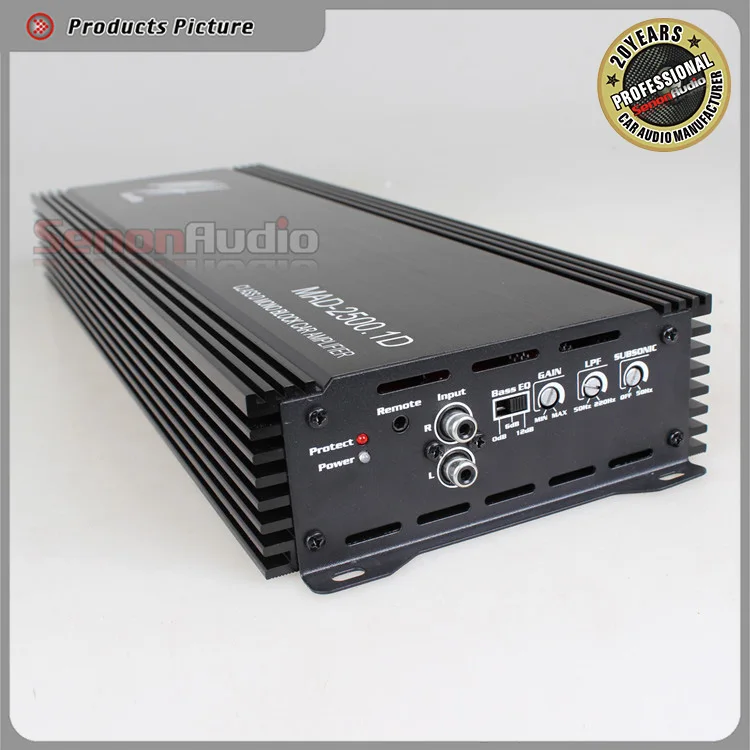

1 Channel Power Class D Amplifier Car Class D Monoblock Amplifier 2500Wrms Car Audio Amplifier
-
MODEL: MAD-2500.1D
Rated power output
- RMS power @ 4 ohm
800Watts x 1
- RMS power @ 2 ohm
1400Watts x 1
- RMS power @ 1 ohm
2000Watts x 1
Working impedance
1 ohm stable
Input Sensitivity
6V ~ 0.2V
Low Pass Filter
50Hz ~ 220Hz
Subsonic Filter
Off ~ 50Hz
Bass Boost
6dB / 12dB
Frequency Response
20 ~ 250Hz
Signal to Noise Ratio
85 <
Efficiency @ 4ohm
Over 90%
THD @ 4ohm
< 0.1%
Damping Factor
150 <
Fuse Rating
200A
Dimensions ( L inches )
17.71 inches (L) X 6.30 W x 2.20 H inches
1.Sample will be accepted as each size of 1-2pcs but paid, the customer will pay the courier freight as our cooperated DHL or FedEX.
2.The sample will be prepared at around 15-20days after get the sample order cost.
3.The sample prepare will be made as custom specification that negotiated.
