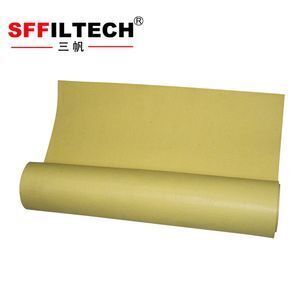

Needle punched air conditioner filter cloth P84 air filter roll

Supplier: Shanghai Filterbag Factory Co., Ltd.
Region: Shanghai, China
Contact: Ms amily li
Price: $5.00 / >=50 square meters
Min. Order: 50 square meters

Click here to contact

Product details

Delivery Detail:	7working days after confirmed order;	Place of Origin:	Jiangsu China;
Type:	Non-woven Filter;	Performance:	No melting point;
Application:	Industry;	Usage:	Dust Filter;
Brand Name:	SFF;	Common weight:	500gsm;
Max temperature:	260 Degree Celsius;	Model Number:	SFF-P84;
Supply Ability:	20000 Square Meter/Square Meters per Day;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Color:	Yellow;	Packaging Detail:	Roll;
Material:	polyimide;	Special treatment:	PTFE membrane, anti-static;
Maximum weight:	600gsm;	Port:	Shanghai;
Working temperature:	240 Degree Celsius;

Needle punched air conditioner filter cloth P84 air filter roll

Brief introduction of P84 air filter roll:

Needle punched felt P84 air filter roll is with cross section structure (leaf shape), has large filtration area and excellent filtration performance. We provide the high quality P84 air filter roll at the competitive price. The P84 air filter roll could be customized made. For more information about P84 air filter roll, please contact us sales3 at sffiltech.com.

1:Application of P84 air filter roll: coal-fired boiler, cement, waste incineration

2:Advantage of P84 air filter roll:

Fire resistance

High temperature resistance

Excellent abrasion resistance

Treatment: Singed, calendered, heat set, anti-static, water and oil repellent, PTFE dipping, coating and membrane

3: Specs of P84 air filter roll:

Specifications of P84 air filter roll:

Construction	Needle felt
material: :	P84
Srim support:	P84
Felt Area Weight	500g/m²(±5%)
Thickness	2.1mm
Mean Air Permeability	10-15m3/m2/min at 12.7mmH₂O
Breaking Strength-MD(warp)	800 N / 5cm
Breaking Strength-CMD(weft)	1200 N / 5cm
Breaking Elongation( N/5cm)-MD(warp)	5%
Breaking Elongation( N/5cm)-CMD(weft)	30%
Dry Shrinkage MD(240℃warp)	<1%
Dry Shrinkage CMD(240℃weft)	<1%
Operating Temperatures	240-260 deg C
Recommended Maximum Continuous	240 deg C
Recommended Maximum Surge	260 deg C
Finish	Singed,calendered,heat set

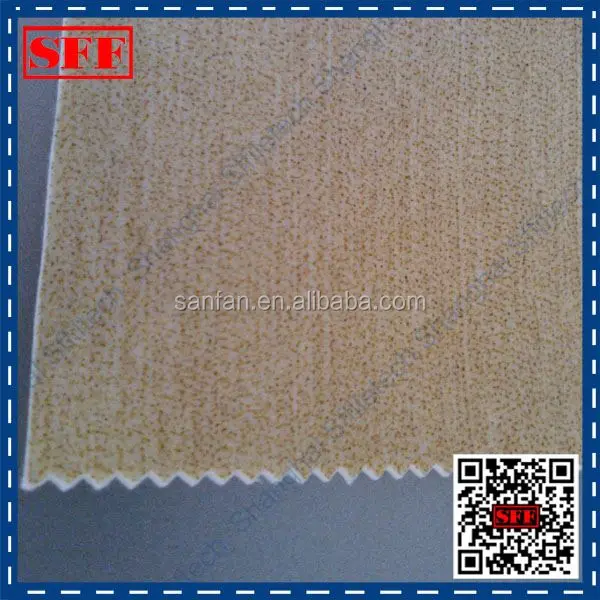

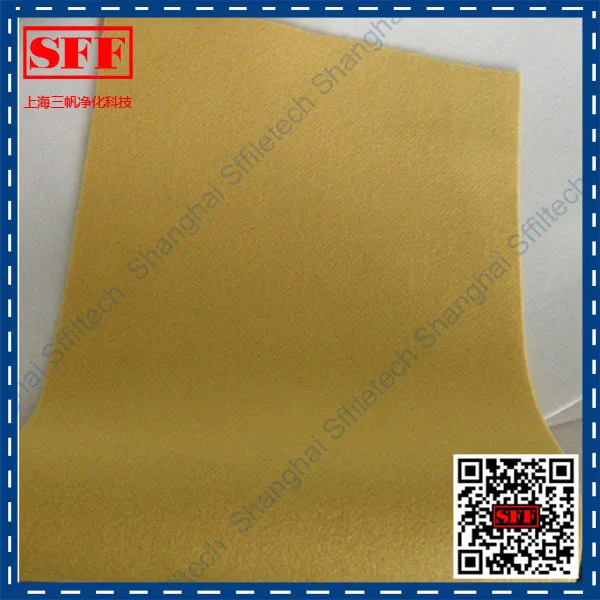

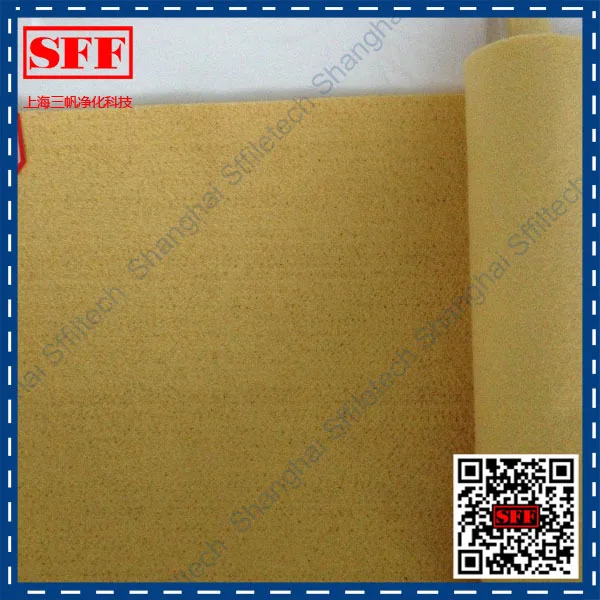

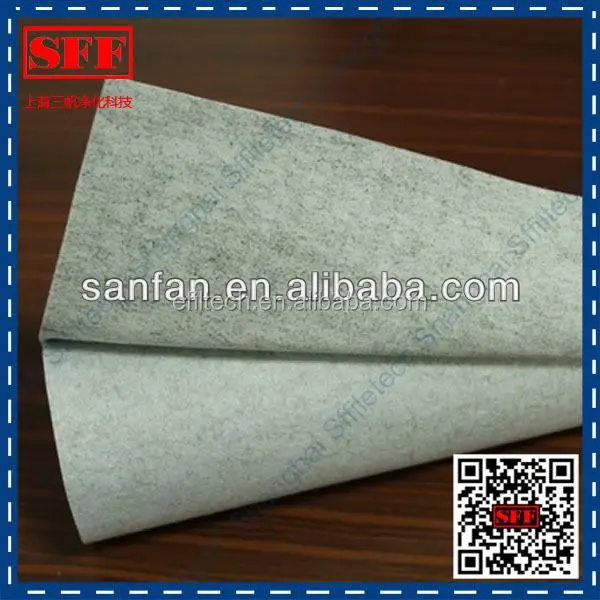

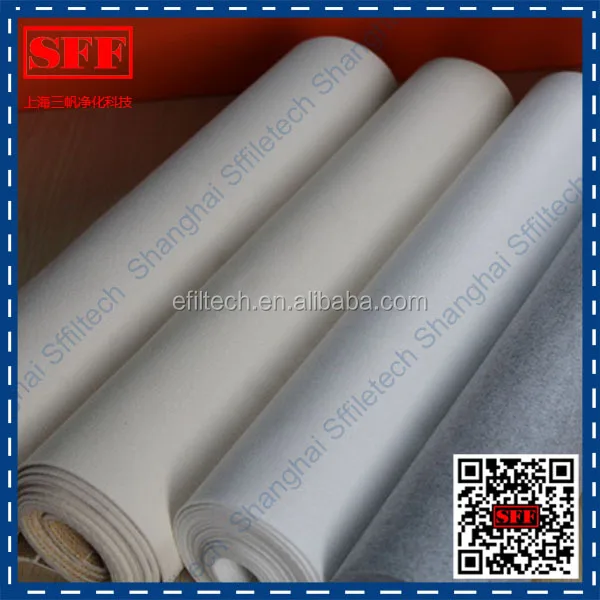

Images of P84 air filter roll:

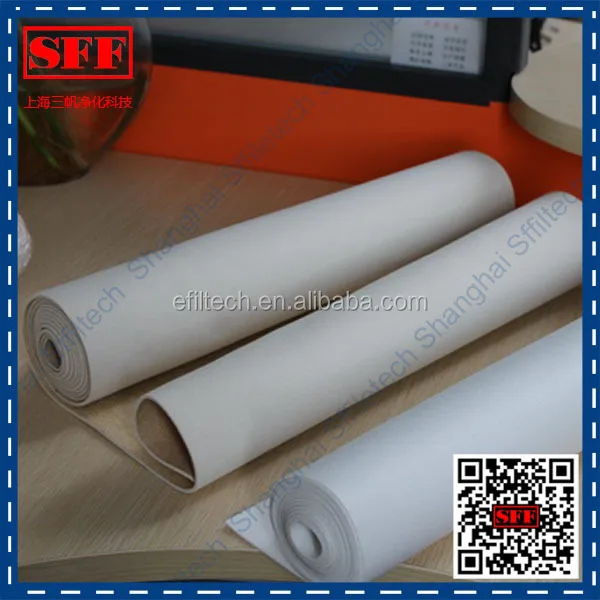

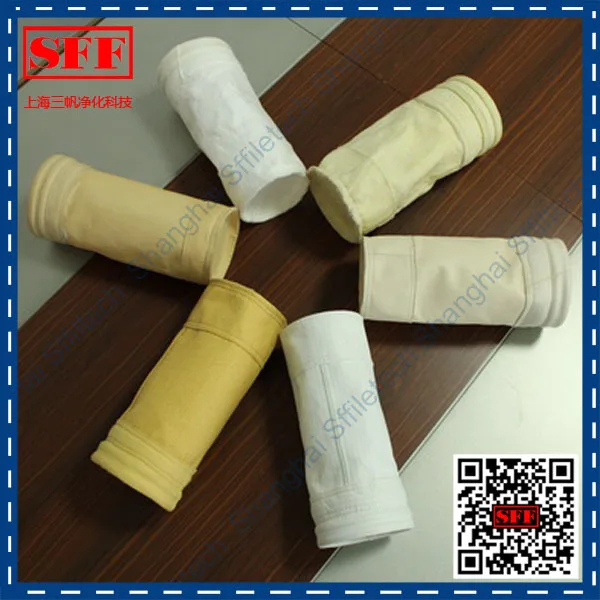

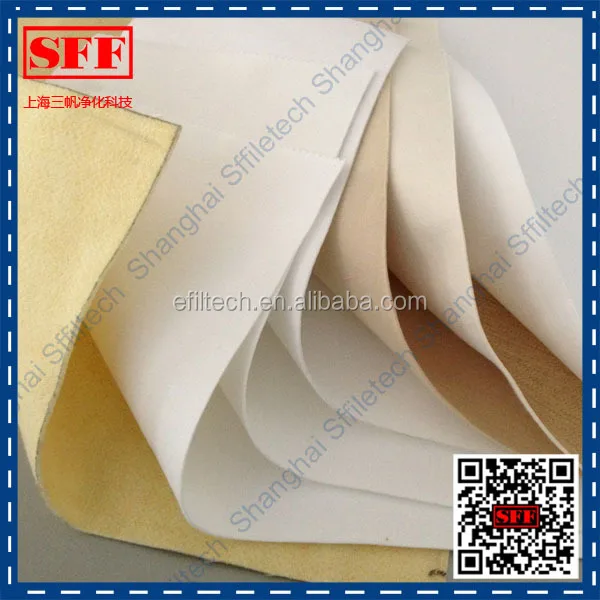

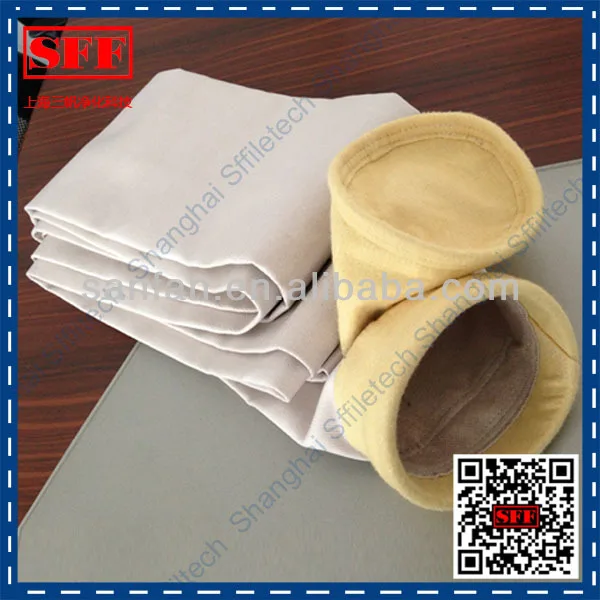

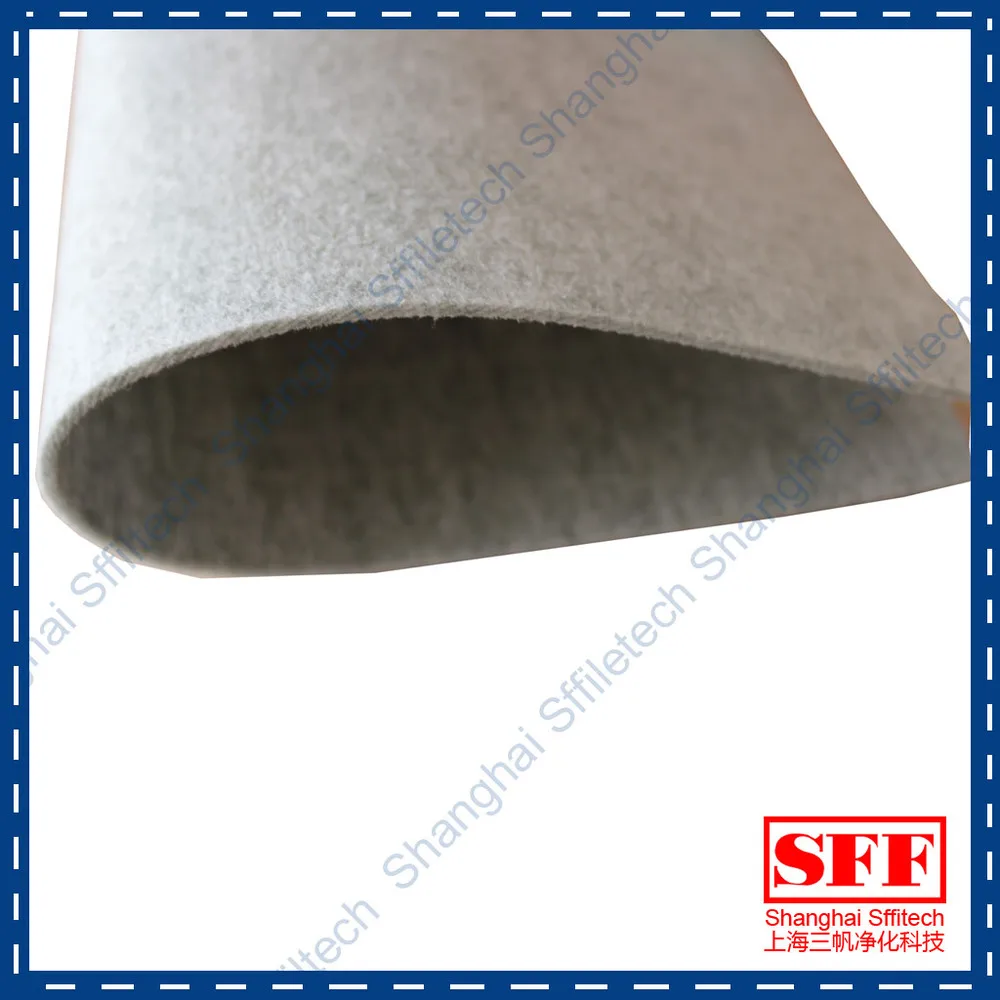

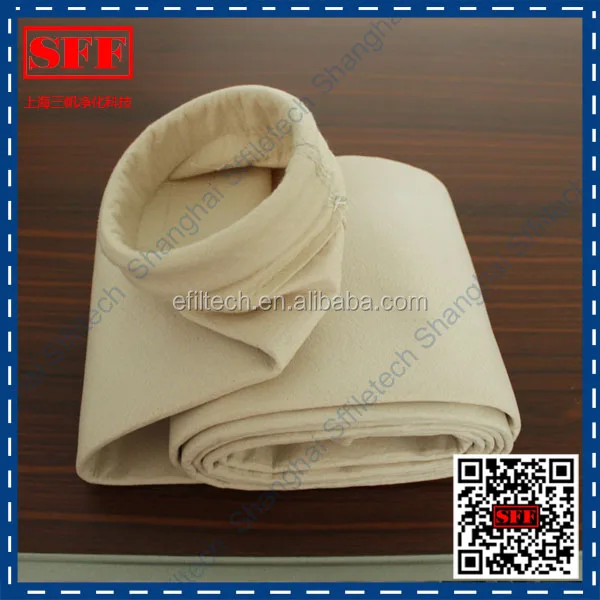

Related images of P84 air filter roll:

Packing&Shipping of P84 air filter roll:

Common weight of P84 air filter roll:500gsm

Maximum width of P84 air filter roll:3.4m

Normal width of P84 air filter roll:2.1m ~ 2.2m

Length per roll of P84 air filter roll: 50m-100m,or as customer’s request

Delivery of P84 air filter roll: generally 20000sqm within 7 working days

Port of shipment of P84 air filter roll: Shanghai

About us:

Shanghai filterbag factory Co., Ltd. which is one of the leading & professional companies on the dust filtration & separation products in China,including P84 air filter cloth roll. Our company have six production lines of needle punched felt equipment, hundreds of filter bag sewing machines, 300 hundred fiberglass weaving equipments. We are specialized in supply needle punched felt, fiber glass and some other woven filter fabrics, dust filter bags, liquid filter bags, filter cages, liquid filter housing and other related filters. For more infomatiom, you could visit http://www.sffiltech.com/about.html.

FAQ:

1: Can P84 air filter roll be welded?

A: No, P84 air filter roll can not be welded since it has no melting point.

2: What is the anti-static treatment of P84 air filter roll?

A: There are antistatic wire and antistatic blending put in the fabric to be static-free.

3:What is the payment of P84 air filter roll?

A:We prefer T/T and L/C.

4:Can you provide a sample of P84 air filter roll?

A: Yes, we can provide the sample of P84 air filter roll, but customer have to pay for the postage.

5:What is the normal treatment of P84 air filter roll?

A: Singled, Calendered and Heat Set.
