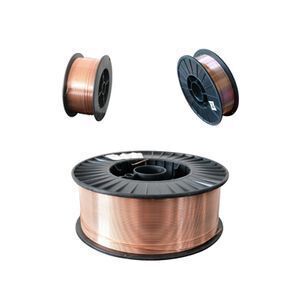

ER70S-6 ER 60S-6 CO2 Gas Protection Welding Wire 0.8mm 1.0mm 1.2mm price

Product details
Dimensional tolerances:0.01-0.02mm;spool materials:plastic/ metal for copper coated wire;
Flux Content:International Standard;Use type:mig torch for copper coated wire;
Copper width:0.03micrometer;Expansion index:≥300mm;
Weight tolerances:0.05kg/spool;Brand Name:OEM;
Quality:Class A for copper coated wire;Product name:copper coated steel ER70S-6 high tensile strength welding wire price;
Model Number:ER70S-6 for copper coated wire;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal for copper coated wire;
Supply Ability:5000 Ton/Tons per Month;Packaging Detail:15kg/spool , 72spool /pallet 22pallets/20ft container for copper coated steel welding wire ER70S-6;
Place of Origin:Jiangsu China (Mainland);Raw materials:Bao steel Zhongtian steel;
Port:shanghai Qingdao ningbo tianjing;Weight:1kg,5kg,15kg,17kg,18kg,20kg;
Application:construction machine;Melting Point:Standard Melting Point;
Product Description

CertificateCE ISO9001, ABS,LR,CCS,DB ,TUV.etc
Packing Details

Packing Size: 275mm* 275mm* 105mm 300mm*300mm*105mm

Outer Packing:1spool/ctn

Every spool product is strongly packed by carton box with antirust paper inside.

Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft

MOQ1 Pallet
Warranty1 year
PaymentT/T,L/C,D/P, Western Union

Features:

ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

Application:

Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

Conform with:

GB/T ER50-6 DIN SG2 JIS YGW12

AWS ER70S-6 BS A18 EN G3Si1

+
Package
SpecificatonWire TrayWeight
Φ0.6~1.6mm

D100mm D200mm

D270mm D300mm

K300mm

1kg 5kg 20kg 250kg


+
Wire Chemical Composition(%)
CMnSiPSCrNiCu
0.06~0.151.40~1.851.80~1.15≤0.025≤0.035--≤0.50
+
Deposited Metal Mechanical Properties

Yield Strength

σ0.2(Mpa)

Tensile Strength

σb(Mpa)

Elongation

δ5%

AKV Imapact Energy

(J)(-40℃)

≥420≥500≥22≥90
+
Diameter of wire(mm) welding current(A)
Φ1.0Φ1.2Φ1.4Φ1.6
40~14050~22080~350120~450
+
Matters needing attention:

1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package.

2.Welding shall be removed before welding surface oil, rust,water and other impurities.

3.The CO2 gas protection, CO2gas purity 99.98%.

4.CO2 welding protective gas flow rate should be controlled at 20~25L/min.

5.Wire extension length should be controlled in the range of 15~25mm.

More

Packaging & Shipping

Packing Size: 275mm* 275mm* 105mm or 300mm*300mm*105mm

Outer Packing:1 spool/ctn.Every spool product is strongly packed by carton box with antirust paper inside.

Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft





Company Information

RHK TECH was established in 2011 as a professional partner of European distributors.
With extensive experience in manufacturing industry, We gradually grow into the best provider of welding consumables, labour protection products, abrasives and other welding related products for steel fabrication, shipyard and so on.
RHK offers rapid and accurate quotation, high quality products, timely delivery, and excellent after-sales service.
Our aim is to achieve reciprocity and mutual benefit with customers.





Exhibition and Team



FAQ

Q1:Can I have a sample for testing?

A: Yes, we can support free sample

Q2:Can I add my logo on the boxes/cartons?

A:Yes,OEM and ODM are available from us.

Q3: Waht are the benefits of being a distributor ?

A: Special discount Marketing protection

Q4:Do you have inspection procedures for welding wires?

A:100% self-inspection before packing. We provide Quality Certification for every order .

Q5:Can we mix itmes in one 20ft container?

A: Yes

Q6:Can I have a visit to your factory before the order?

A: Sure,welcome your visit of factory.
