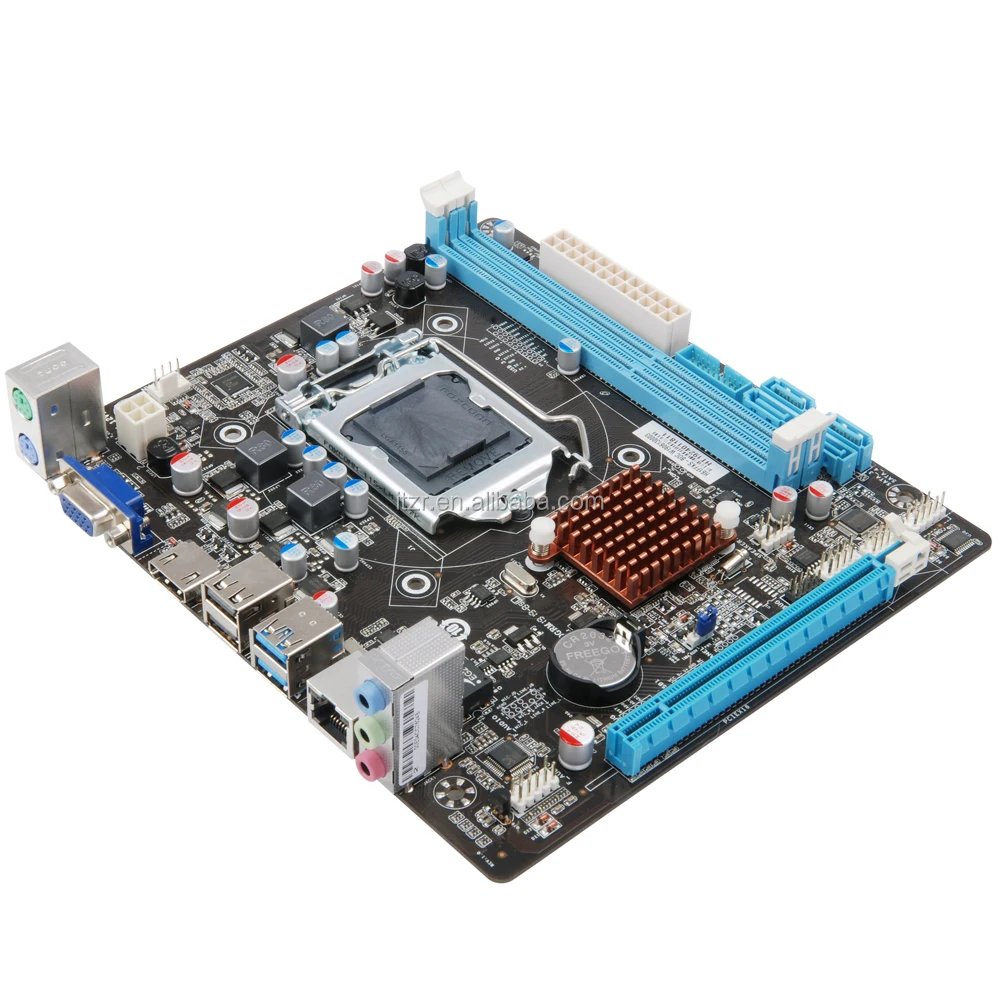

Esonic intel H61 motherboard 1155 socket DDR3 manufacturer

Supplier: Shenzhen ITZR Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Guan
Price: $28.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Maximum Ram Capacity:	32GB;	Item Condition:	New;
Memory channel:	Double;	With CPU:	No;
Socket Type:	1155;	Place of Origin:	Guangdong China;
Graphics Card Type:	integrated;	Application:	Desktop;
Packaging Detail:	20 pcs /carton carton size: 595121 cm;	Memory Type:	DDR3;
Memory Bank:	2 DDR3 DIMM;	Hard Drive Interface:	IDE,SATA;
Package Preview:	;	FSB / HT:	1333/1066 SDRAM;
Brand Name:	Esonic motherboard;	Form Factor:	ATX;
Package:	Yes;	Port:	shenzhen;
Products Status:	New,Stock;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,OA;
Supply Ability:	3000000 Piece/Pieces per Month;	Ports:	ETHERNET,PCI-Express X1,PCI-Express X16,PS2,SATA,USB 2.0,USB 3.0,VGA;
Launch Date:	2009;	Chipset Manufacturer:	intel;
CPU Type:	intel;	Certification:	FCC,ce,ROHS;

supports intel core inside

READY FOR 2ND/3RD GENERATION INTEL CORE LGA1155 PROCESSORS

This motherboard supports 2nd/3rd Generation Intel® Core™ processors in the LGA1155 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR3 memory and PCI Express 3.0/2.0 lanes for great performance.

Intel® H61 is a single-chipset design

supports 2nd/3rd Generation Intel® Core™ LGA1155 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.

Dual-Channel DDR3 1066/1333MHz support

This motherboard supports DDR3 memory that features data transfer rates of 1066/1333MHz providing great performance for 3D graphics and other memory-demanding applications

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

USB 2.0

USB2.0 provides up to 480Mbps data transfer rate, supports hot swap, Compatible with USB 2.0 standard,Easy connection to various USB interface devices.

100M/1000M LAN(OPtional)

Providing high-quality 100M/1000M Ethernet performance to value-oriented consumers, its high-speed, stable features are best suited for today's broadband

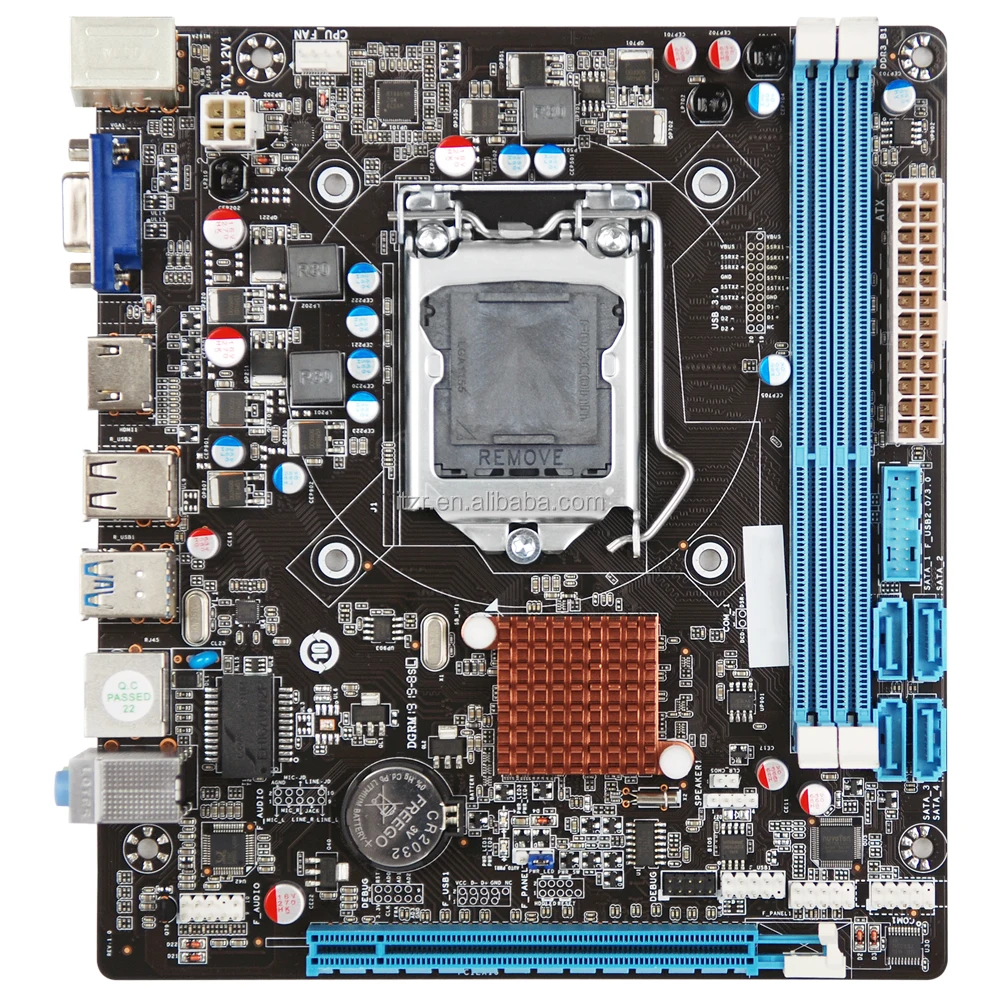

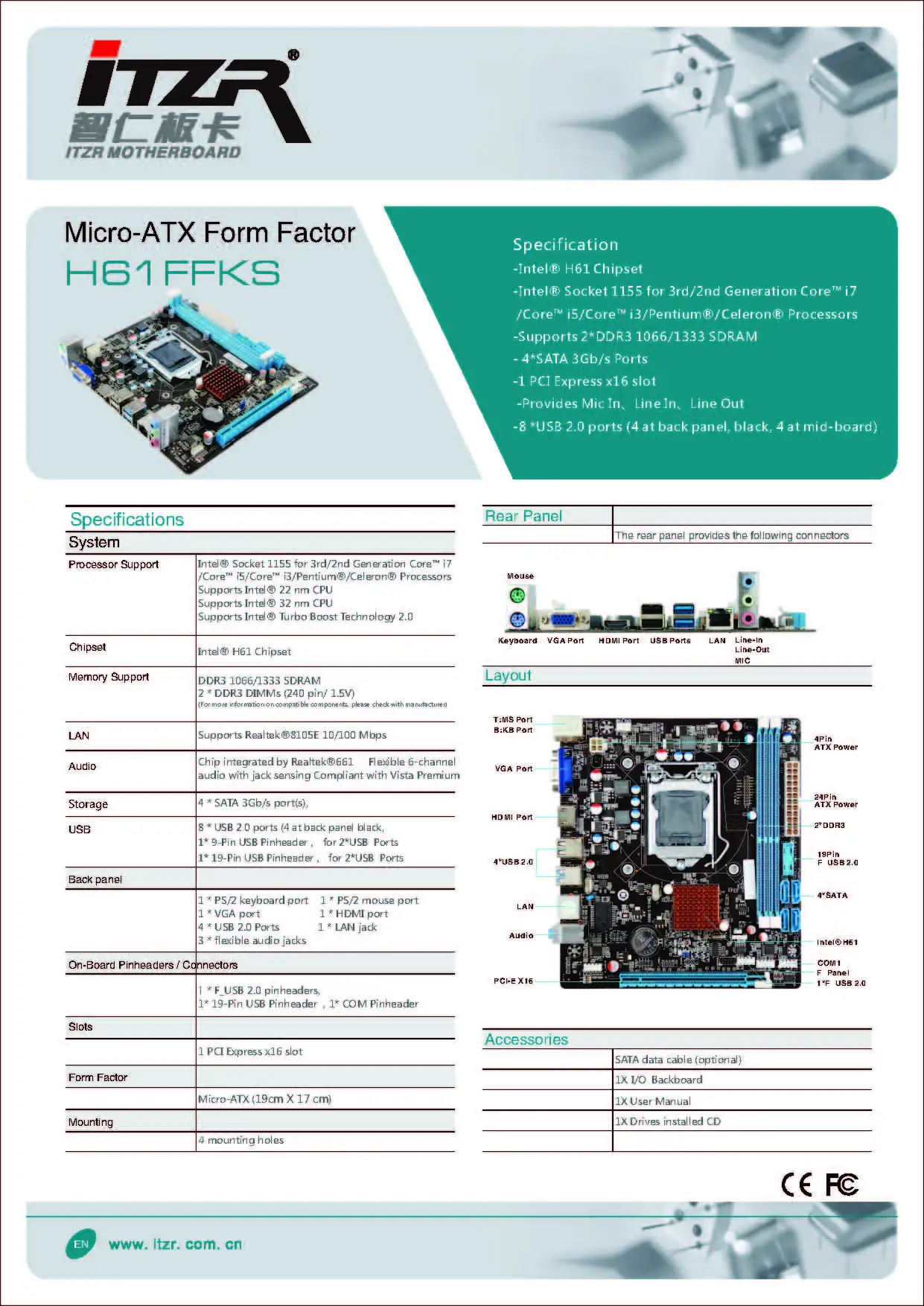

Processor	Support Intel® Socket 1155 for 2nd/3rd Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H61
Memory support	2 * DDR3 1066/1333MHz DIMM
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI / VGA ports
Slots	1 x PCIe x16 slot
Storage	4 x SATA 3Gb/s Ports
LAN	Realtek Chip, 1 x 100M(Optional 1000M)
Audio	Realtek Chip, ALC 662 6-channel audio
USB	8 * USB 2.0 port (4 at back panel, black, 4 at mid-board)
Back Panel I/O	1 x PS/2 Mouse & Keyboard Port 1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 4 x USB 2.0 Ports 3 x flexible audio jacks
Internal I/O	1 x USB 19pin connector, supports 2USB 2.0 ports 1 x USB 2.0 connector, supports 2USB 2.0 ports 4 x SATA 3Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector
Dimension	190 x 170mm
